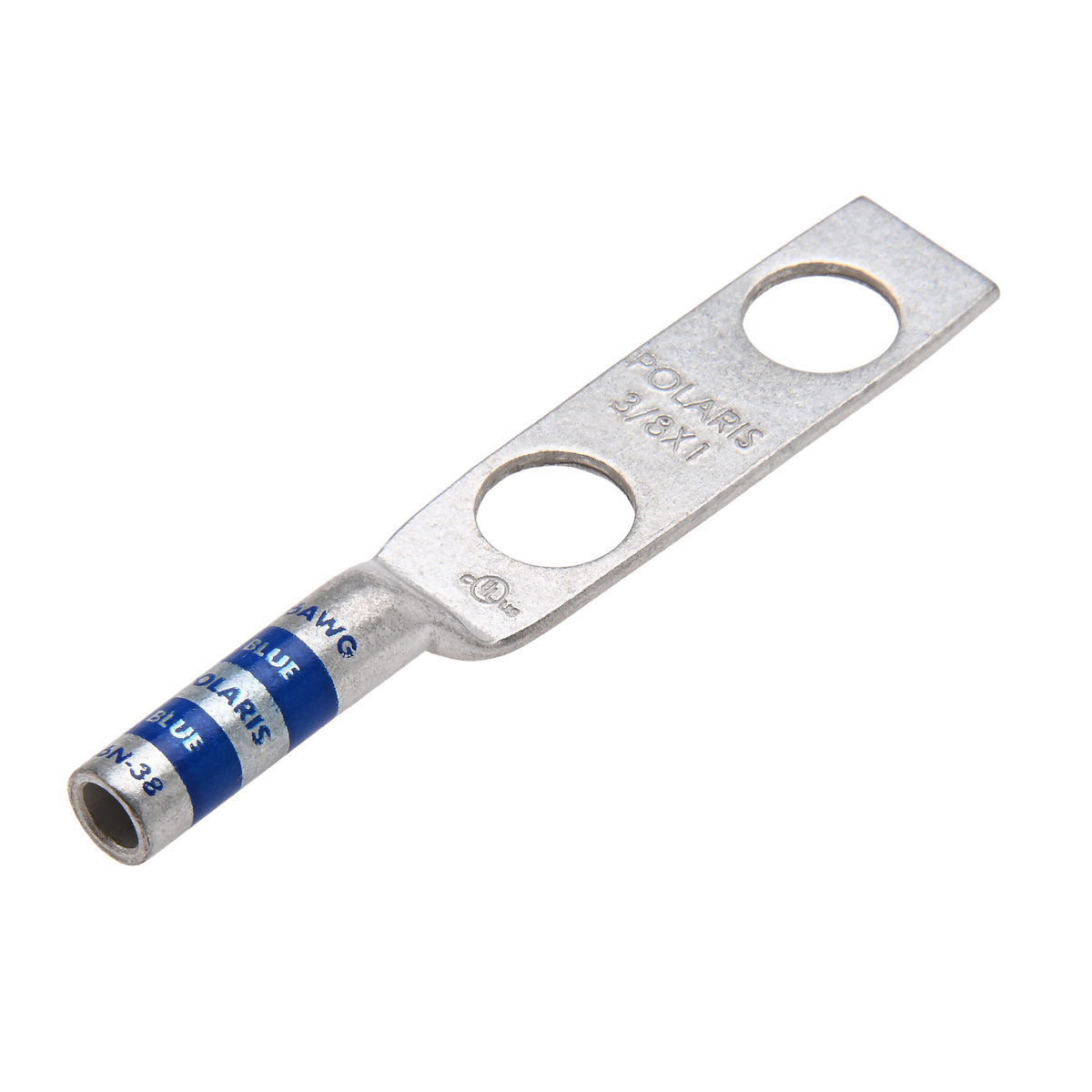

6 AWG 3/8” 2-Hole Copper Long Lug – Blue

#L6N-38

The POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission.

  • High conductivity copper tubing and corrosion resistant tin-plated finish
  • Marked with die index and color coded
  • Flex rated for use with K, H, G, I, M and DLO cable
  • UL/cULus listed and rated for B/C class wire

Product Information

Voltage Rating 600V
Material Copper
Finish Tin Plated
GTIN 662381339300
UPC 662381339300
EAN 662381339300
UNSPSC 39121405
Origin Country IN
Certifications cULus, UL Listed
Ul Standard UL 486A-486B, UL467
Barrel Inside Diameter 0.21
Barrel Outside Diameter 0.3
Ul File No E155027
Wire Cable Class Class B, Class C
Conductor Type Copper
Tang Thickness 0.06
Tang Length 1.81
Temp Rating 90C, 9CU
Mounting Hole Pos 0.38
Hole Count 2
Wire Range 6 AWG
Assortment Copper Compression Terminations
Expanded Wire Range 6 AWG – 8 AWG
Die Color Code Blue
Mounting Bolt Size 3/8
Barrel Length 1
