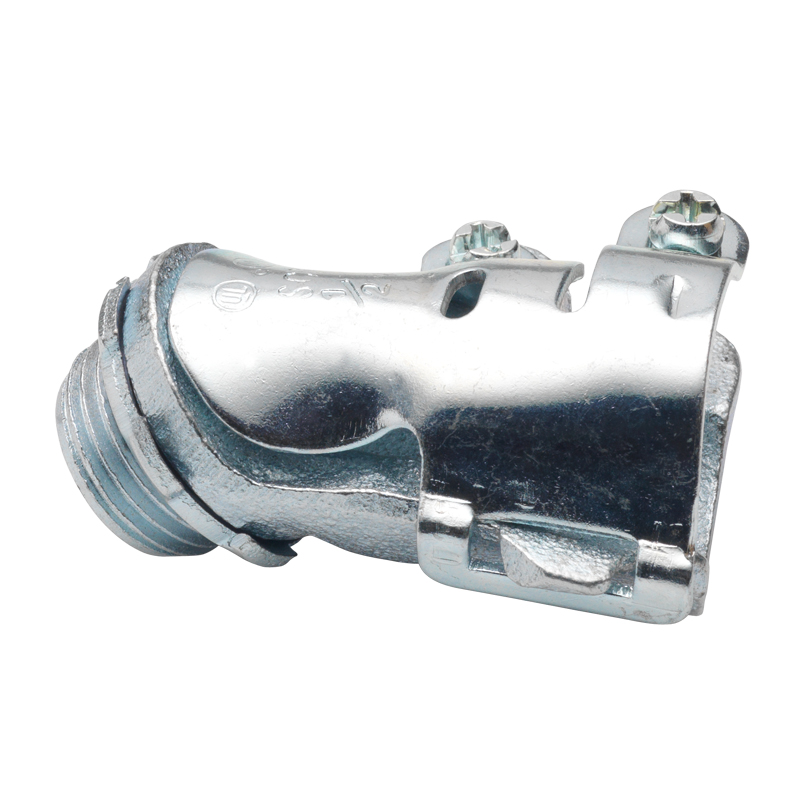

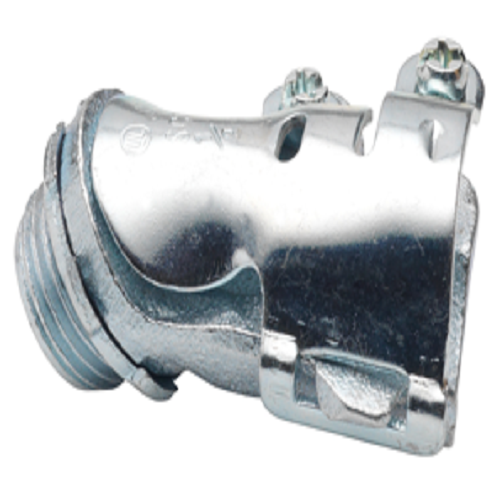

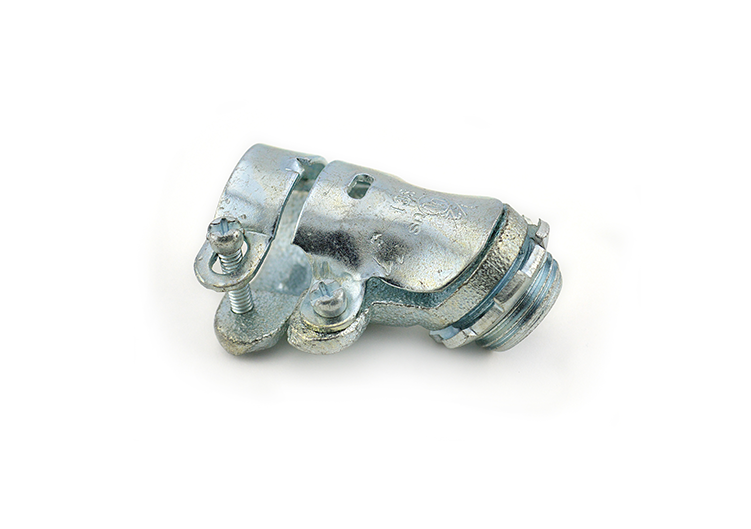

45-Degree Connector 1/2″, Malleable Iron

#803

Use Bridgeport 45-degree connectors to join flexible metal conduit to an electrical box or enclosure at a 45-degree angle. Malleable iron construction allows for heavy-duty applications.

  • Sizing: For use with flex trade size 1/2" FMC when installing through a 1/2" knockout
  • 45-Degree Connections: This connector allows you to connect conduit or cabling to electrical box or enclosure at a 45-degree angle
  • Malleable Iron: Heavy-duty malleable iron has the strength, rigidity, ability to flex without breaking, fracture toughness and impact resistance for use in tough environments
  • Safety Compliance: All Bridgeport squeeze connectors are UL listed and RoHS compliant

Product Information

Material Malleable Iron
Finish Zinc electro-plate
Pack Qty 100
GTIN 00781747008039
UPC 781747008039
EAN 0781747008039
UNSPSC 39121419
Ul Standard UL-514B
Ul File No E9391
Application 45 Degree fitting for connecting flexible metal conduit or armored cable to box or enclosure. Malleable Iron
