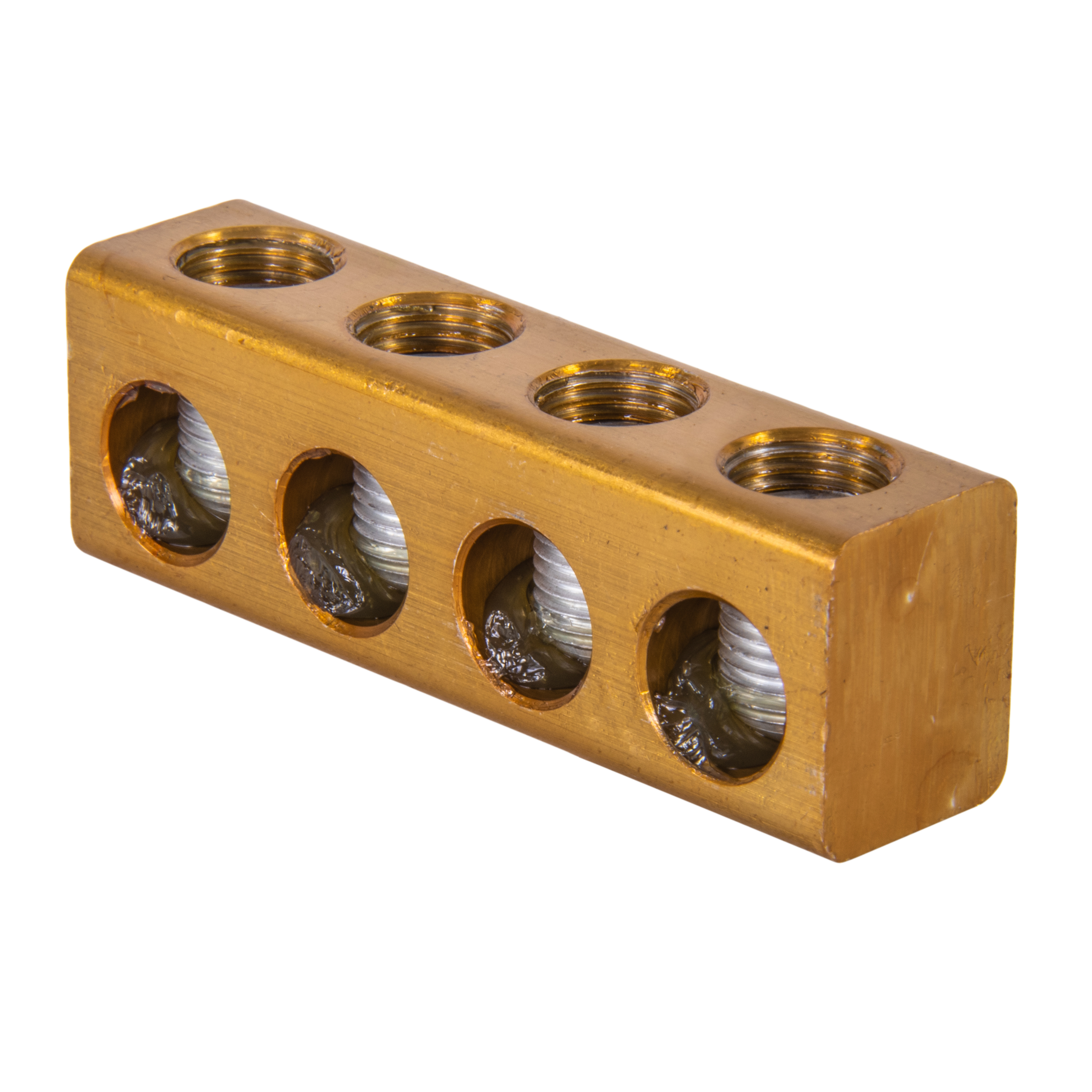

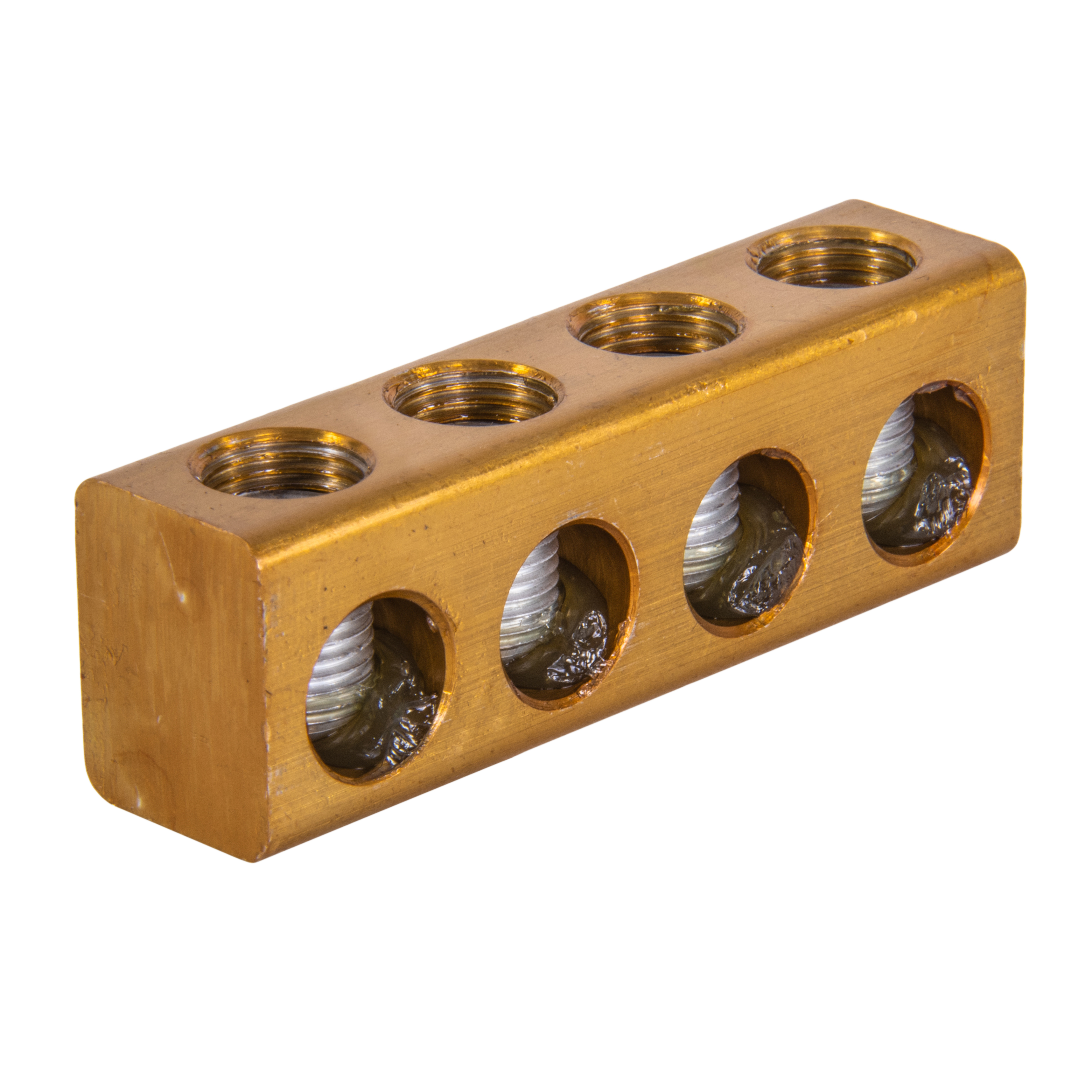

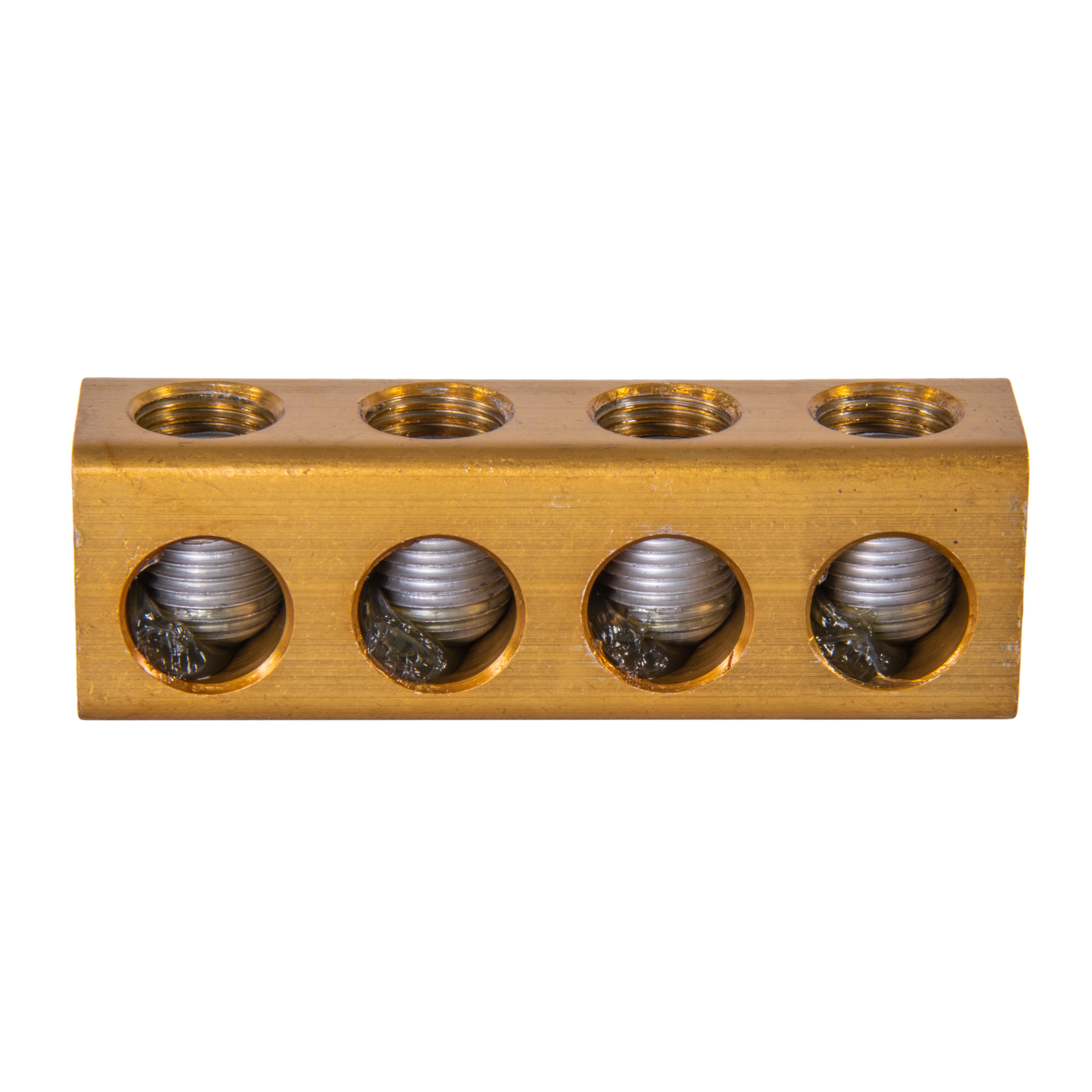

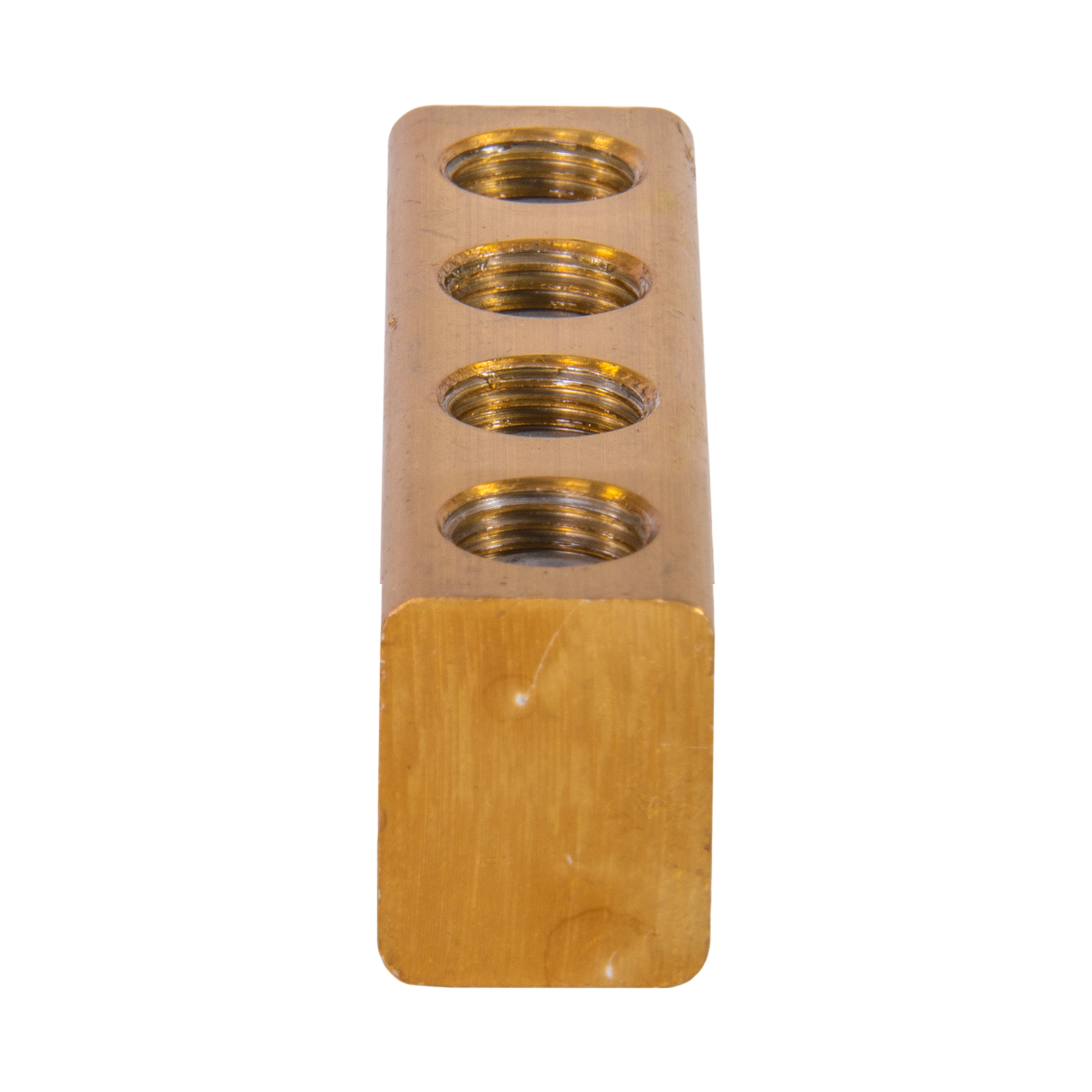

4-Port Uninsulated Multi-Tap Connector, 1/0 – 14 AWG
#PL1/0-4
Polaris Uninsulated Multi-Tap Connectors form secure connections between multiple conductors with an efficient aluminum body plated for corrosion resistance. Installs with a hex key and torque wrench, with no need for cover and taping.
- Uninsulated Simplicity: Form secure connections between 4 conductors quickly using the pass-through entry ports sized for wires between 1/0 and 14 AWG
- Functional Design: Rounded corners and a plated aluminum body make Polaris connectors comfortable to grip and durable for harsh environments
- Tightens Fast: Each entry port features a hex-keyed set screw that can be easily tightened to provide a secure grip on the inserted conductor
- Extreme Voltage: Choose uninsulated connectors for high-voltage connections, with a heavy-duty maximum voltage rating of 2000V
- Best Connections: Aluminum alloy pass-through ports provide low-contact resistance to guarantee a strong connection
Product Information
| Voltage Rating | 2000 V |
|---|---|
| Material | Aluminum |
| Finish | Chromated |
| GTIN | 662381901026 |
| UPC | 662381901026 |
| EAN | 662381901026 |
| UNSPSC | 39121409 |
| Origin Country | US |
| Certifications | cULus |
| Ul Standard | UL 486A/B |
| Ul File No | E186991 |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 135 |
| Cu Conductor Max Amp | 170 |
| Conductor Cu Size Range | 1/0 AWG – 14 AWG |
| Conductor Al Size Range | 1/0 AWG – 12 AWG |
| Conductor Type | Copper, Aluminum |
| Temp Rating | 90C, AL9CU |
| Conductors Count | 4 |
| Hex Wrench Size | 3/16 |
| Assortment | Aluminum Mechanical Splices & Taps |
| Application | Splice, Tap |
| Max Torque | 180 |
