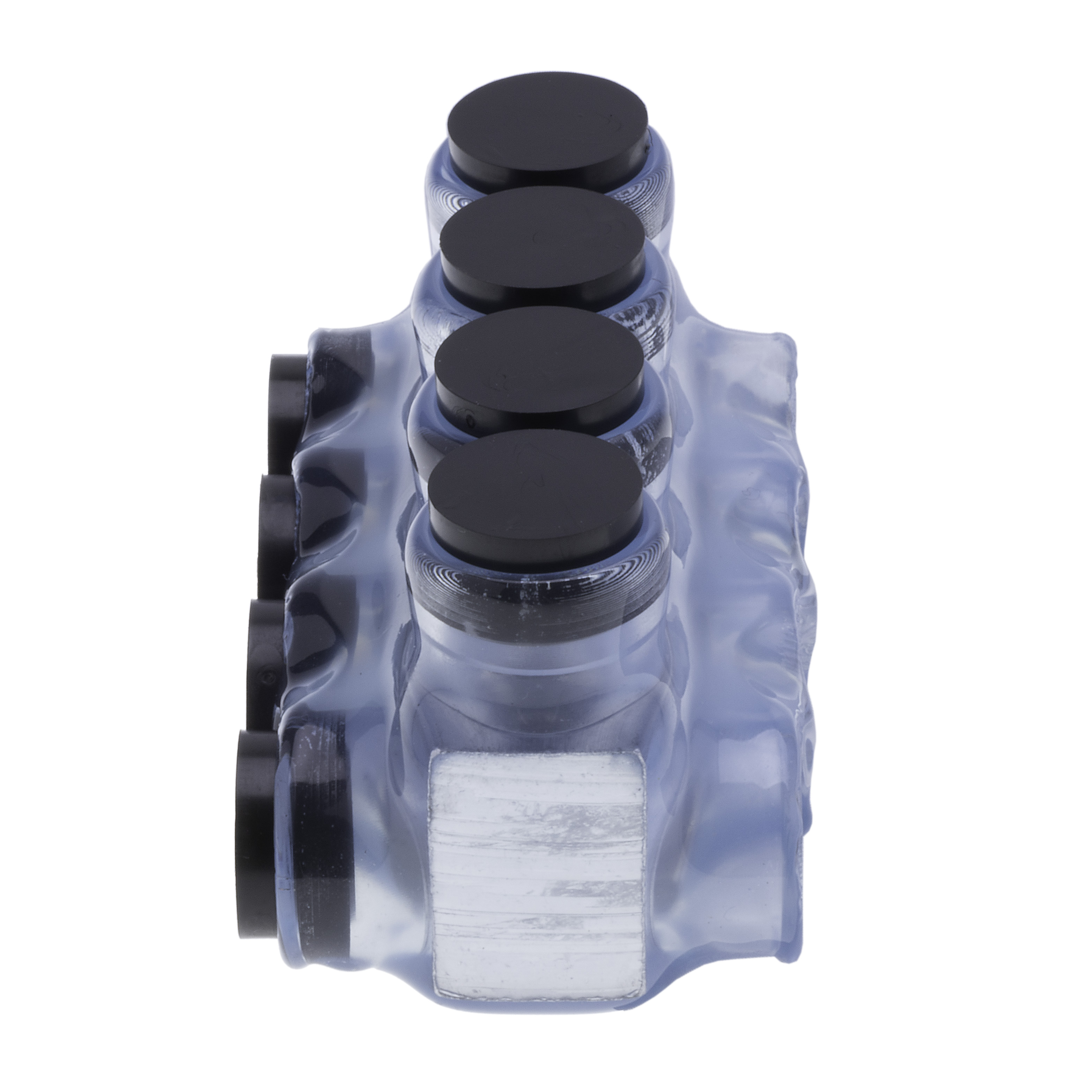

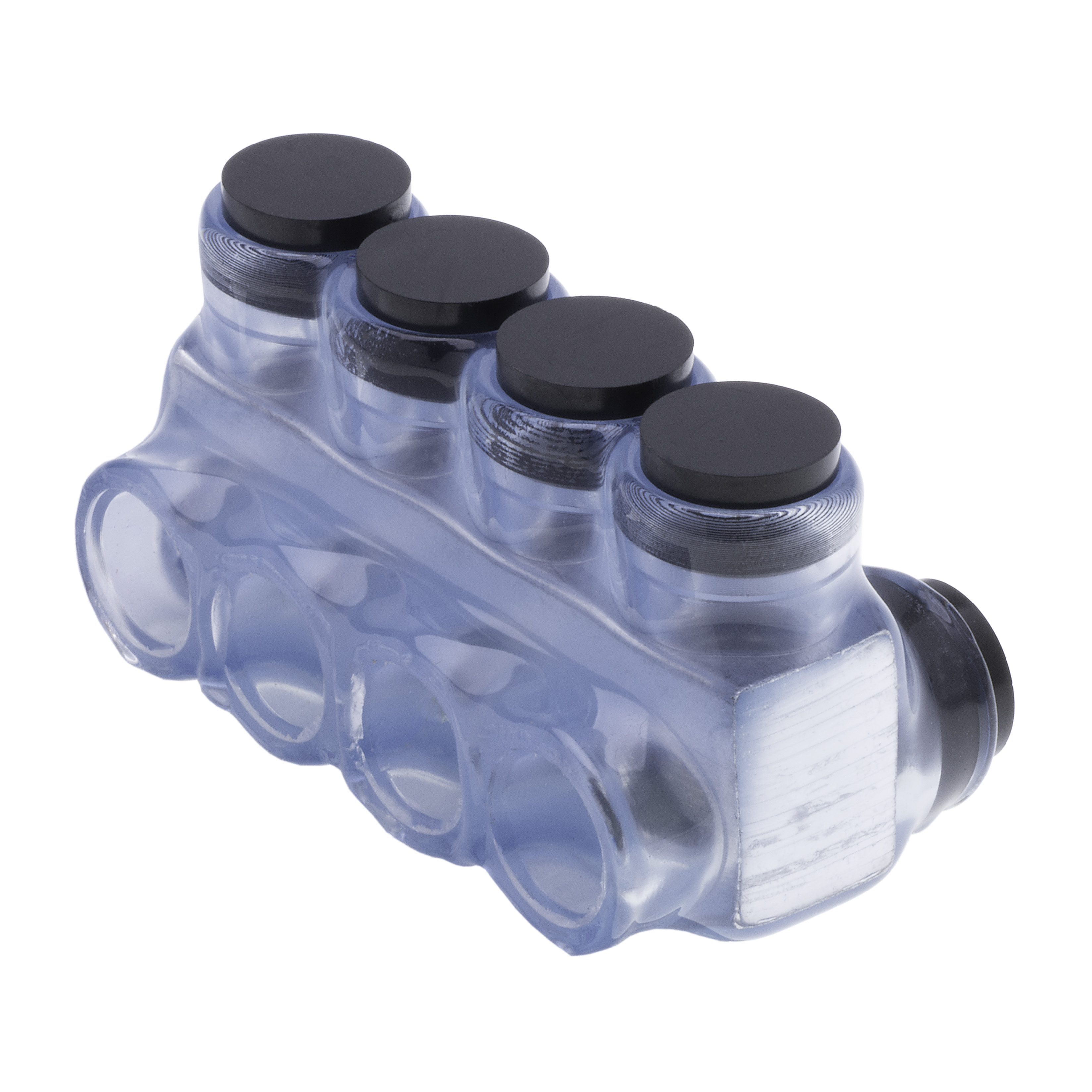

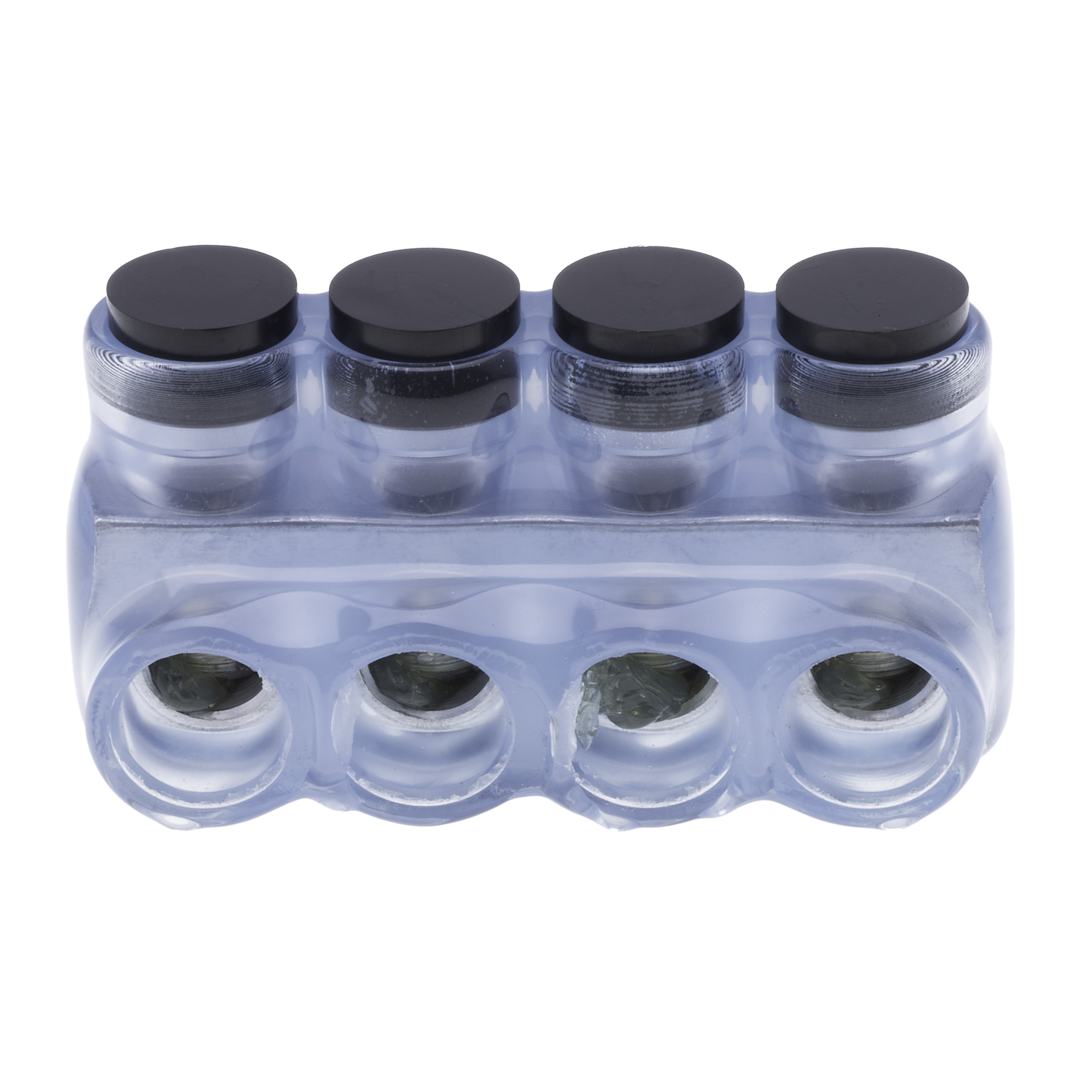

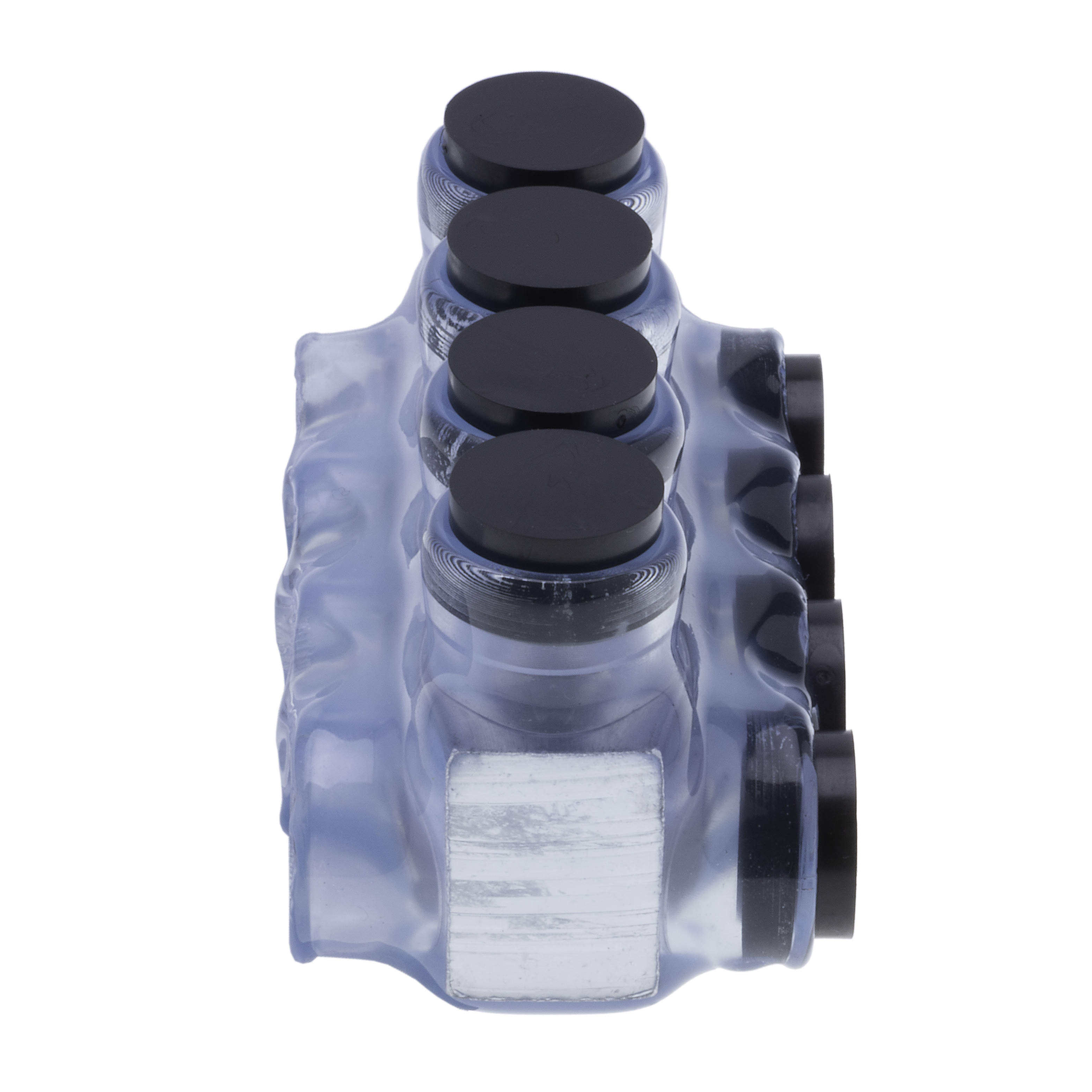

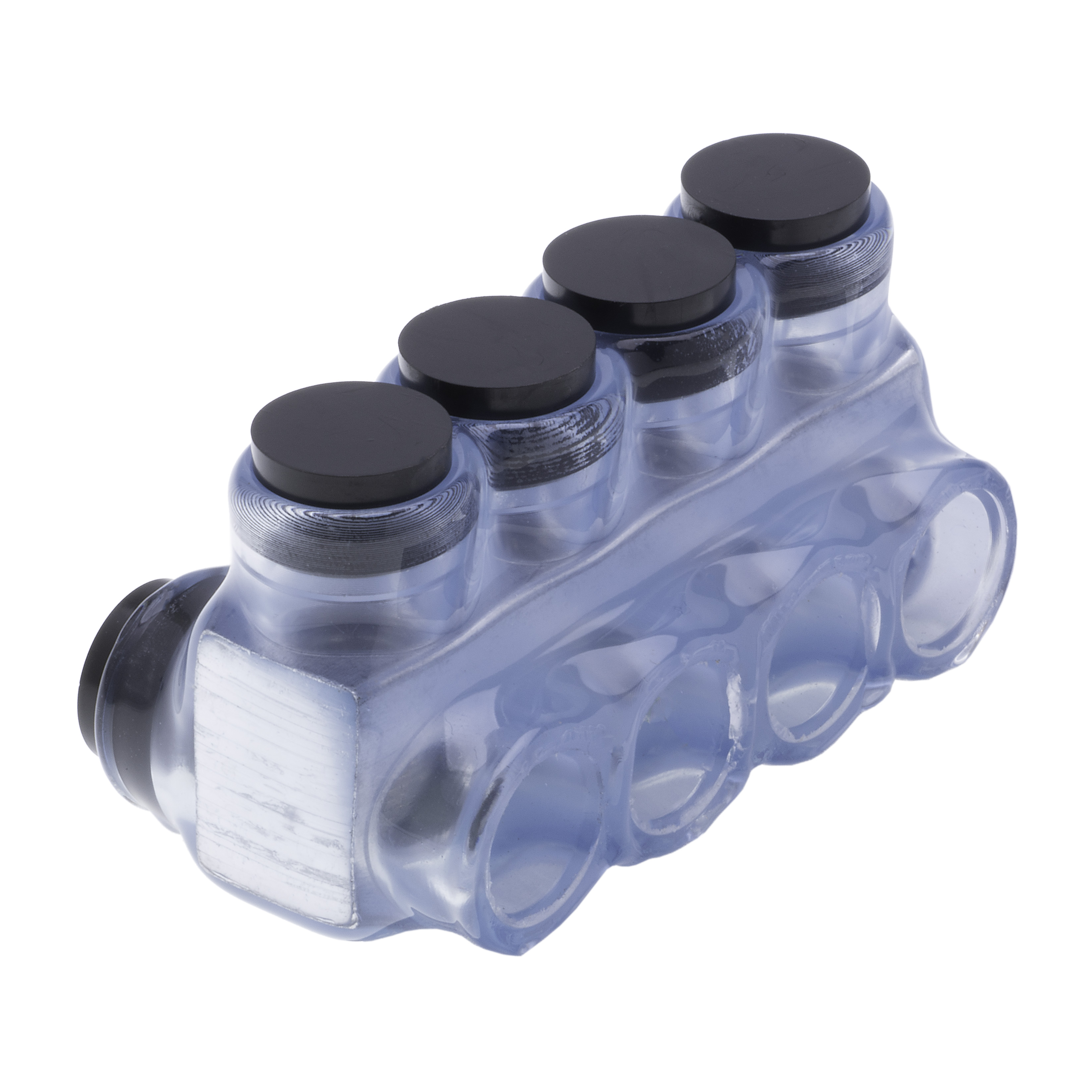

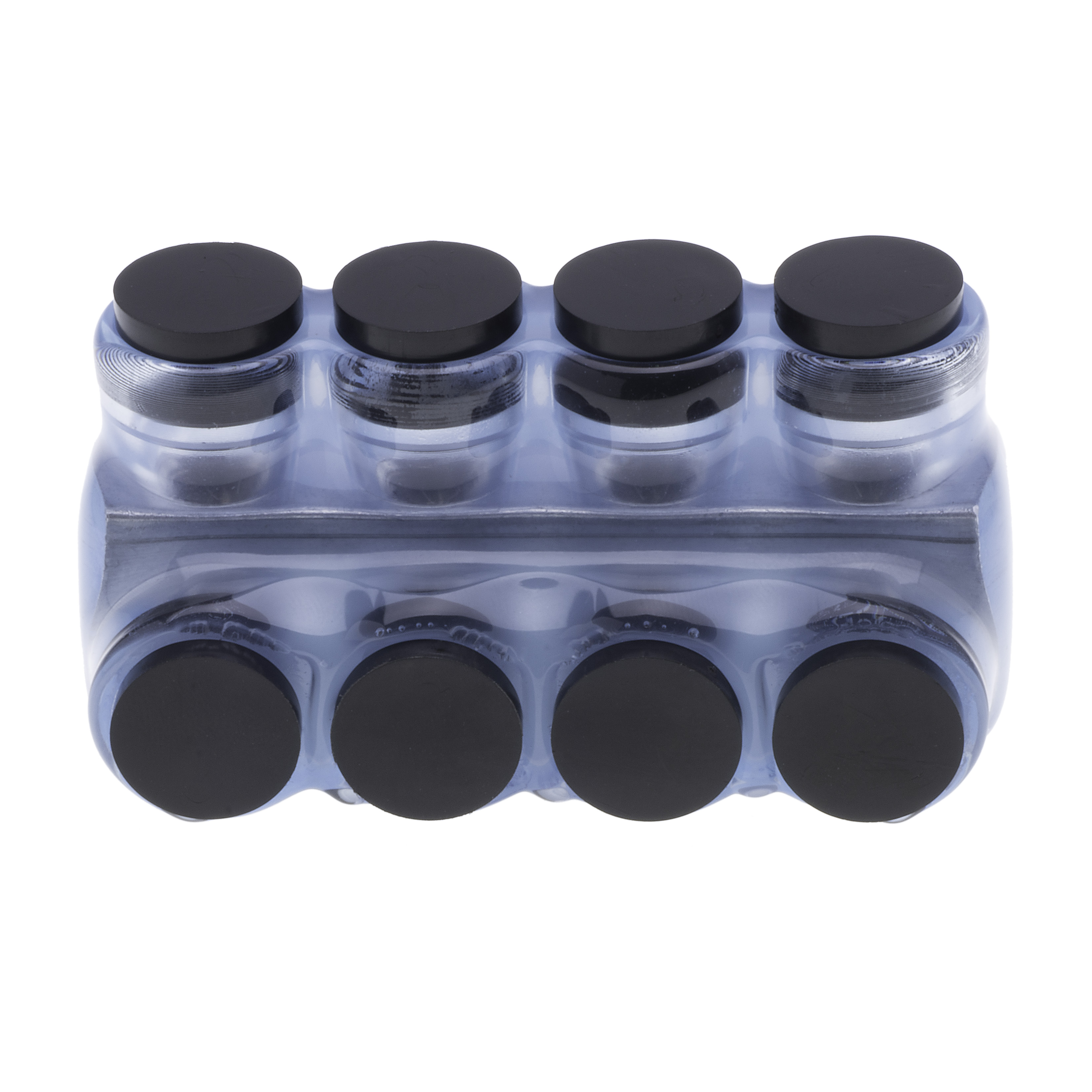

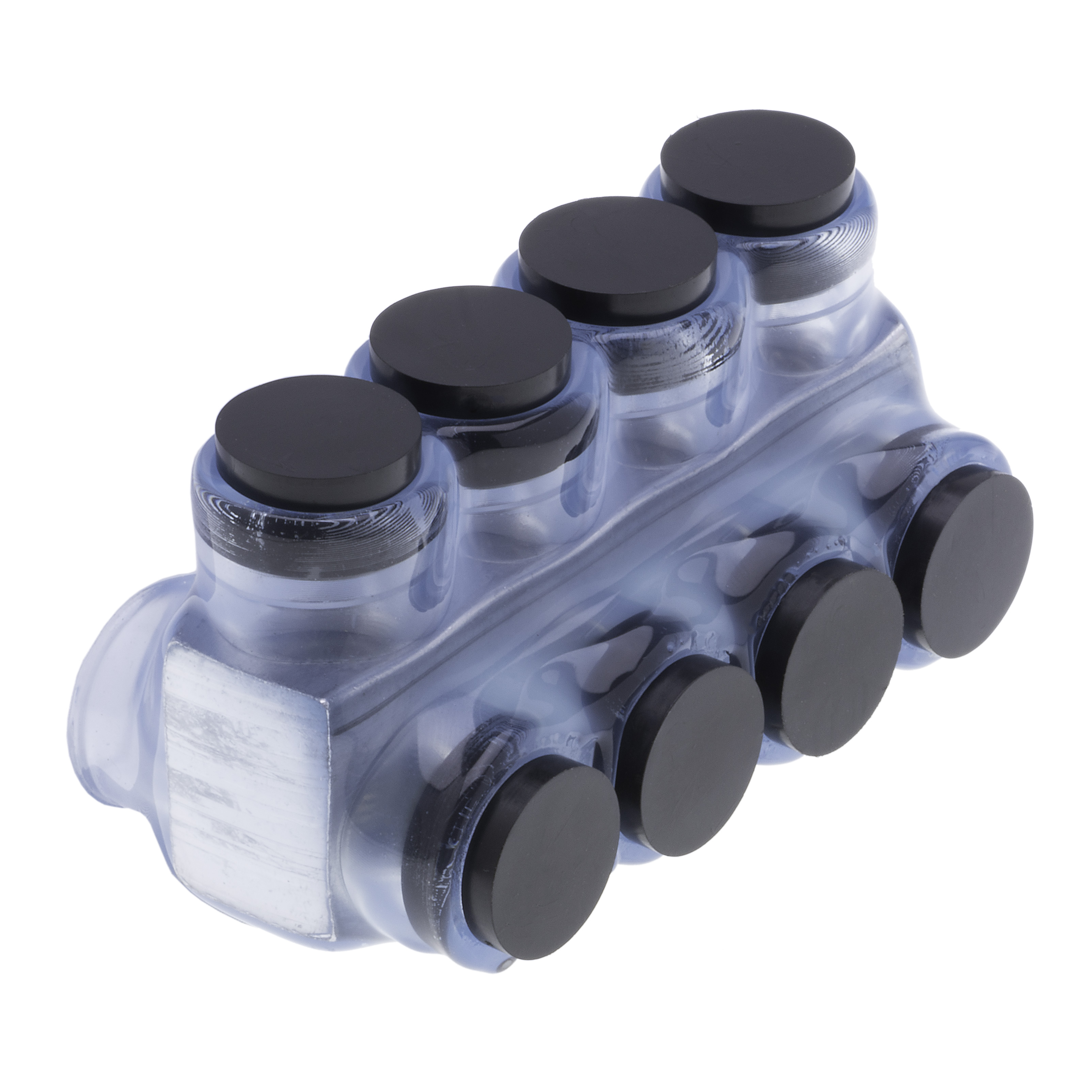

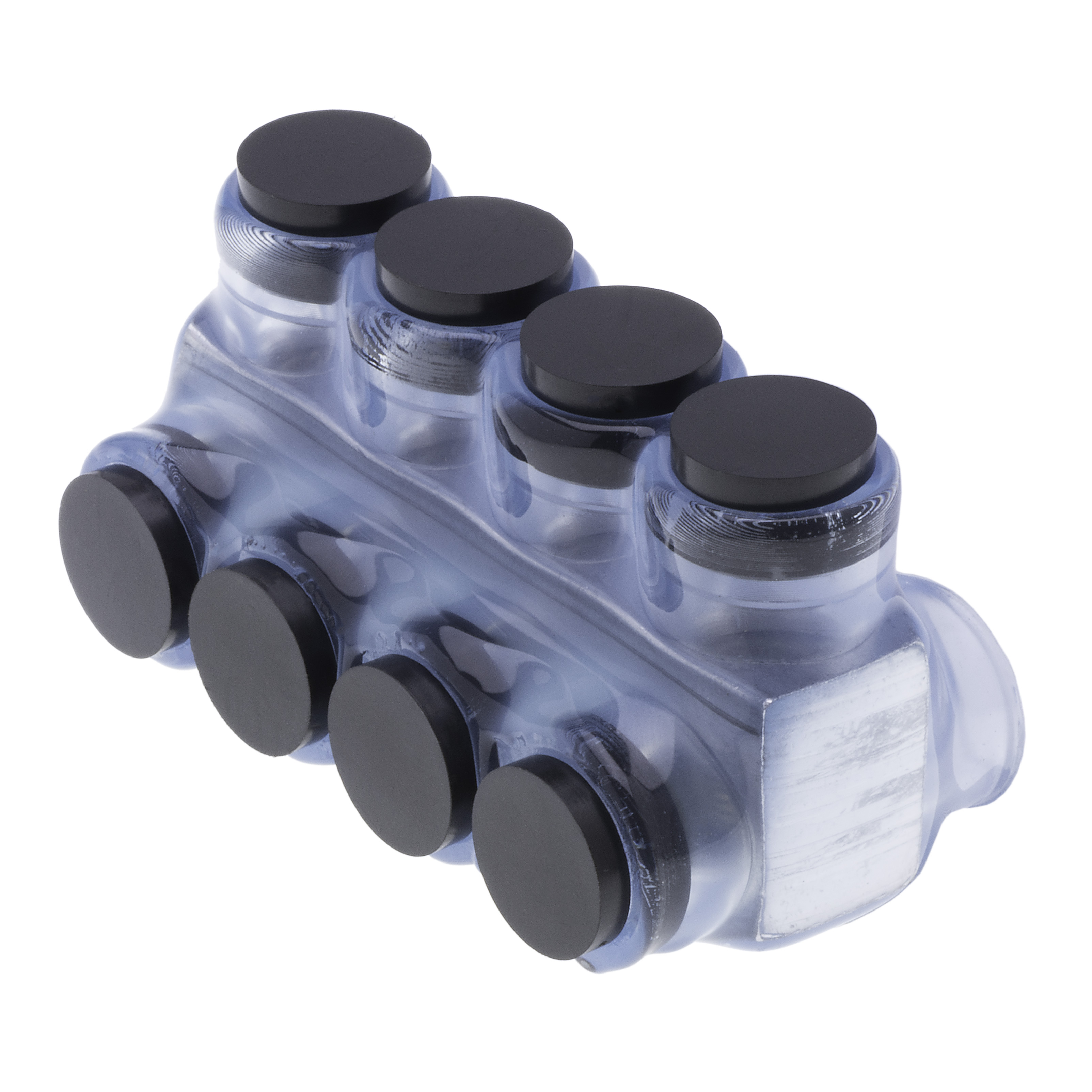

4-Port Clear Multi-Tap Pre-Insulated Connector, 3/0 – 6 AWG

#IPLD3/0-4C

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Dual-Sided Wire Entry: Form secure connections between 4 conductors quickly using the double-side entry ports sized for wires between 3/0 and 6 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Pre-filled Oxide Inhibitor: All 4 dual-sided (DSE) entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to protect against corrosion, debris or moisture
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Clear
GTIN 662381996640
UPC 662381996640
EAN 662381996640
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Al Conductor Max Amp 175
Cu Conductor Max Amp 225
Conductor Cu Size Range 3/0-6 AWG
Conductor Al Size Range 3/0-6 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 4
Hex Wrench Size 1
Env Temp Cold Temperature rated to -45C
Assortment Clear Coated Pre-Insulated Connectors
Application Splice, Tap
Max Torque 250

Resources

Documents

  • PRODRAW_IPLD3-0C.pdf Download
  • PolarisBlack-VisionTap_Torque-AssemblyChart_DIGITAL.pdf Download
  • LIT_PVTBRO19_SellSheet_Digital.pdf Download
  • LIT-POLARISBRO21_Polaris_Catalog_2021.pdf Download
  • PROINSTAL_POLARIS_BLACK-VT_INSTRUCTION_SHEETS_DIGITAL.pdf Download
