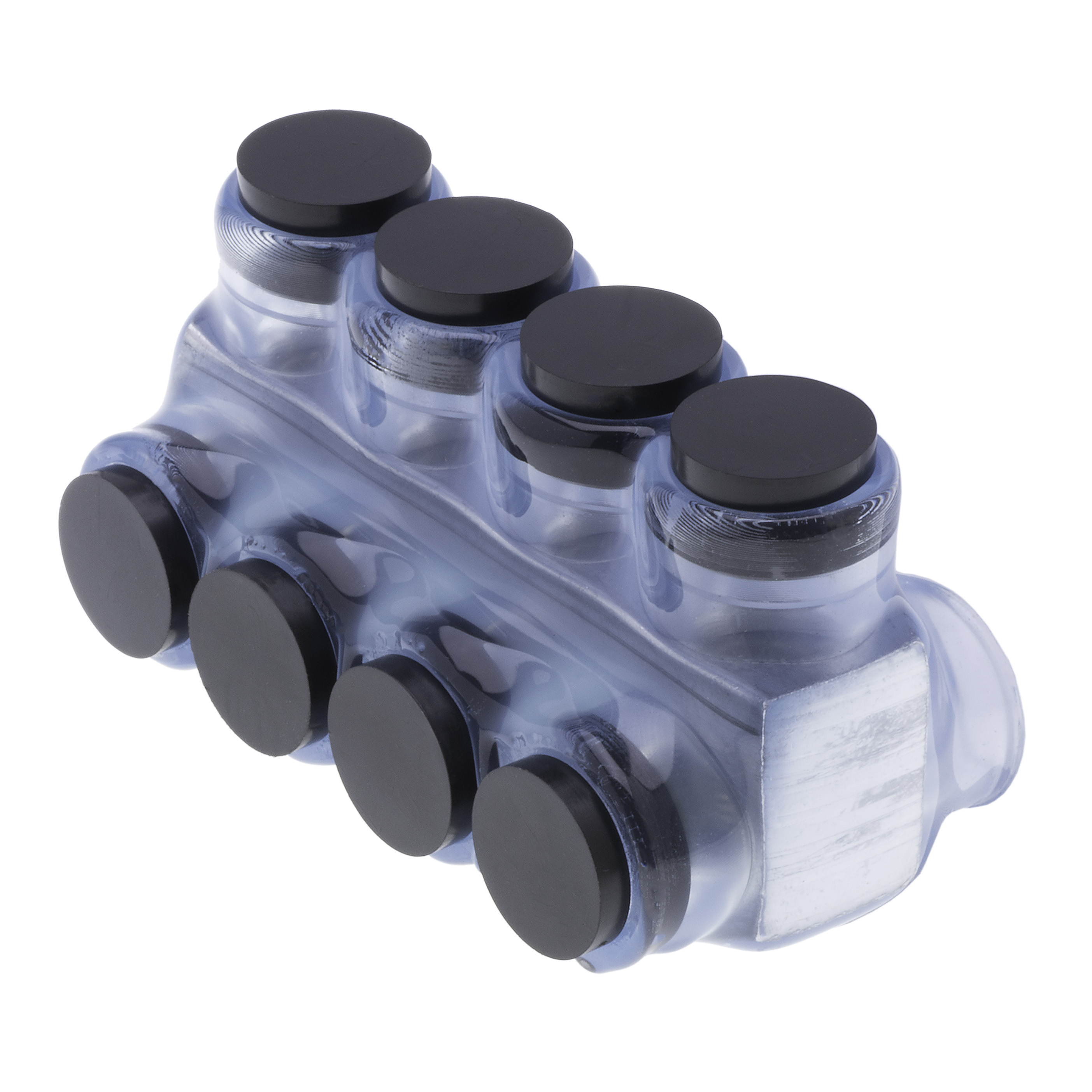

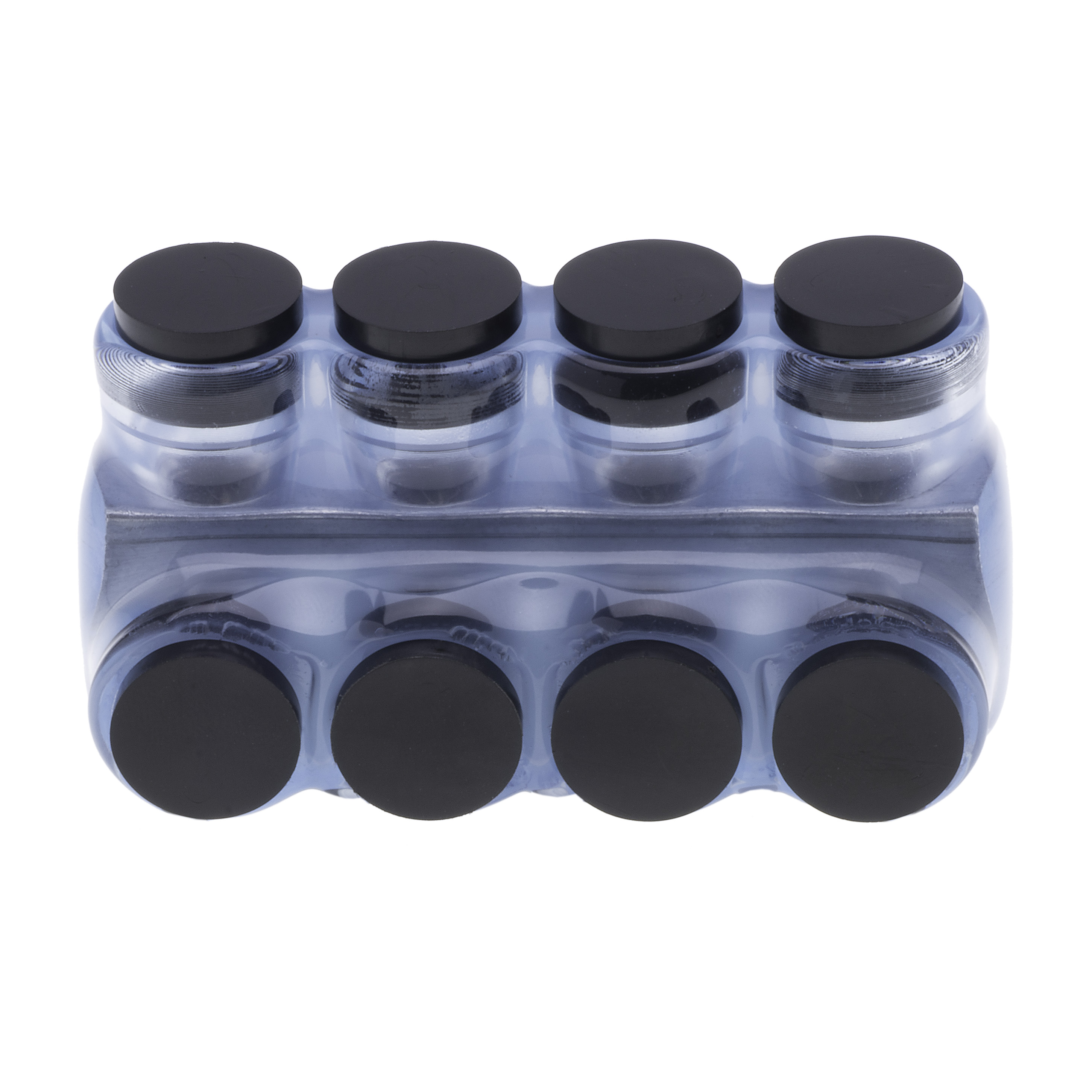

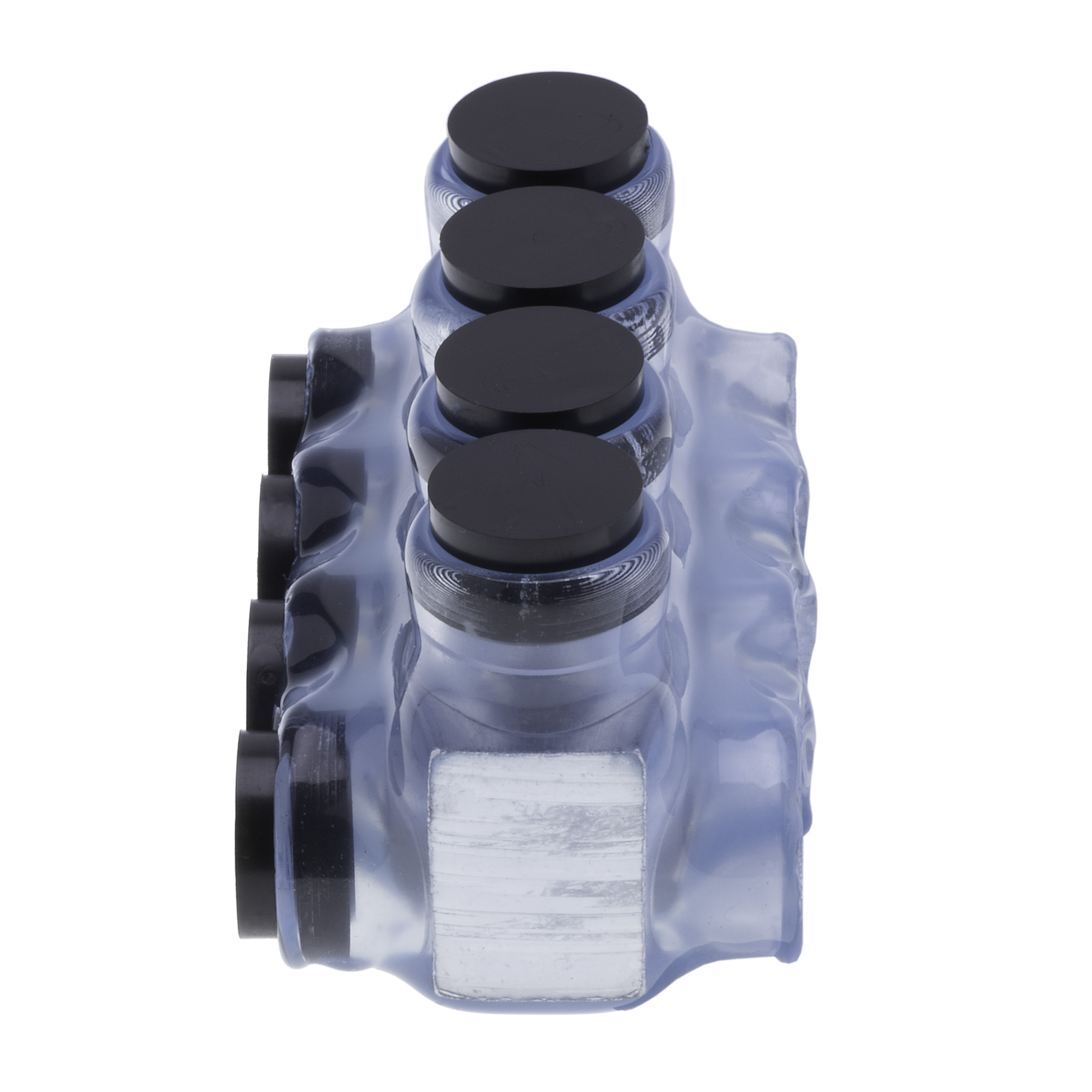

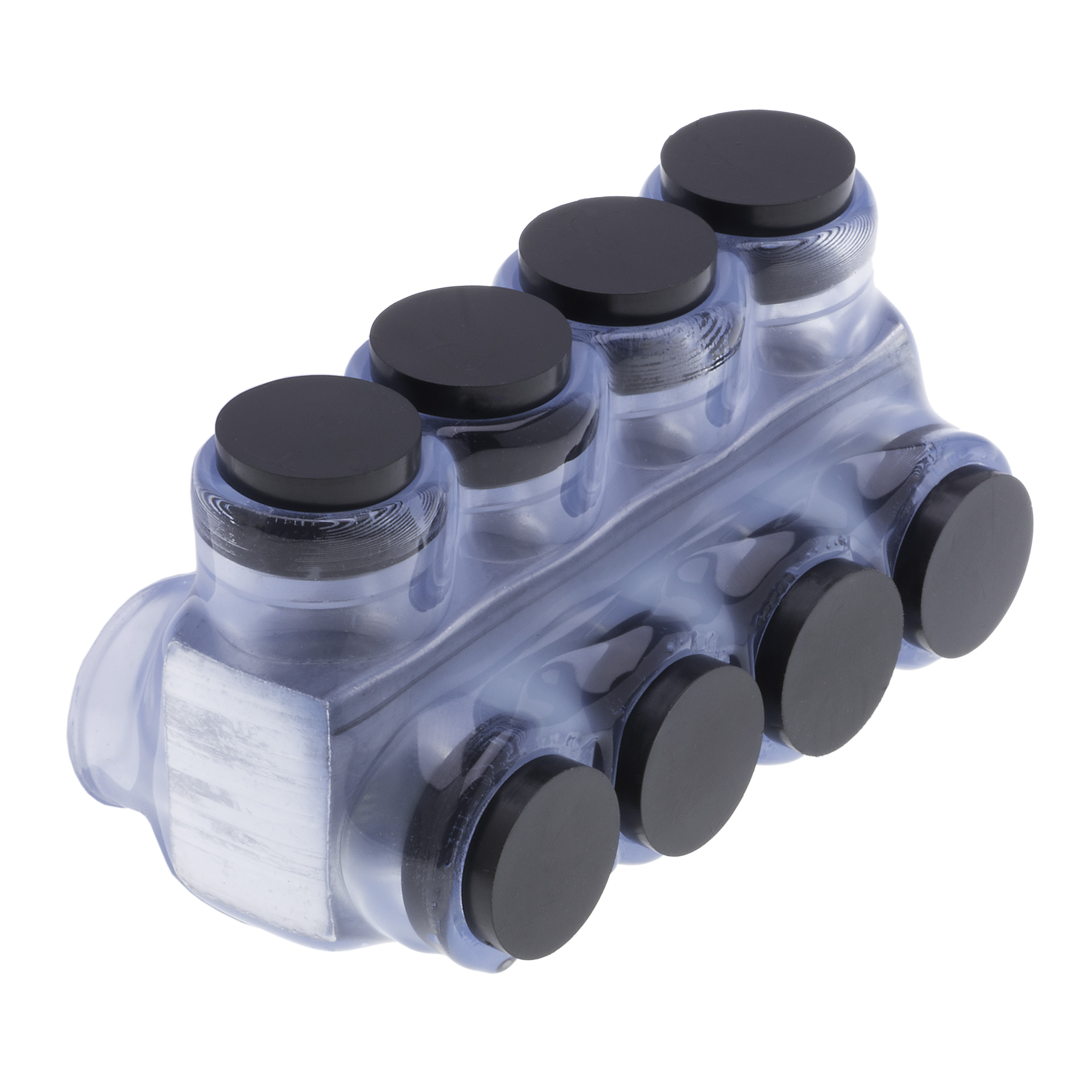

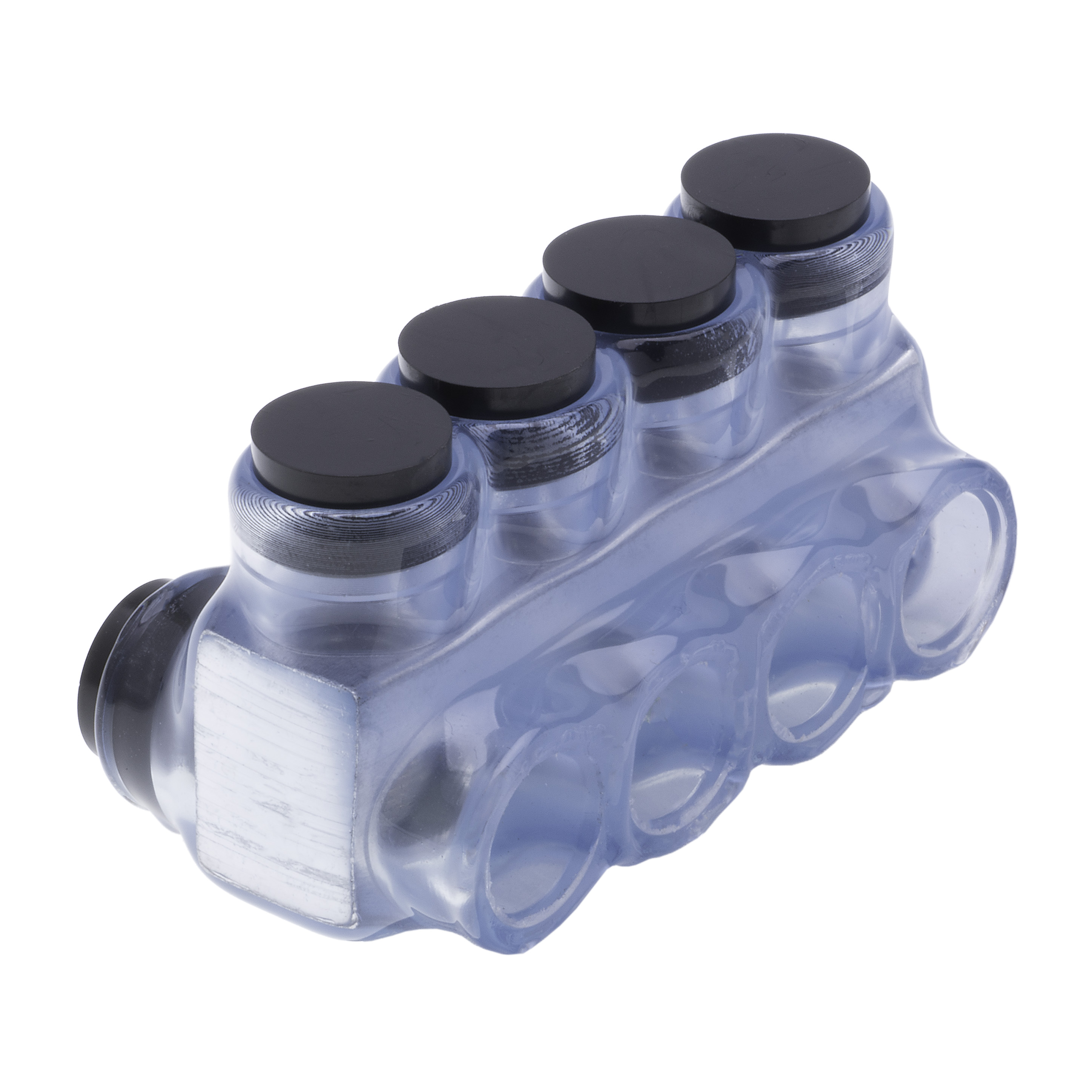

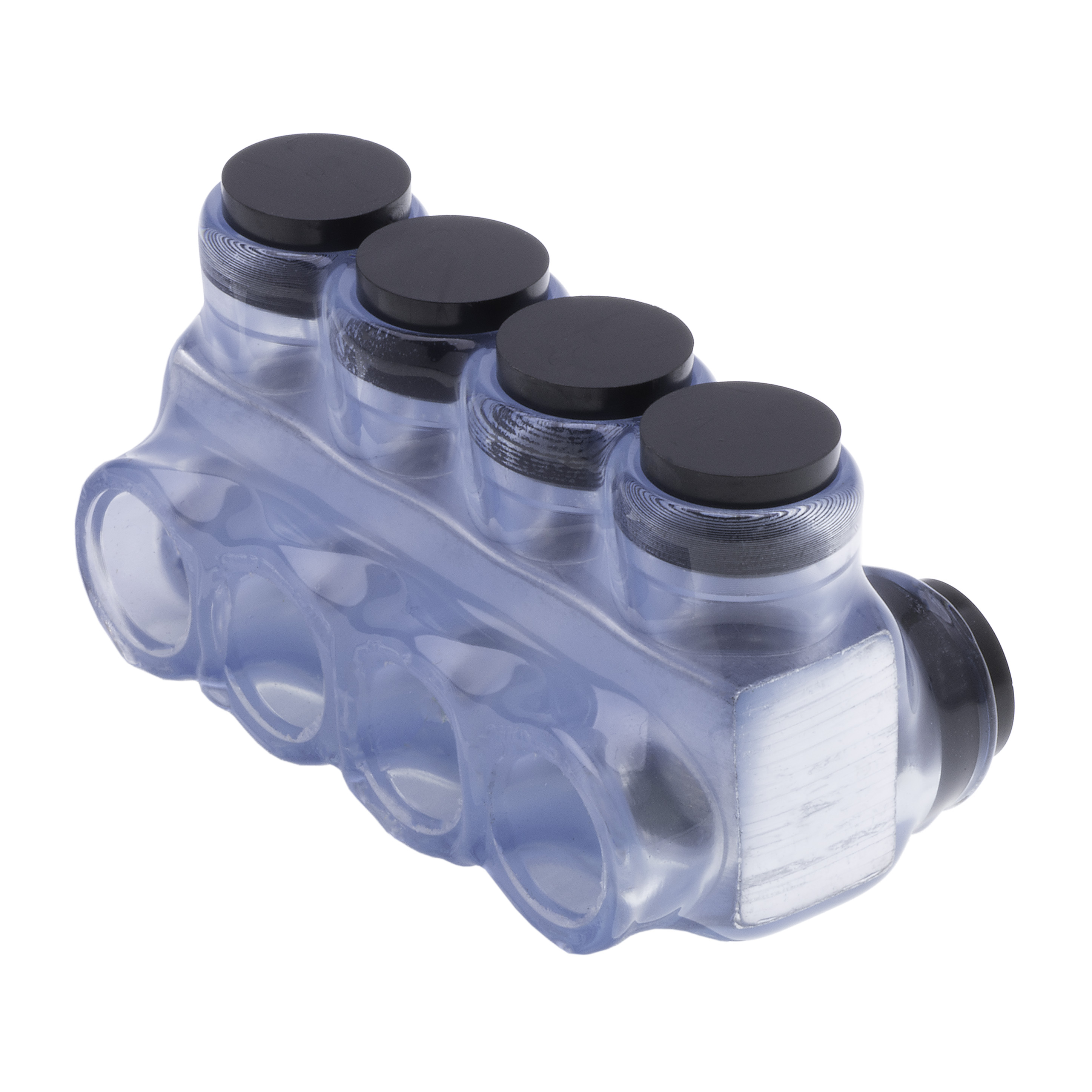

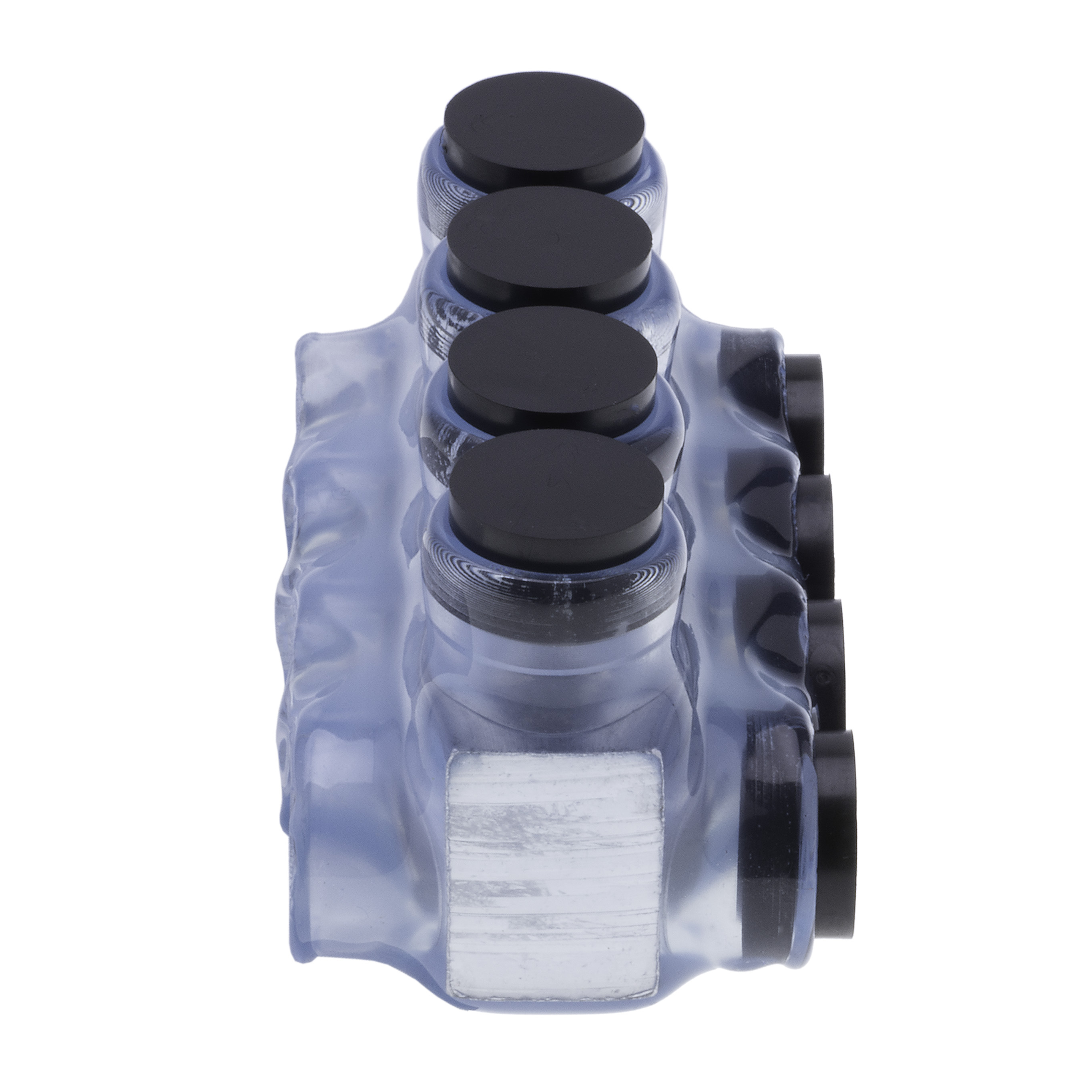

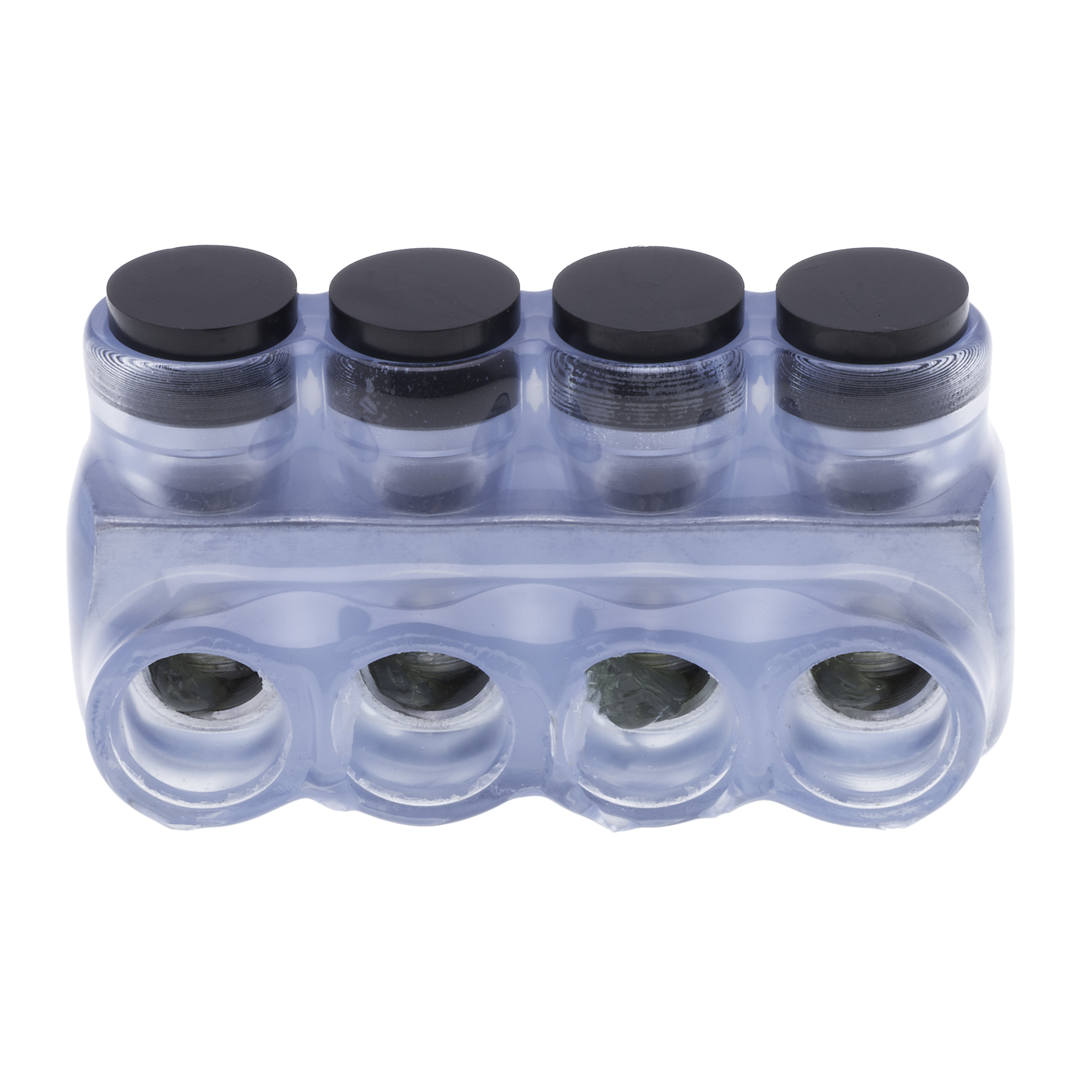

4-Port Clear Multi-Tap Pre-Insulated Connector, 1/0 AWG – 14 AWG

#IPLD1/0-4C

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and chemical-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Dual-Sided Wire Entry: Form secure connections between 4 conductors quickly using the double-side entry ports sized for wires between 1/0 AWG and 14 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Pre-filled Oxide Inhibitor: All 4 dual-sided (DSE) entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to protect against corrosion, debris or moisture
  • Professional Performance: The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Clear
UPC 662381201485
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 135
Cu Conductor Max Amp 170
Conductor Cu Size Range 1/0 AWG – 14 AWG
Conductor Al Size Range 1/0 AWG – 12 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 4
Hex Wrench Size 3/16
Env Temp Cold Temperature rated to -45C
Assortment Clear Coated Pre-Insulated Connectors
Max Torque 80
