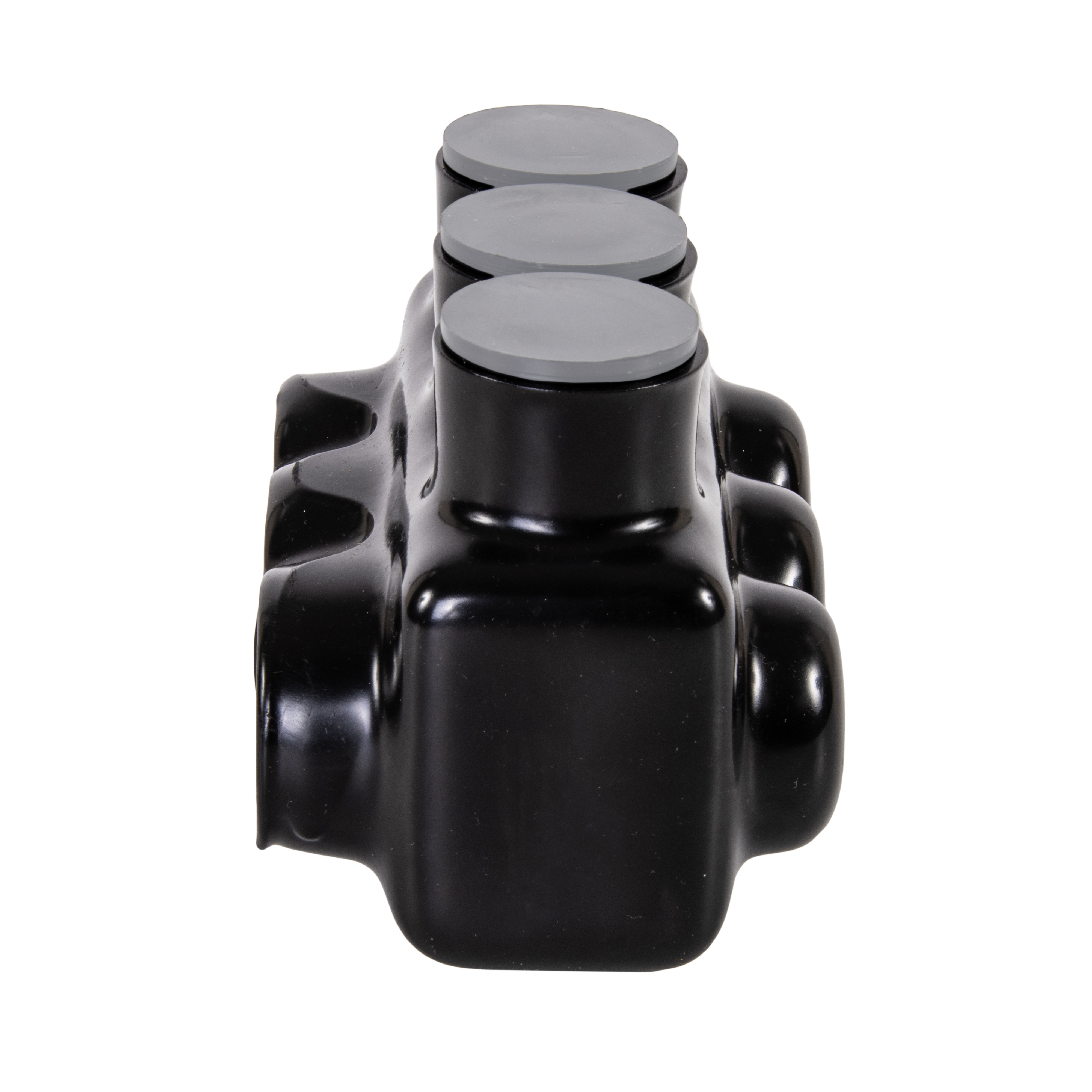

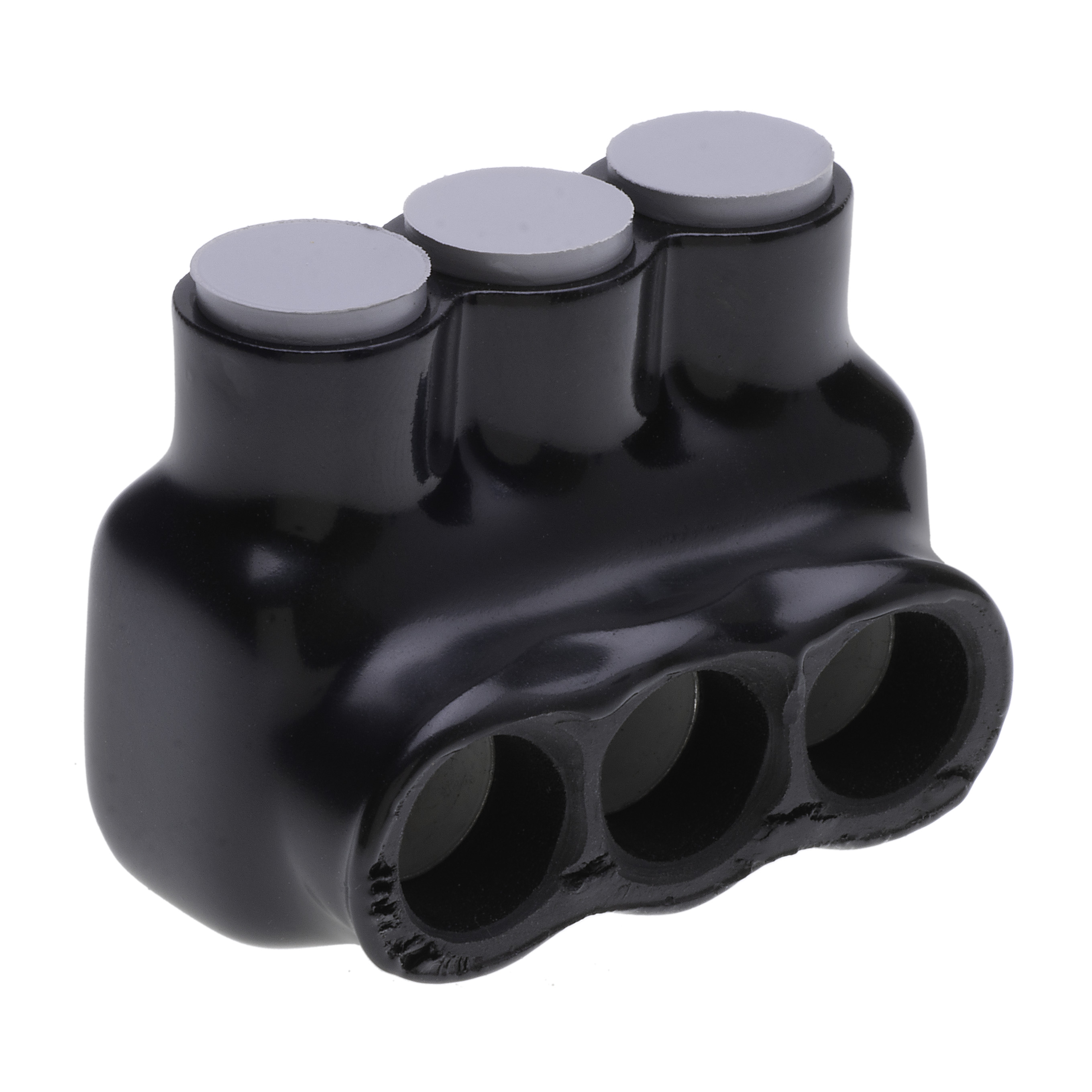

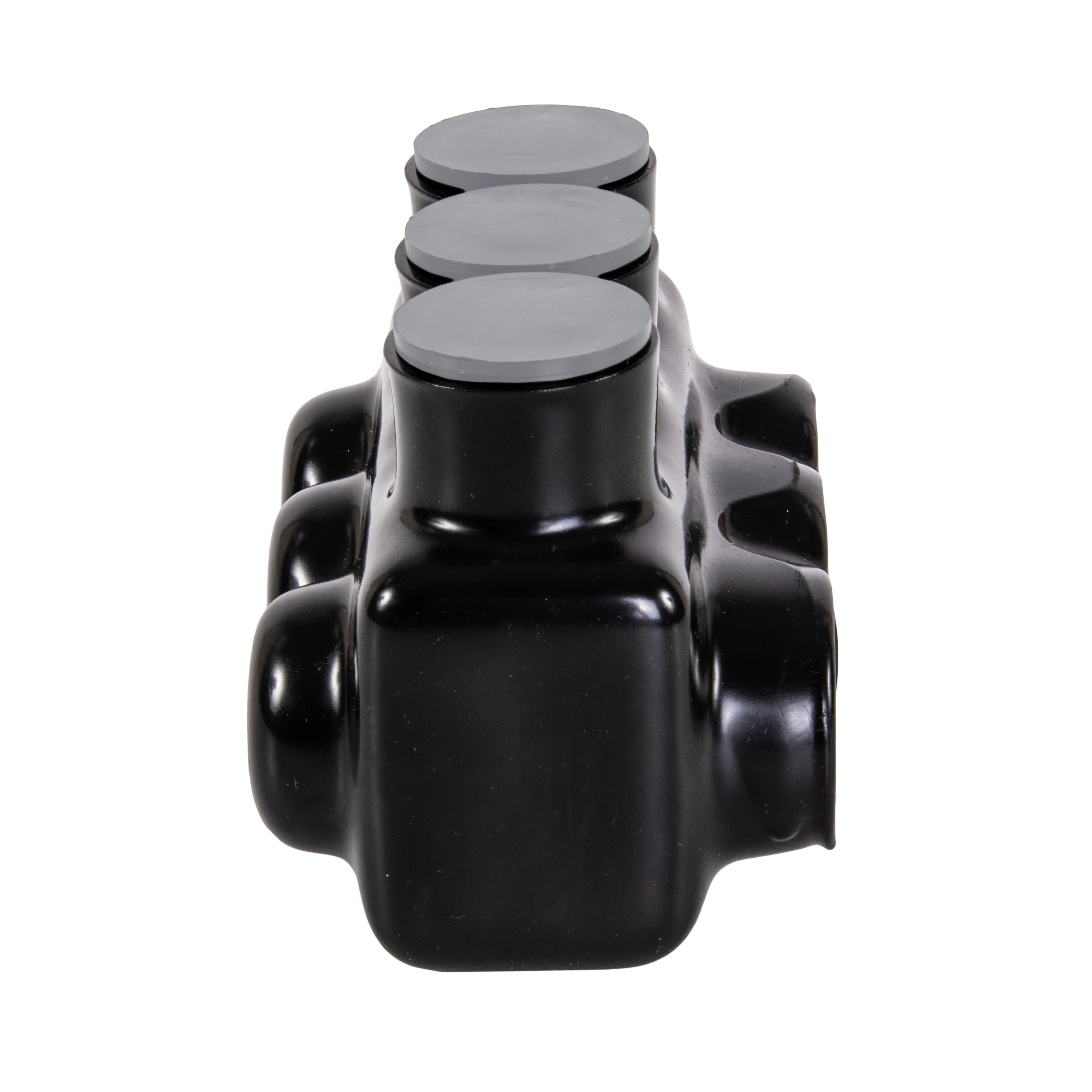

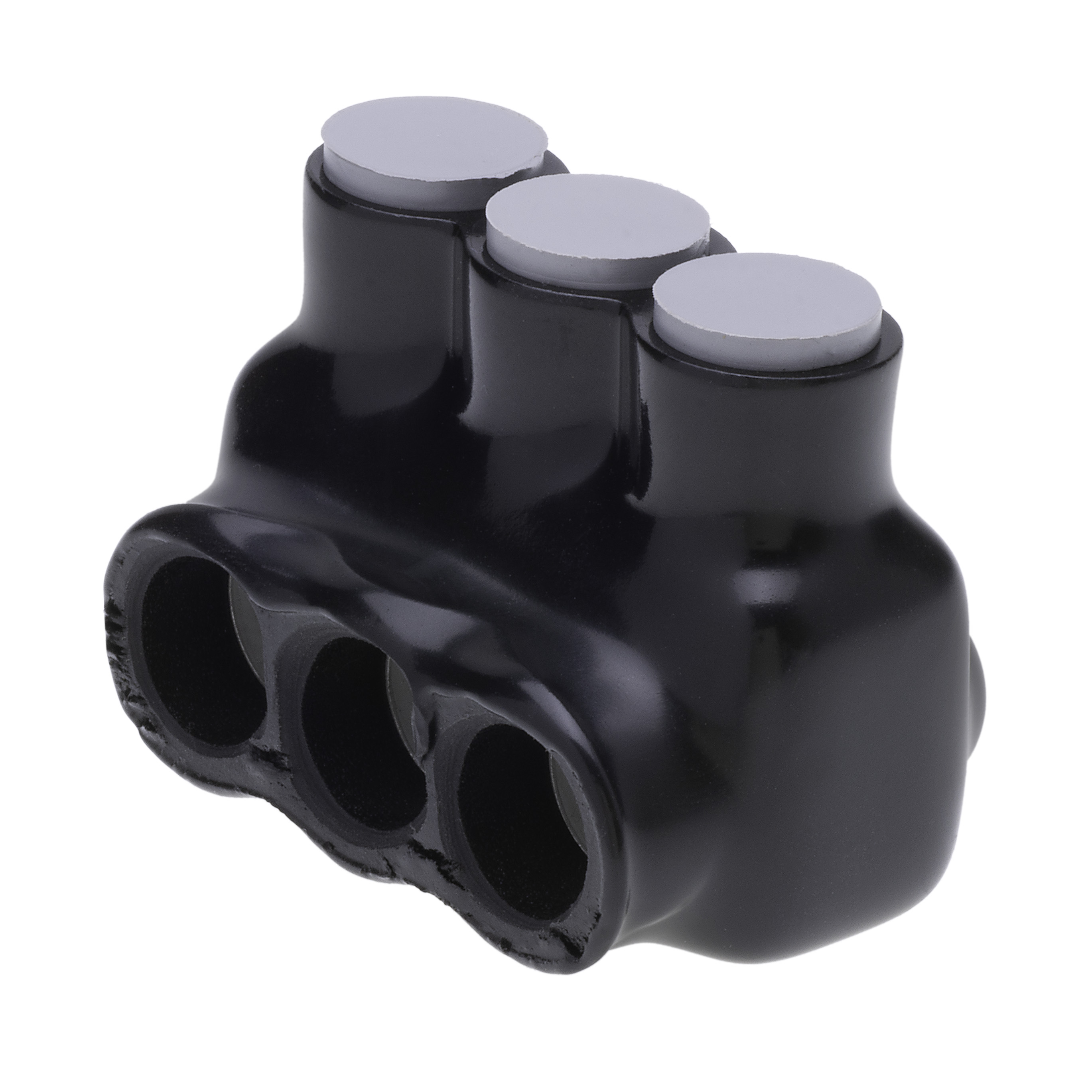

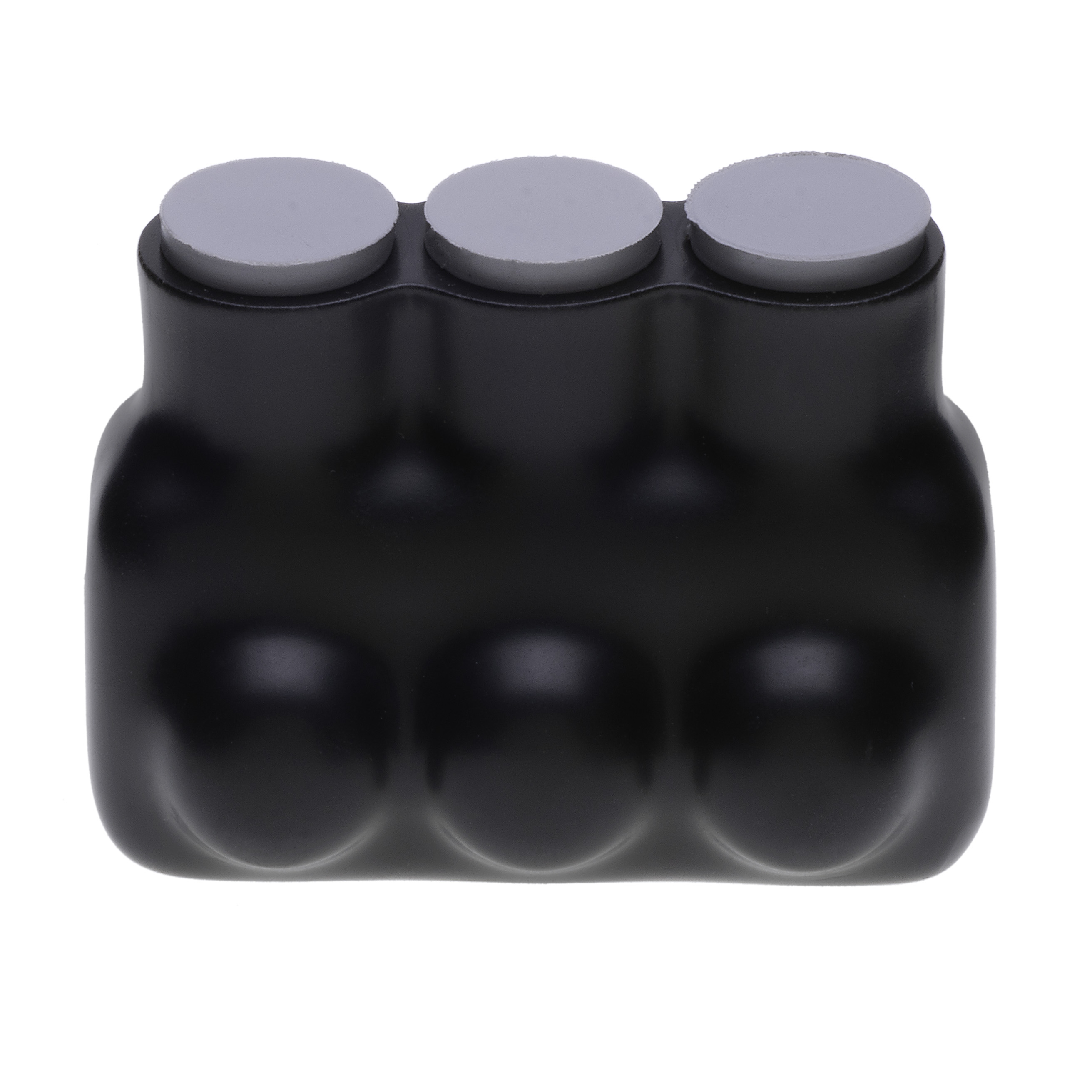

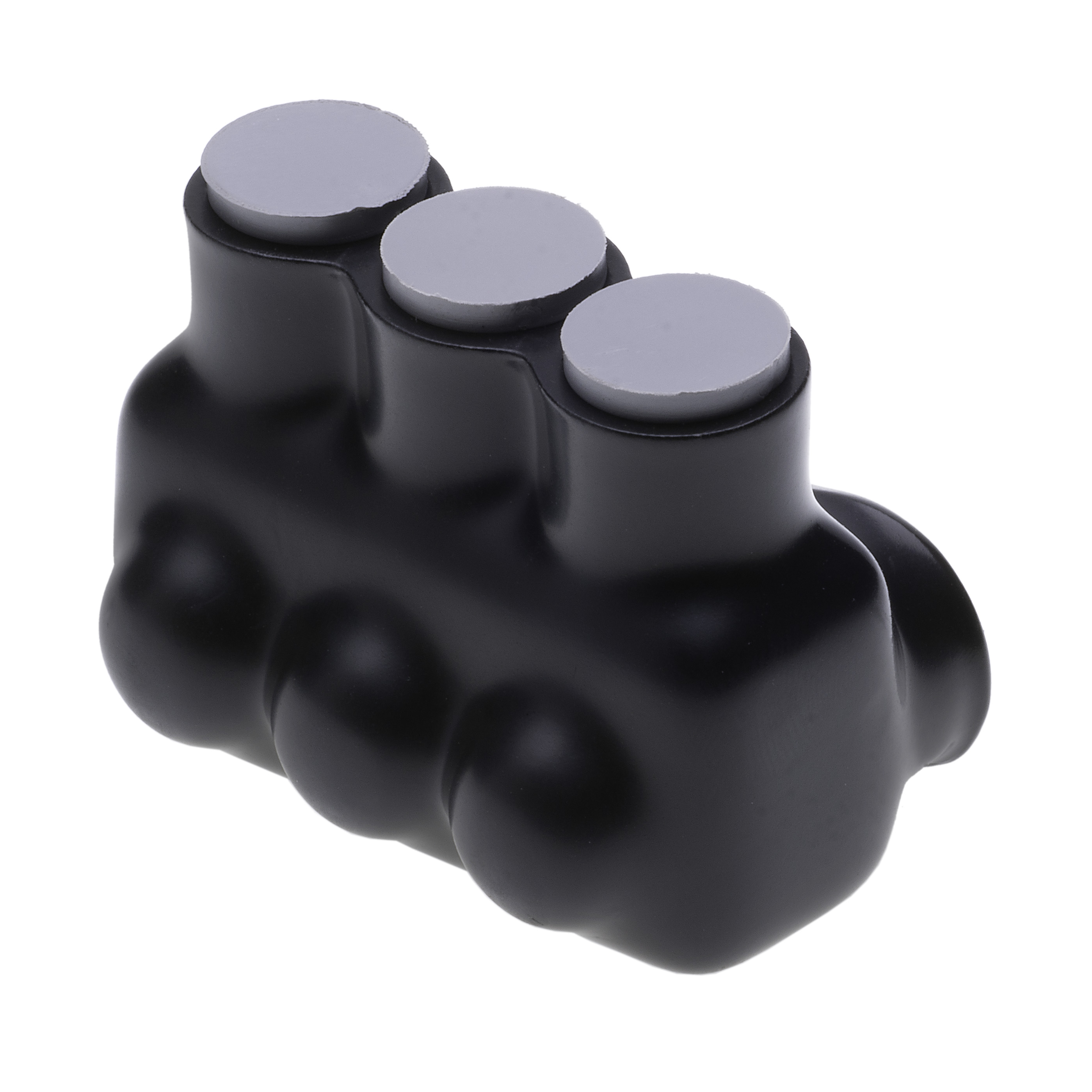

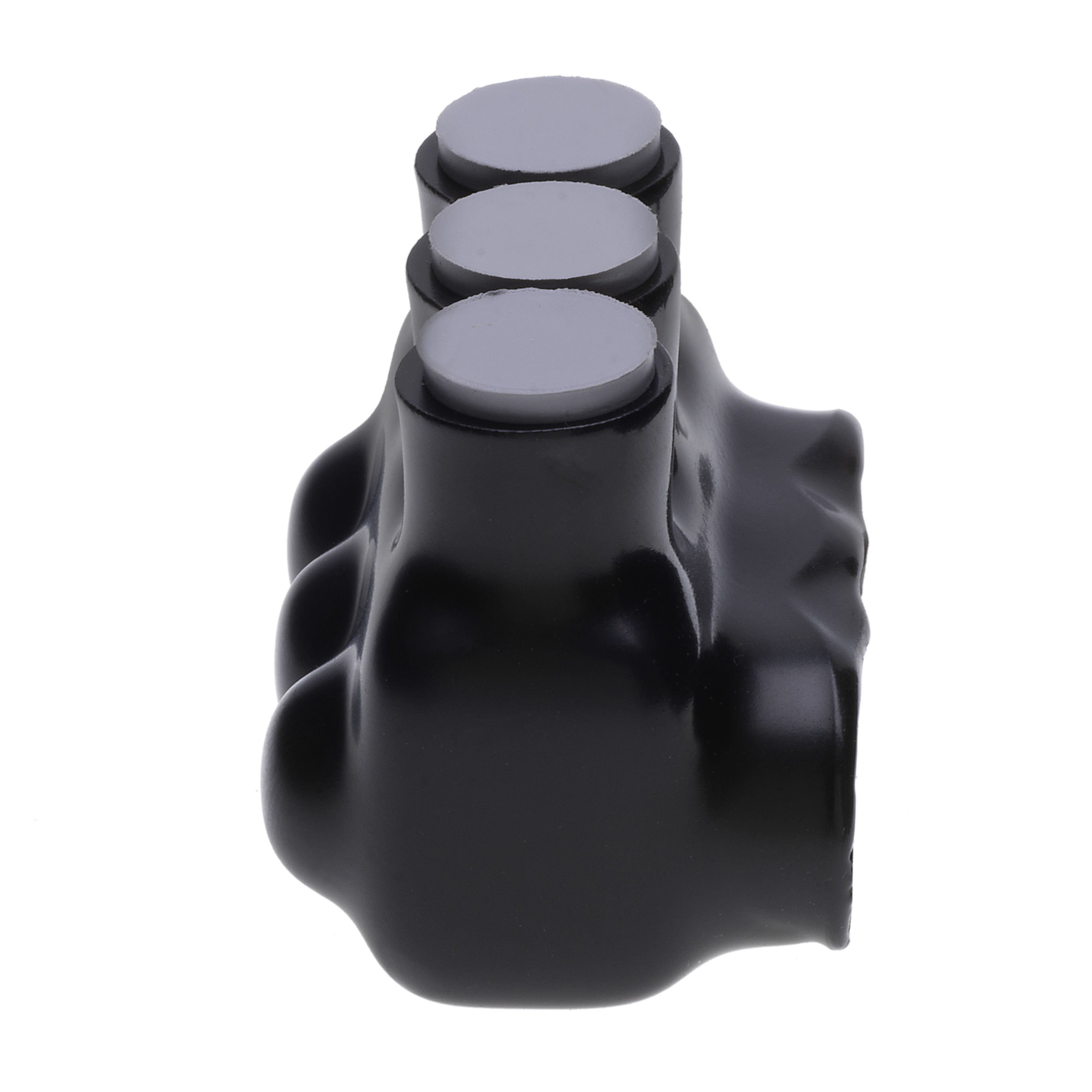

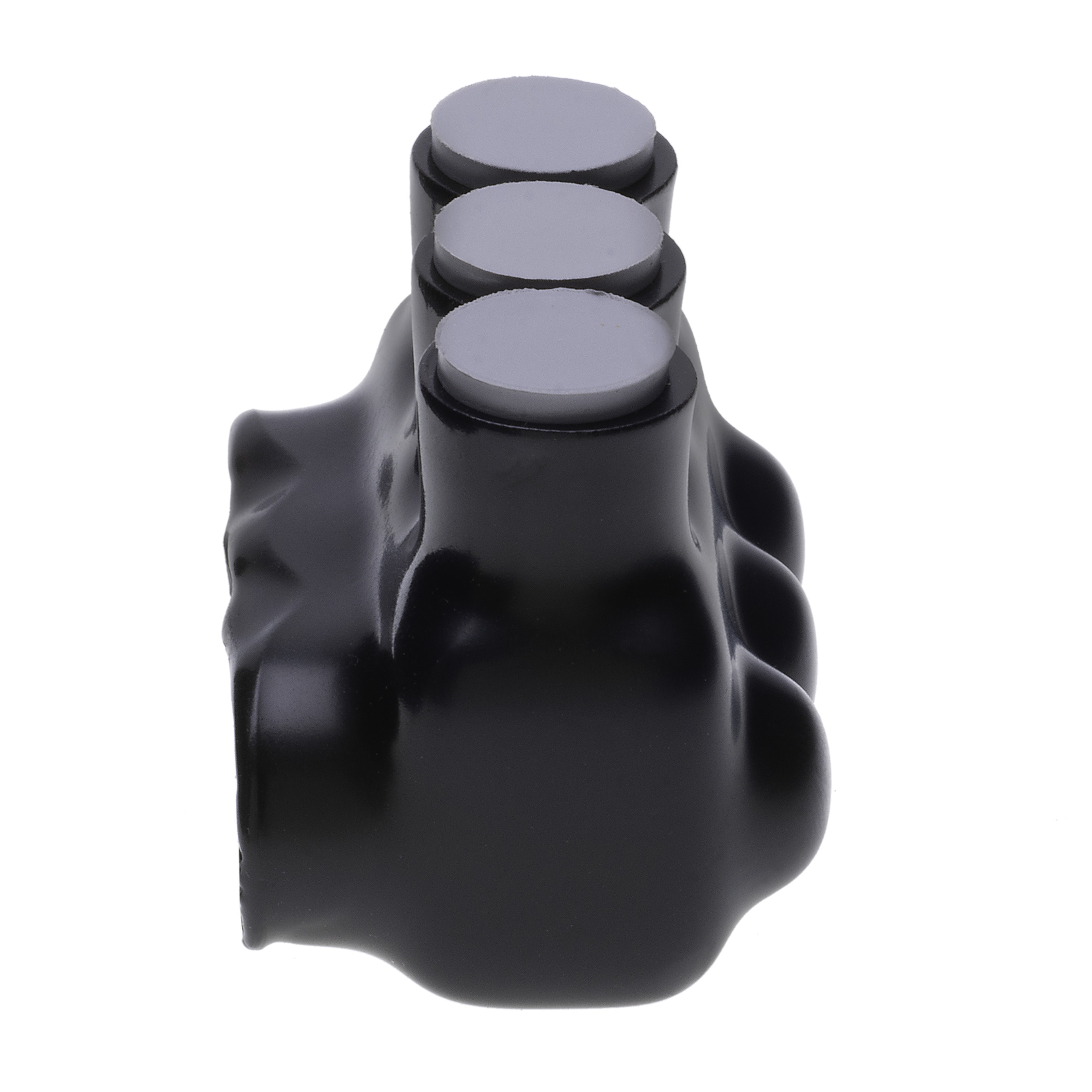

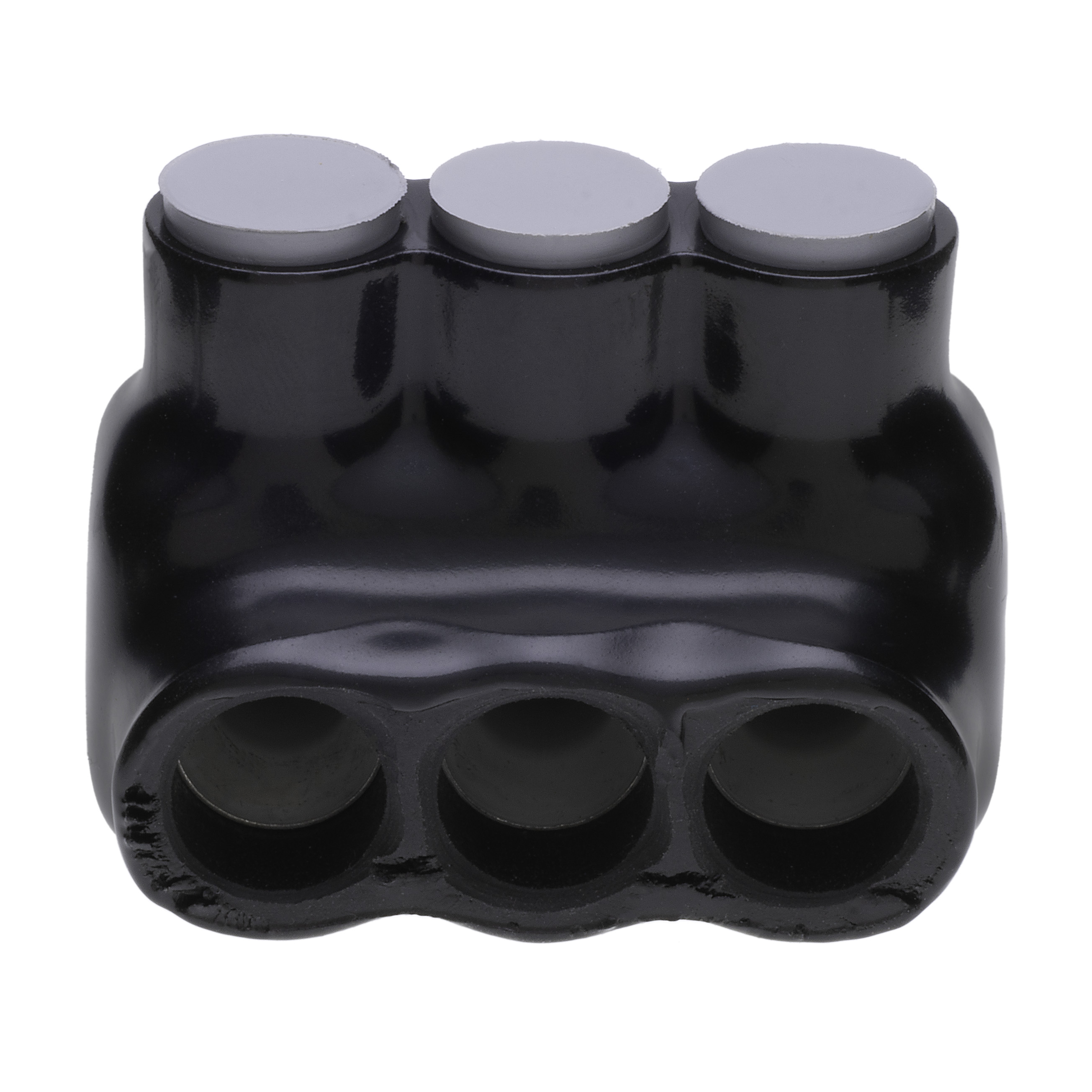

3-Port Grey Multi-Tap Pre-Insulated Connector, 1 – 10 AWG

#IPLG1-3

Polaris Grey Multi-Tap Connectors form secure connections between multiple fine-stranded wire conductors, with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, no need for cover and taping.

  • One-Side Wire Entry: Form secure connections between 3 conductors quickly using the single-side entry ports sized for wires between 1 and 10 AWG
  • Fine-Stranded Wires: Specially designed to splice fine-stranded, flexible and extra-flexible copper conductors, including DLO cable and motor lead wires
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Tightening Ferrule: The pre-installed tin-plated copper ferrule in each port collapses against fine strands to prevent tearing from the rotation of the screw

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black with Grey Caps
Pack Qty 6
GTIN 662381951496
UPC 662381951496
EAN 662381951496
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C, Class D, Class G, Class H, Class I, Class K, Class M, Class DLO
Cu Conductor Max Amp 150
Conductor Cu Size Range 1-10 AWG (CLASS B, C,D) & 2-10 AWG (Classes G, H, I, K, M, DLO)
Conductor Type Copper
Temp Rating 90C, 9CU
Conductors Count 3
Hex Wrench Size 3/16
Env Temp Cold Temperature rated to -45C
Assortment Fine Stranded Wire Pre-Insulated Connectors
Application Splice, Tap
Max Torque 150
