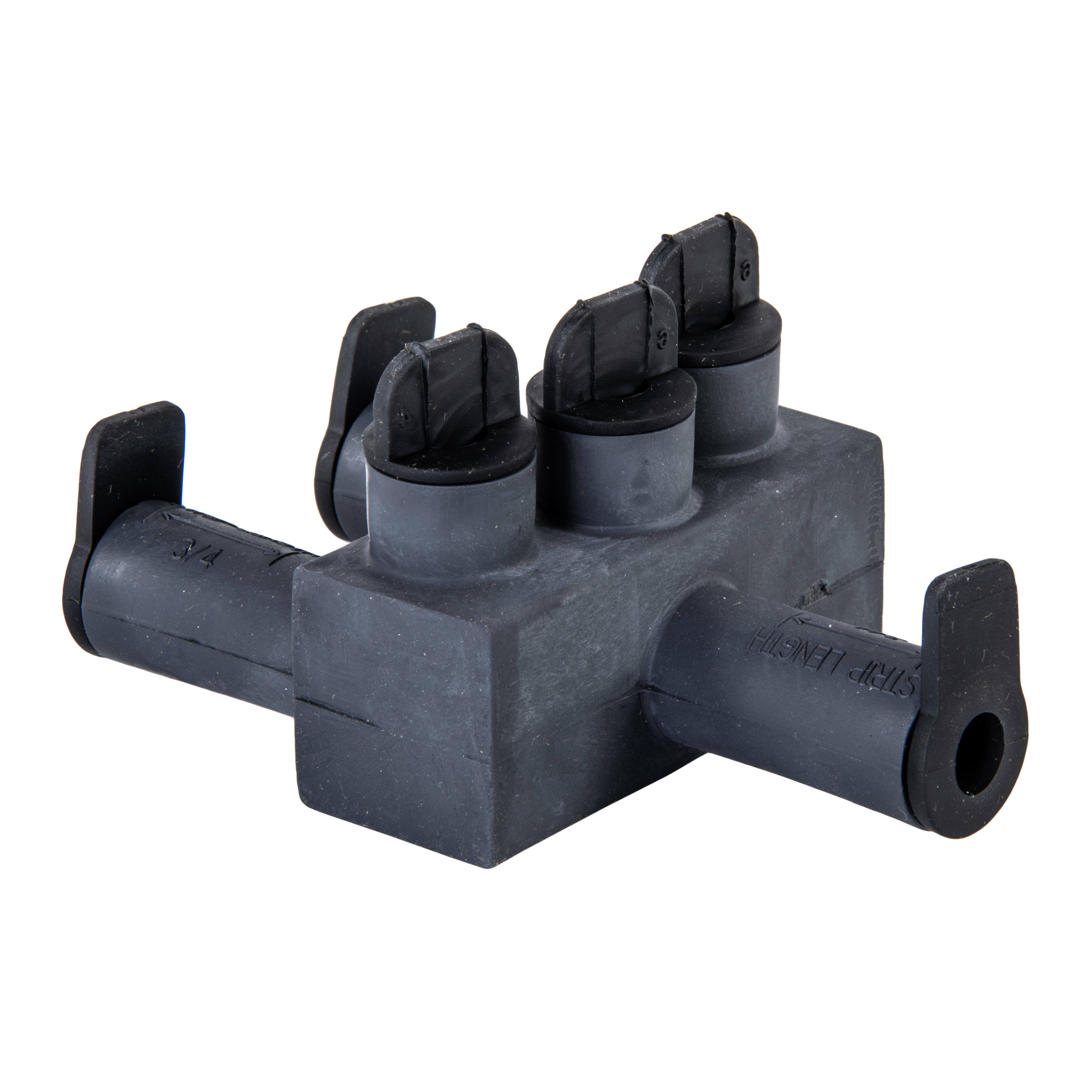

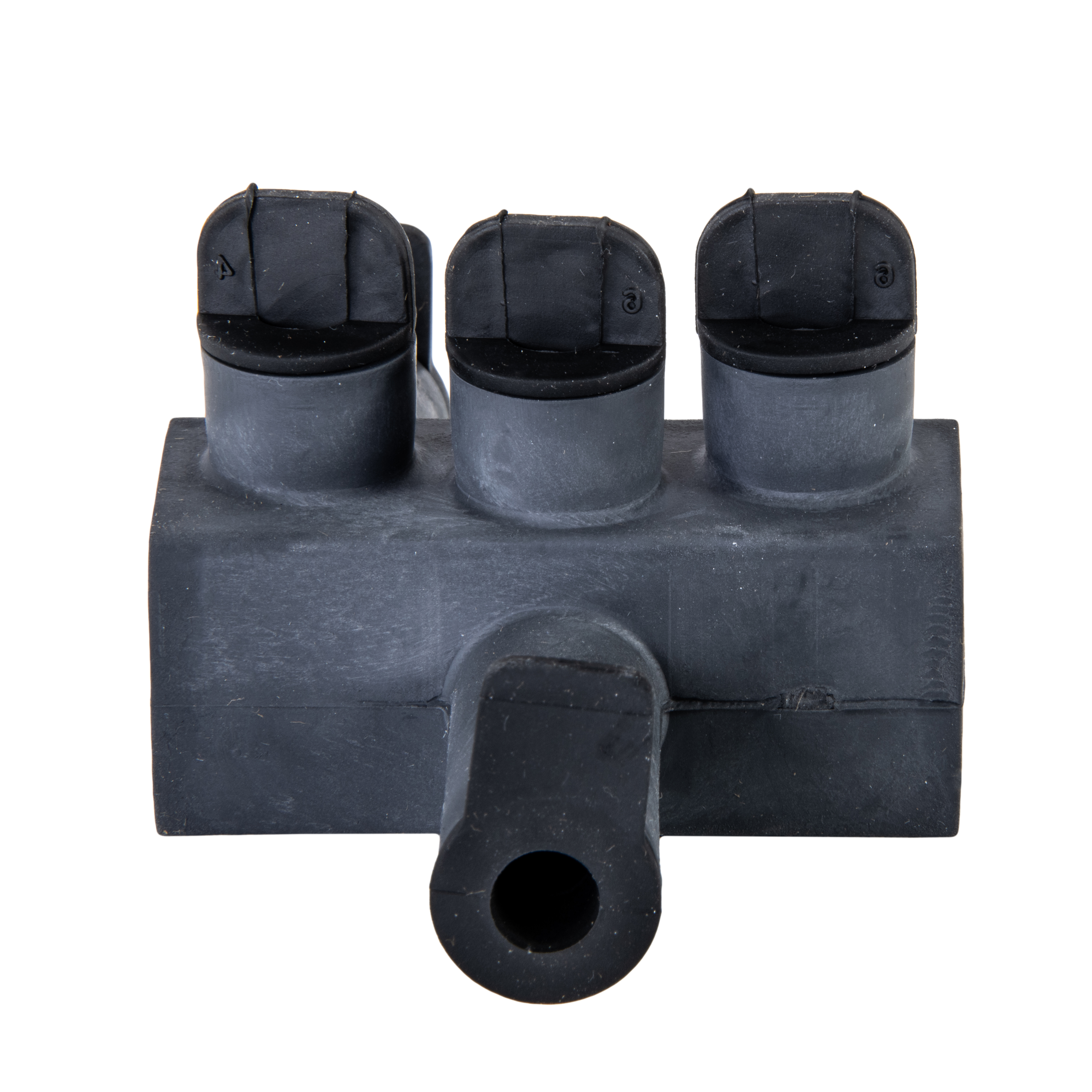

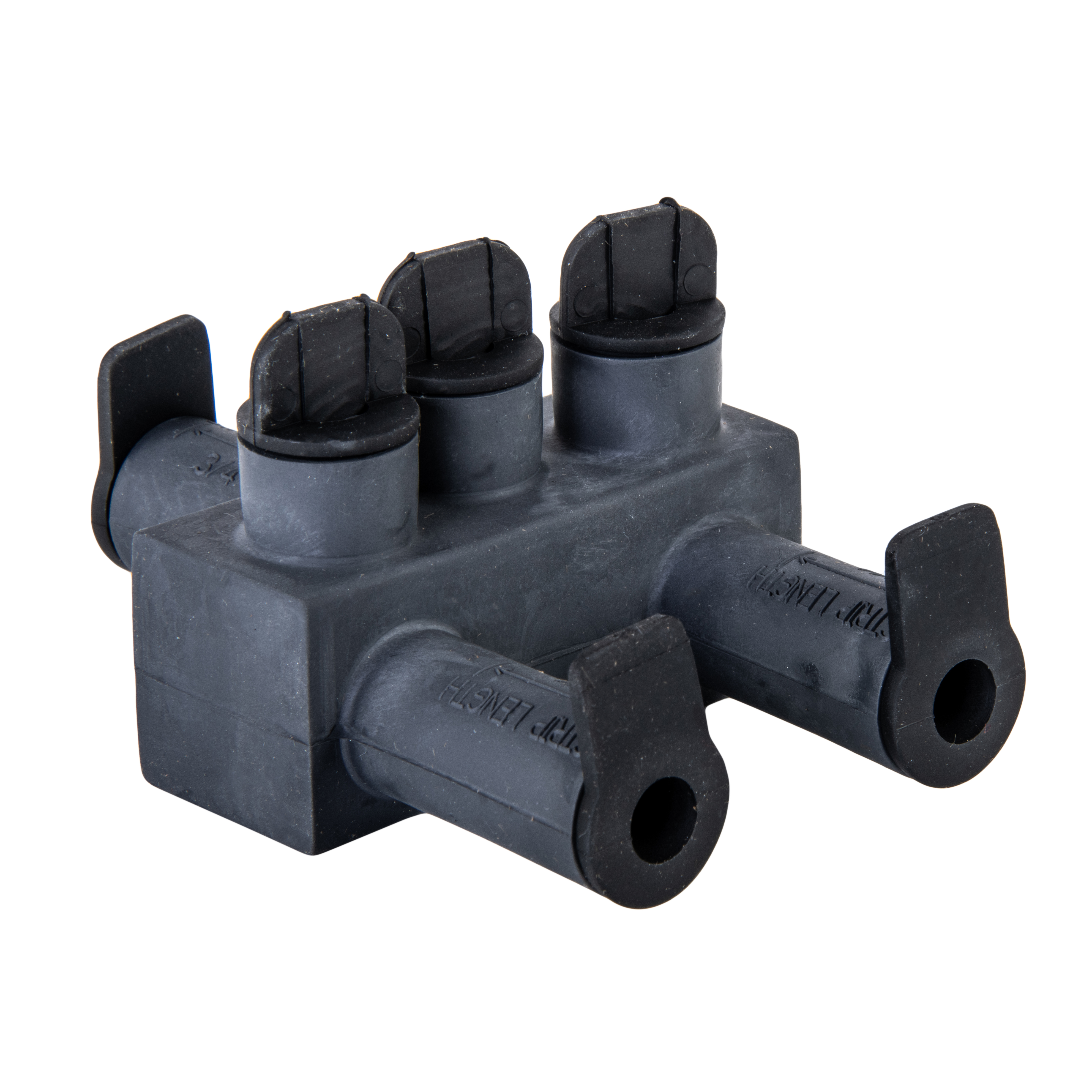

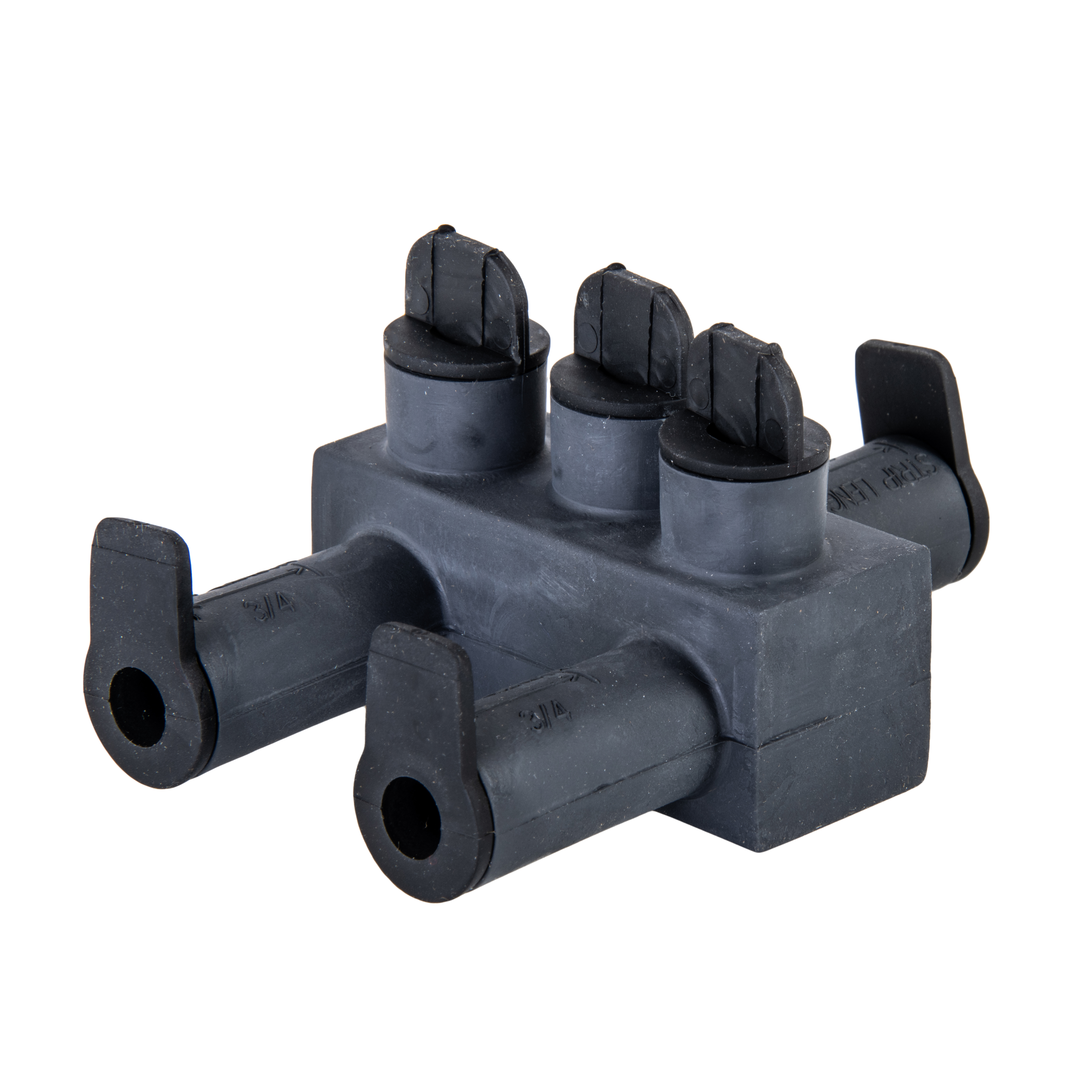

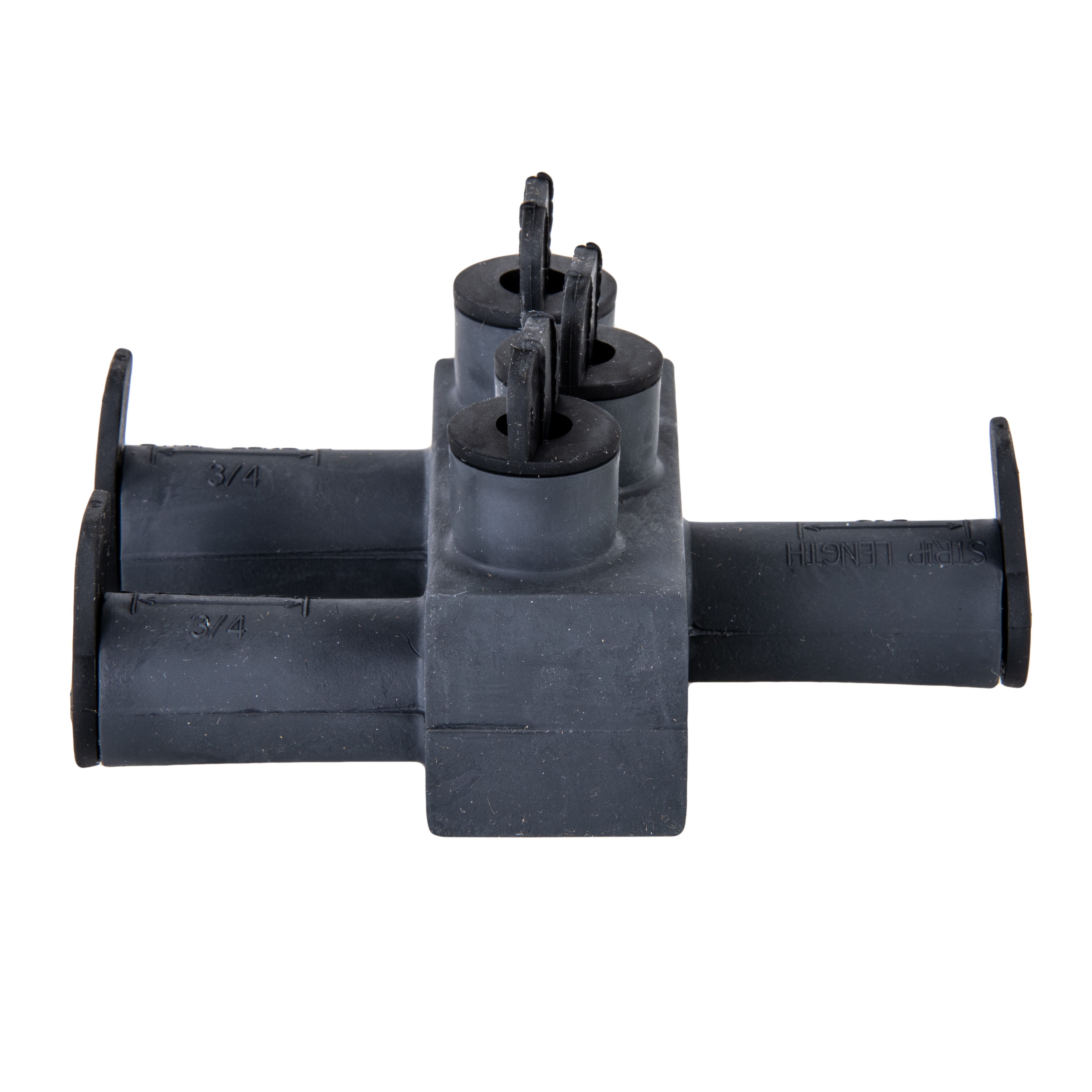

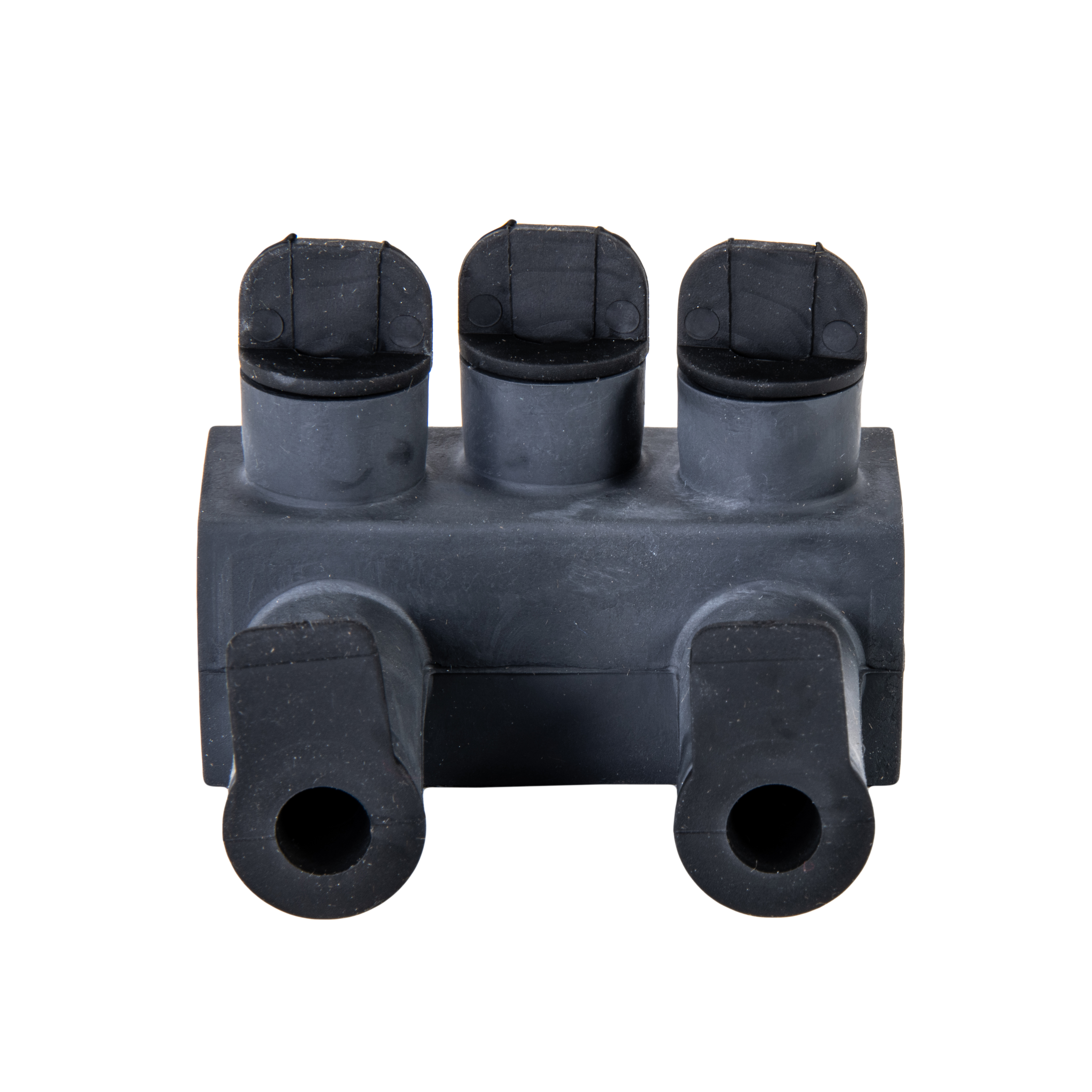

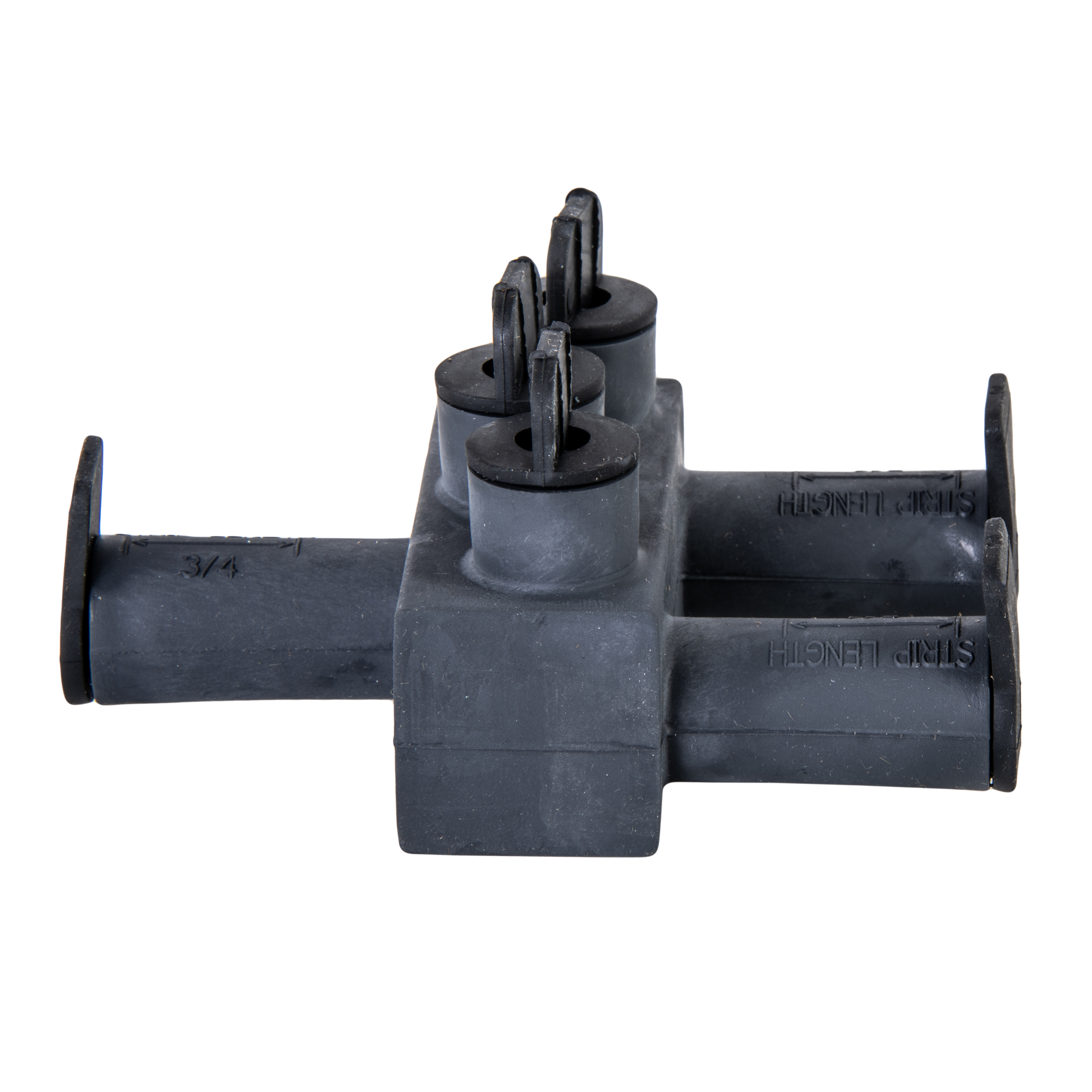

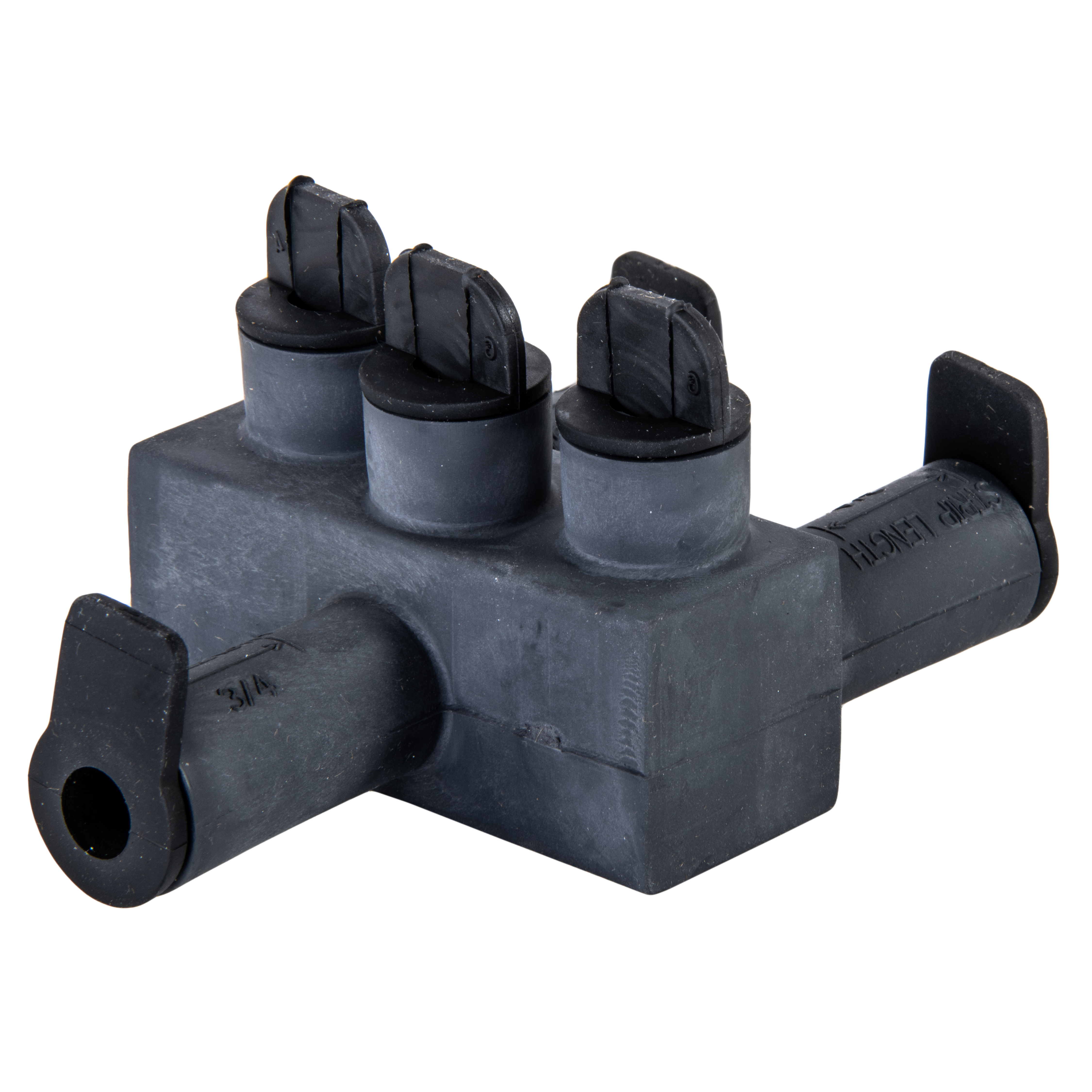

3-Port Edge Submersible Pedestal Connector, 2/0 – 14 AWG

#ISPBO2/0

Polaris Edge Multi-Tap Direct Burial Connectors form secure connections between multiple conductors and feature a rounded design and rubber insulation coating for temporary submersion or direct burial. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Offset Wire Entry: Form secure connections between 3 conductors quickly using the offset entry ports sized for wires between 2/0 and 14 AWG
  • Direct Burial Applications: High-strength aluminum alloy body and rubber insulation with a nominal thickness of 125 mils built for temporary submersal or direct burial applications
  • Ergonomic Design: The plastisol insulation features rounded corners for a comfortable grip and is UV, abrasion and chemical-resistant for durable performance
  • Pre-filled Oxide Inhibitor: All 3 offset entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or contamination
  • Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish EPDM Rubber Insulated
Color Black
GTIN 662381787873
UPC 662381787873
EAN 662381787873
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486D
Wire Cable Class Class B, Class C
Ansi ANSI C119.4, C119.1
Al Conductor Max Amp 150
Cu Conductor Max Amp 195
Conductor Cu Size Range 2/0-14 AWG
Conductor Al Size Range 2/0-12 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 3
Hex Wrench Size 3
Env Temp Cold Temperature rated to -45C
Assortment Submersible Pre-Insulated Connector
Application Splice, Tap
Max Torque 120
