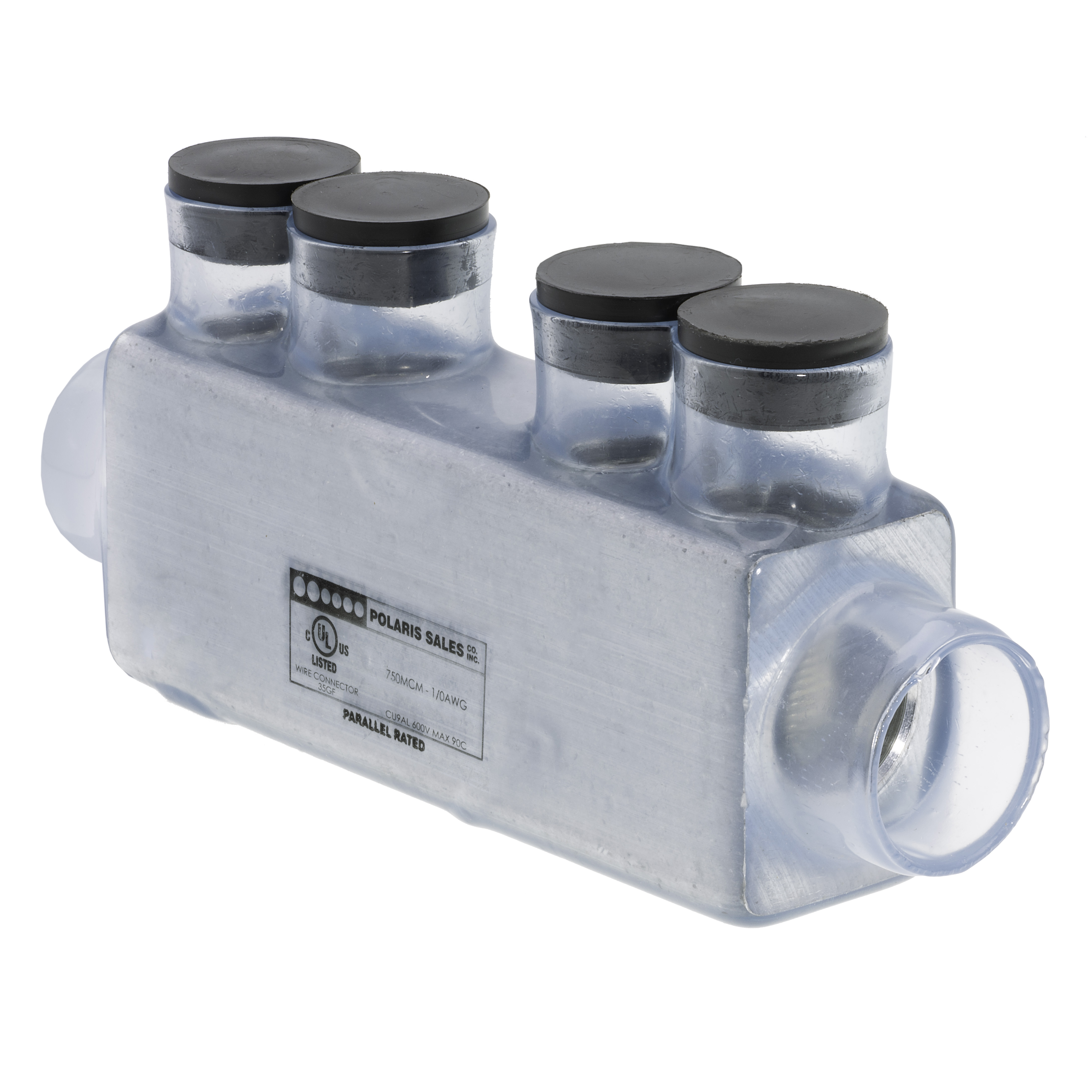

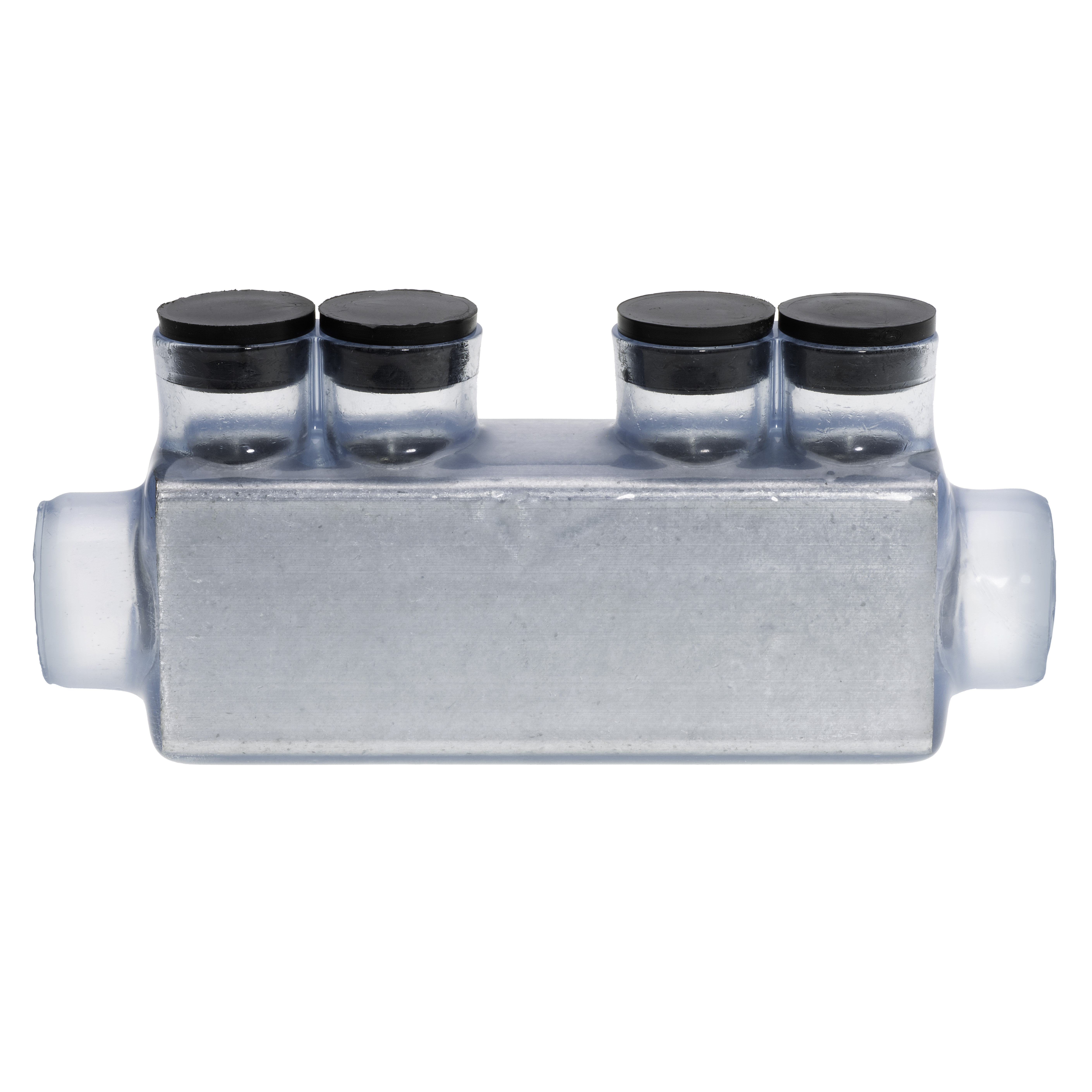

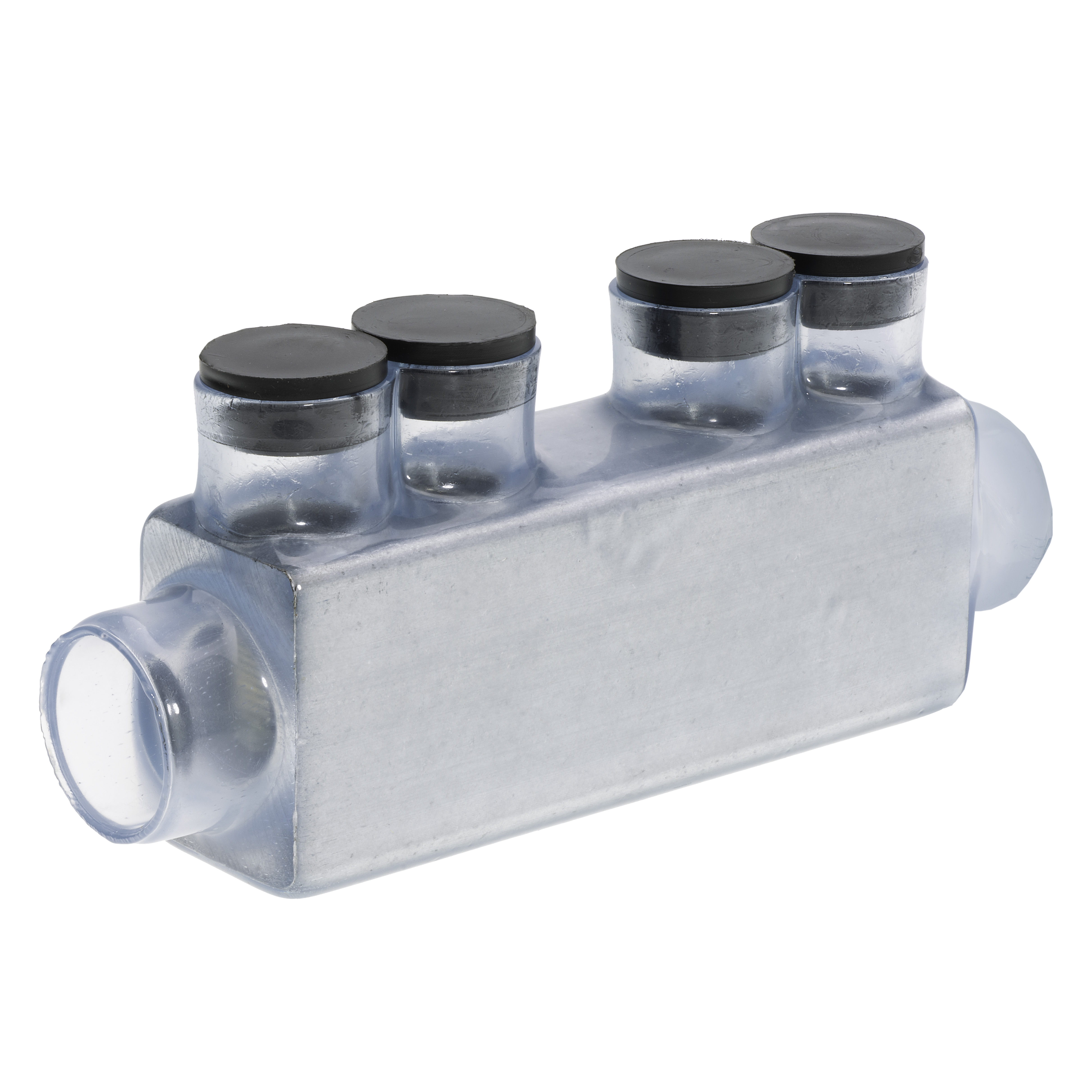

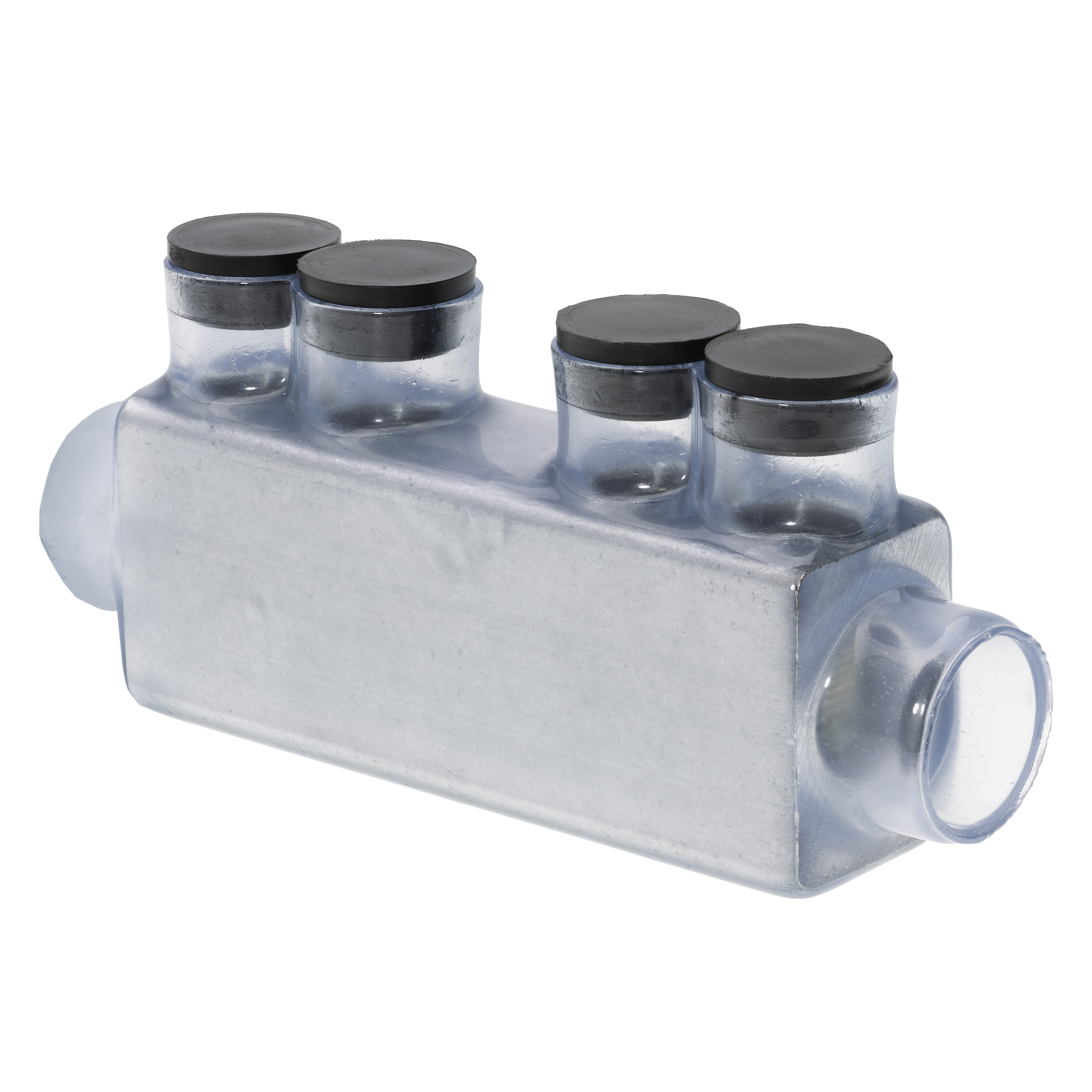

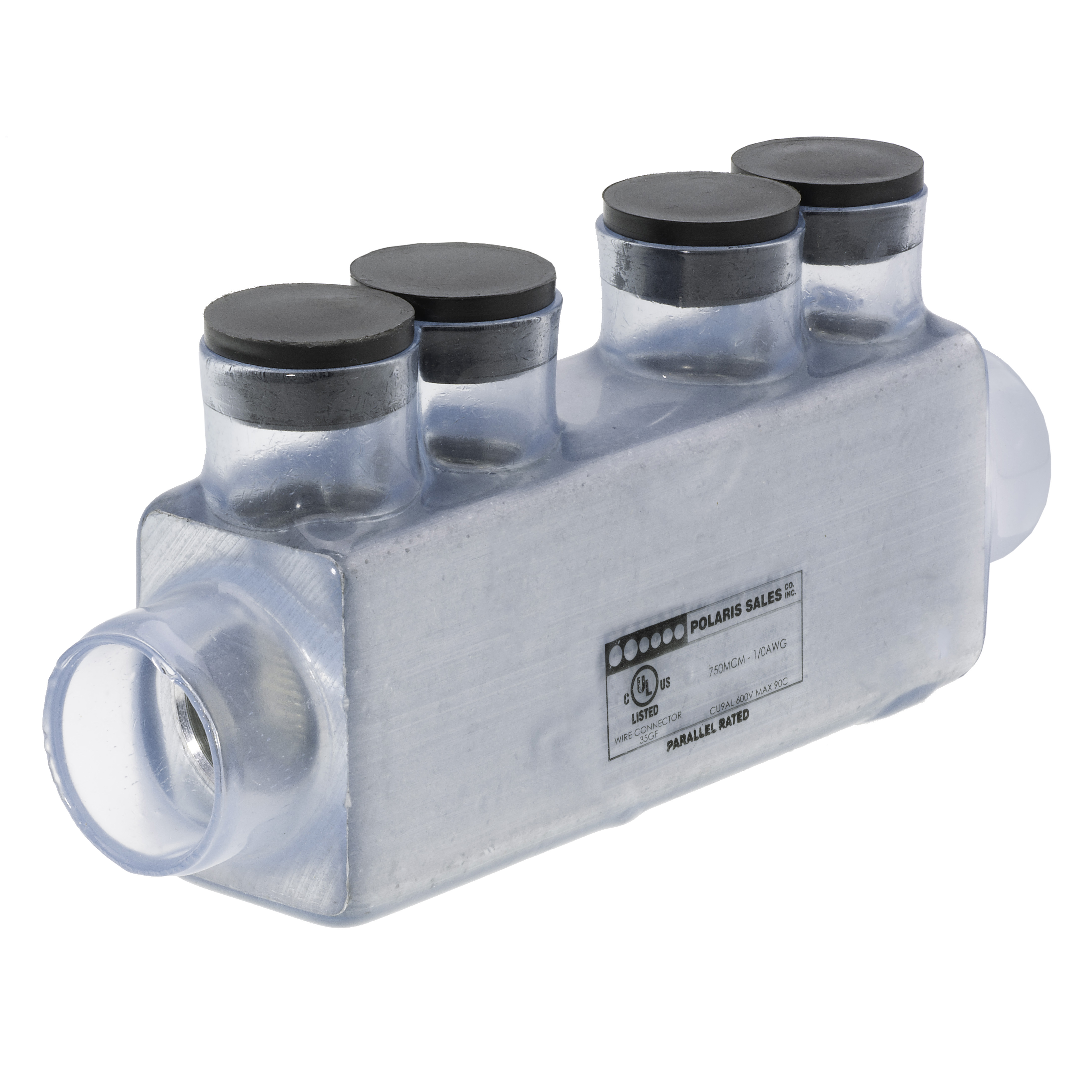

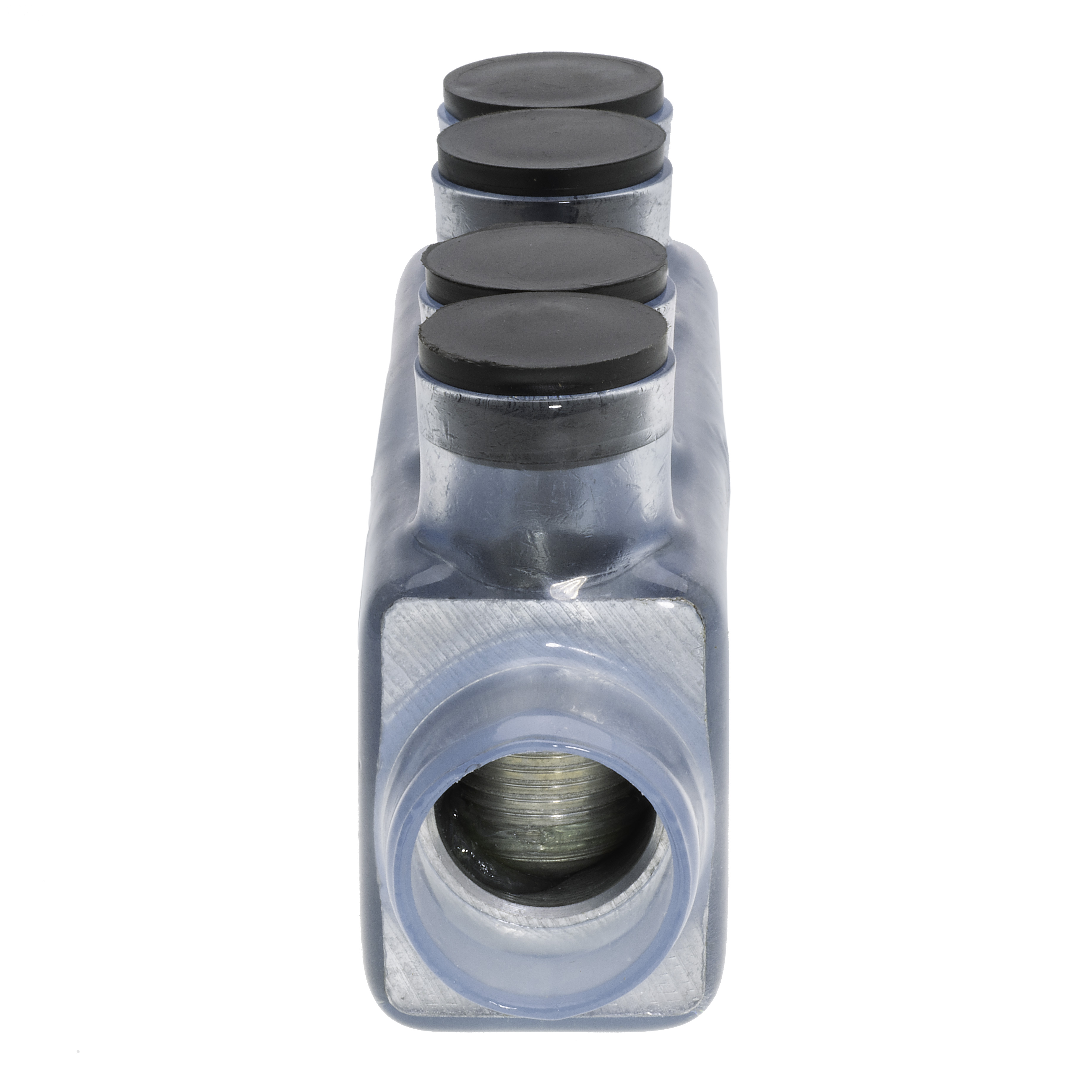

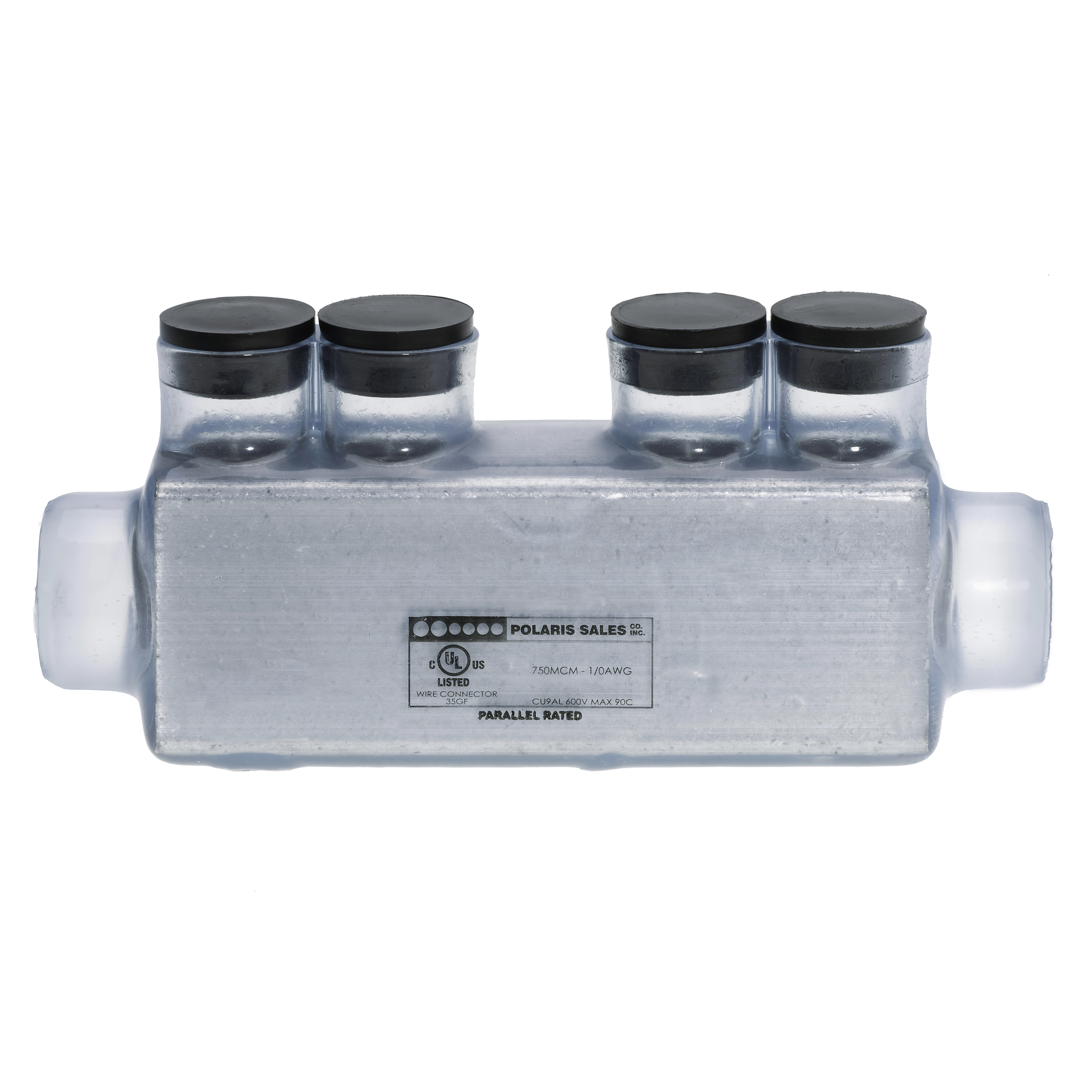

2-Port Clear Multi-Tap Pre-Insulated Connector, 750 MCM – 1/0 AWG

#ISRH-750C

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • In-Line Wire Entry: Form heavy-duty connections between 2 conductors quickly using the in-line entry ports sized for wires between 750 MCM and 1/0 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and both pairs of set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: Both in-line ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Clear
Pack Qty 2
GTIN 662381996725
UPC 662381996725
EAN 662381996725
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Wire Cable Class Class B, Class C
Al Conductor Max Amp 435
Cu Conductor Max Amp 535
Conductor Cu Size Range 750 MCM-1/0 AWG
Conductor Al Size Range 750 MCM-1/0 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 2
Hex Wrench Size 5
Env Temp Cold Temperature rated to -45C
Assortment Clear Coated Pre-Insulated Connectors
Application Splice
Max Torque 550

Resources

Documents

  • PROINSTAL_POLARIS_BLACK-VT_INSTRUCTION_SHEETS_0422_DIGITAL.pdf Download
  • LIT-POLARISBRO21_Polaris_Catalog_2021.pdf Download
  • PRODRAW_ISRC SERIES.pdf Download
