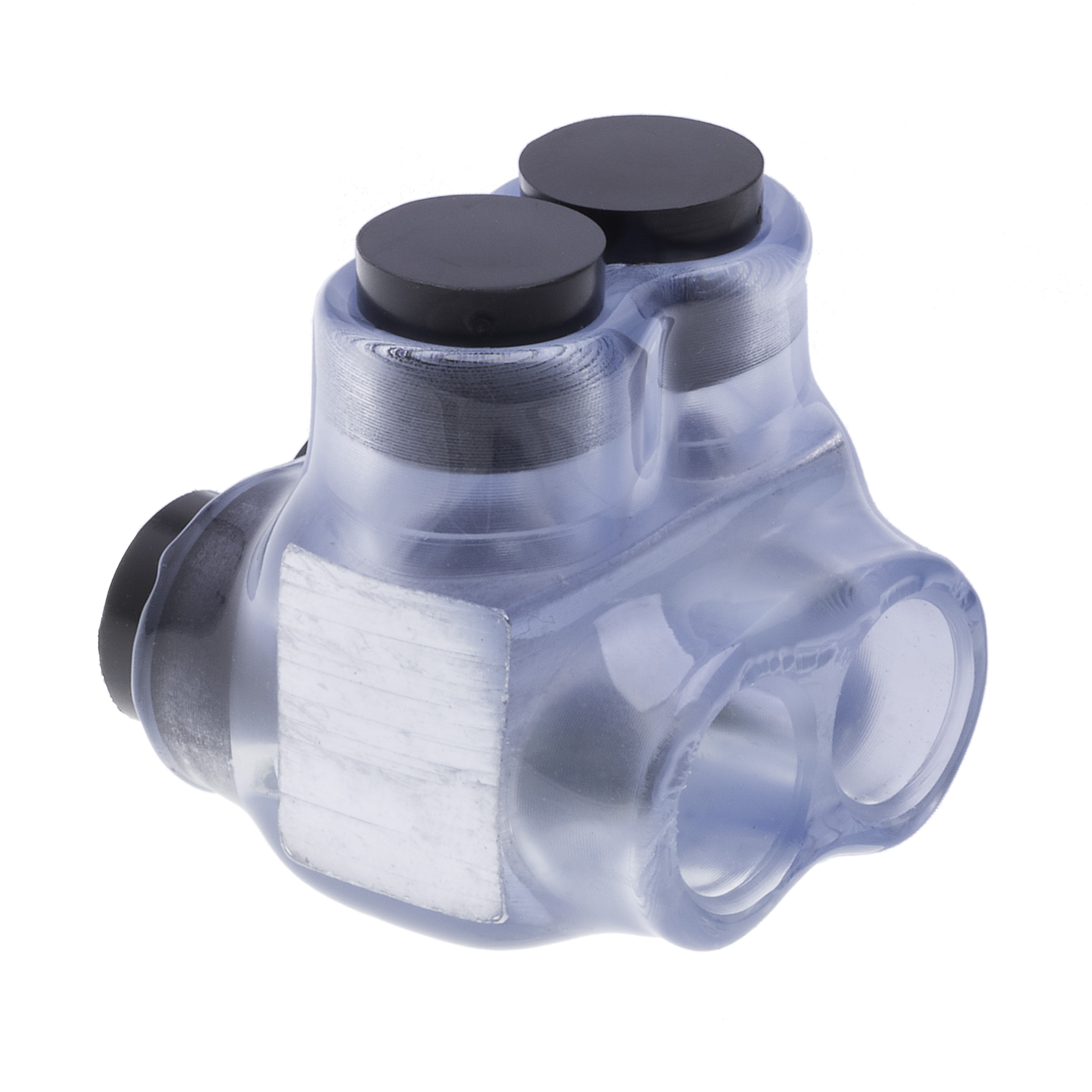

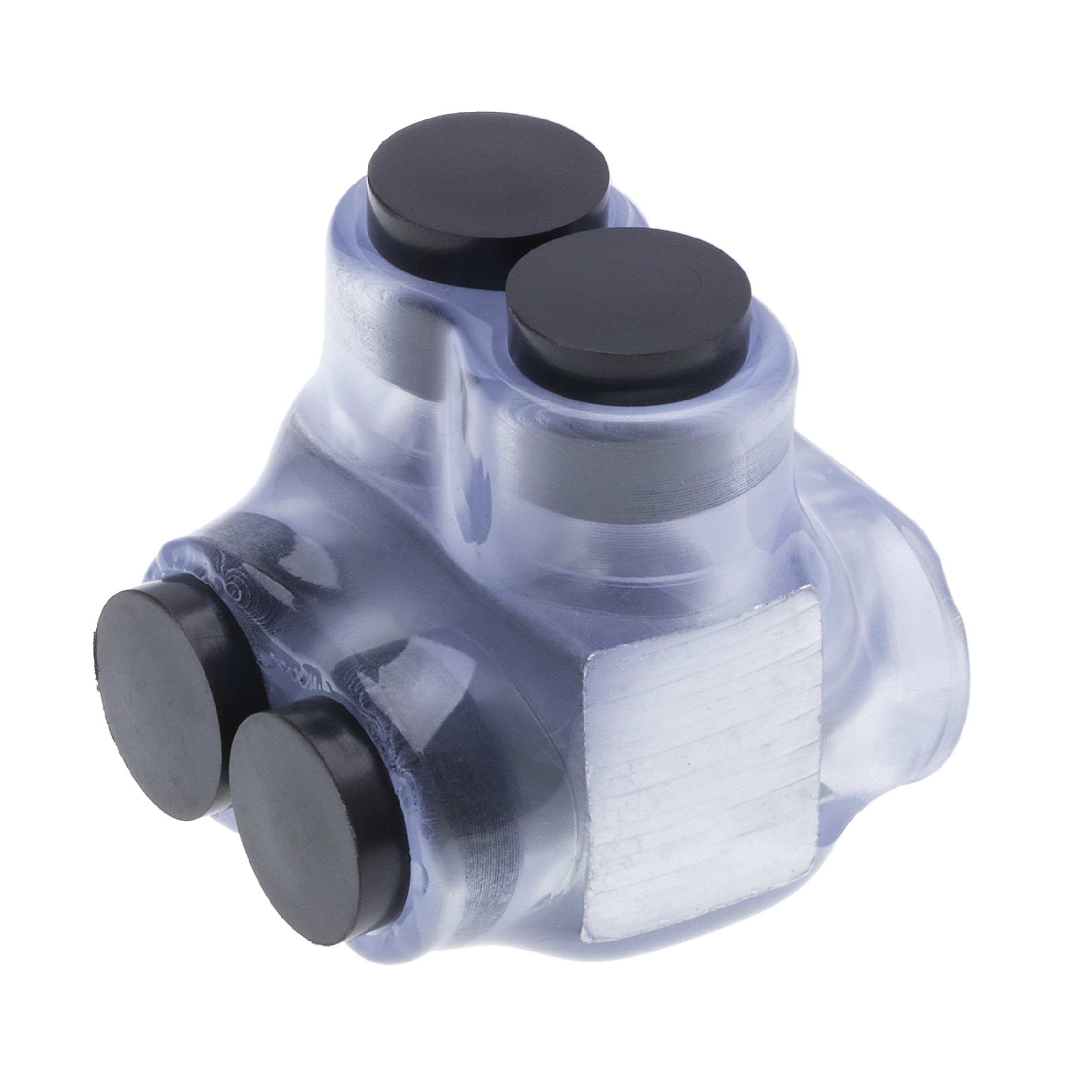

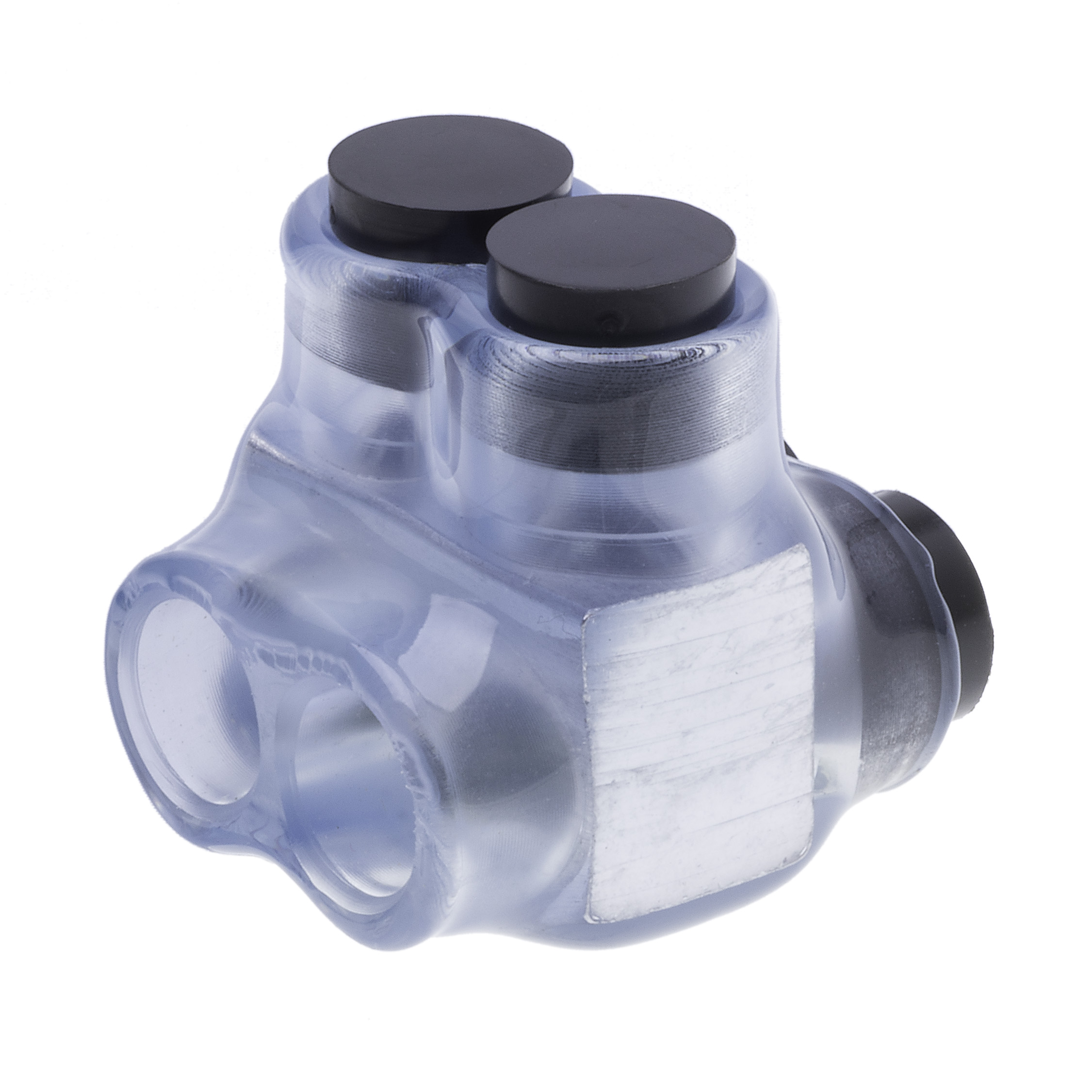

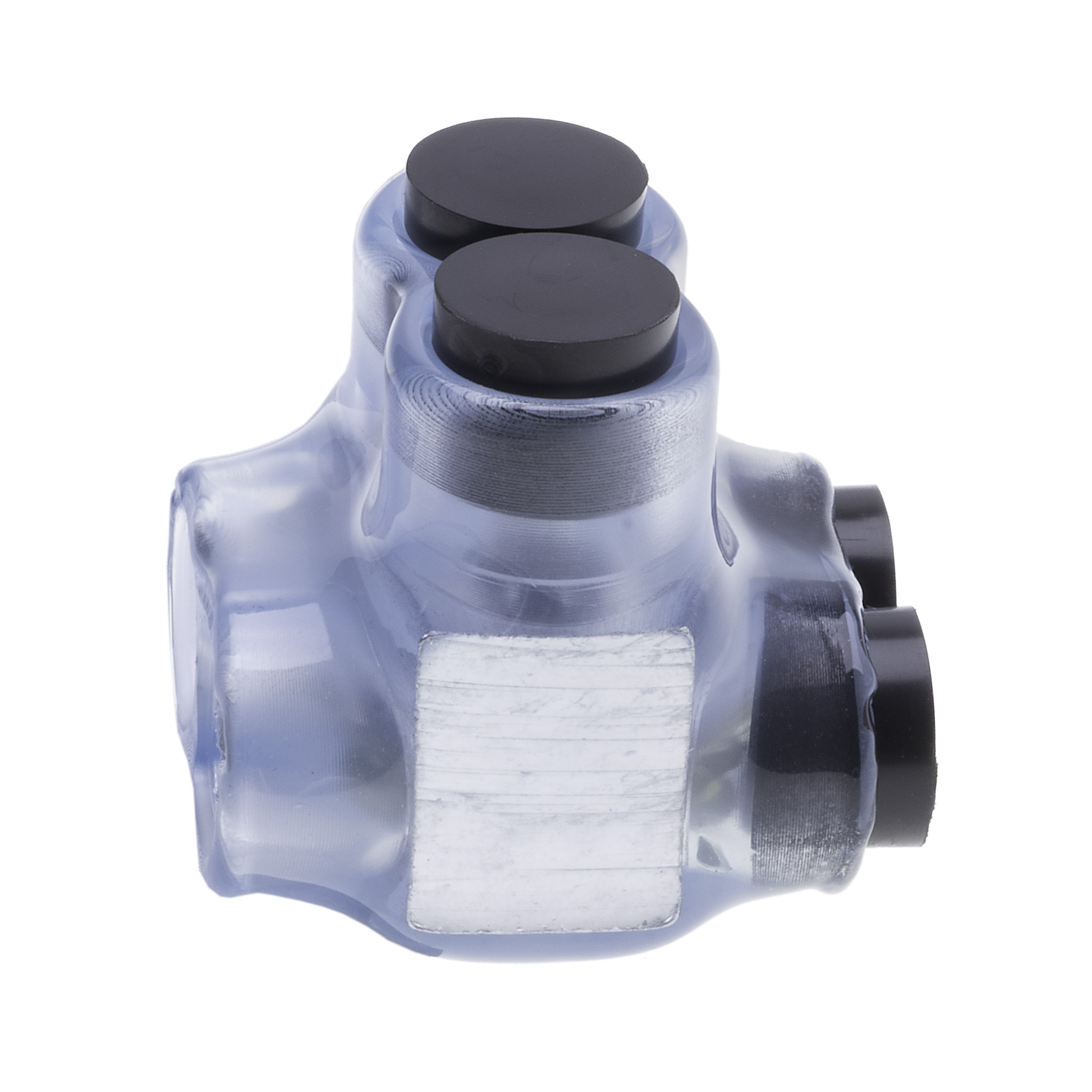

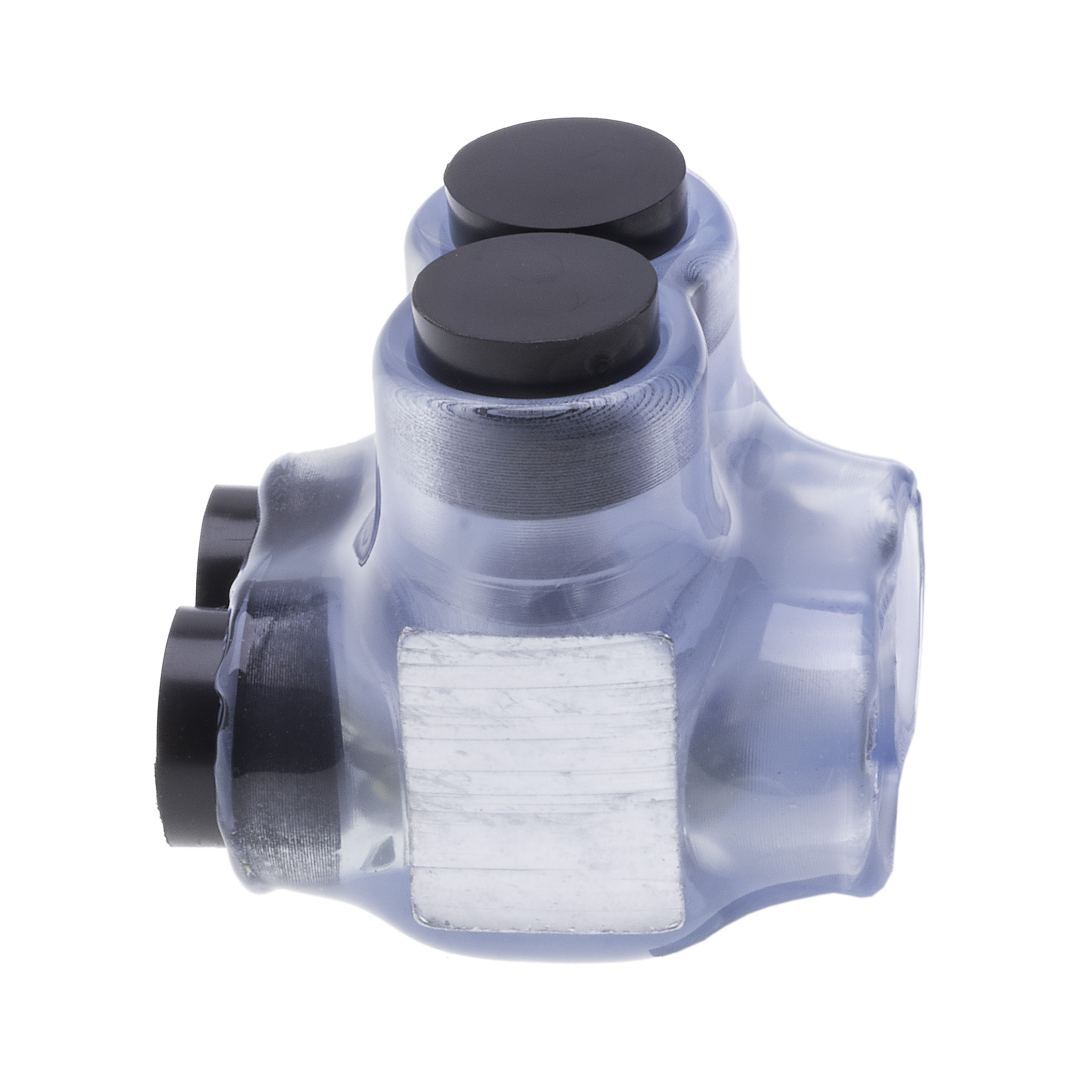

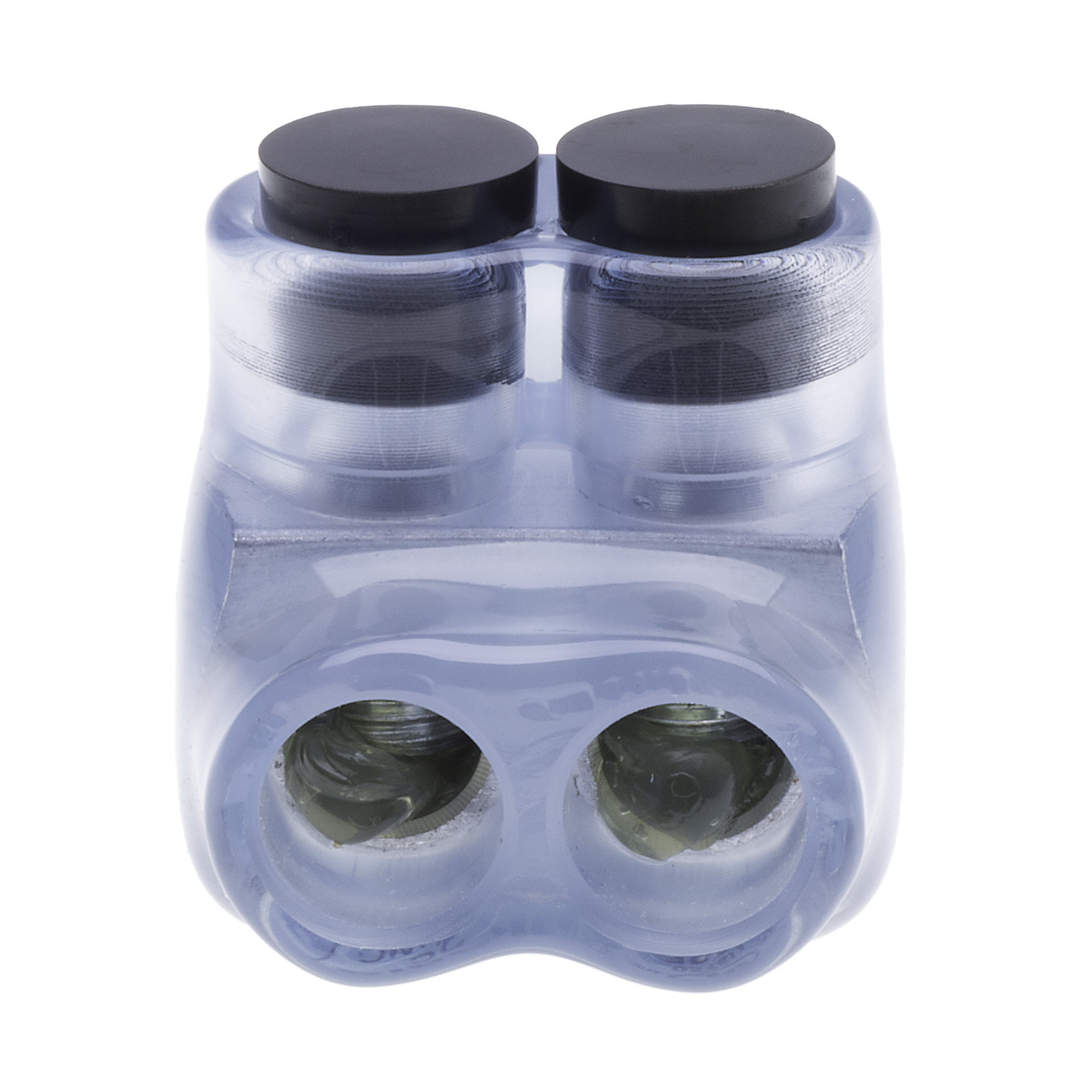

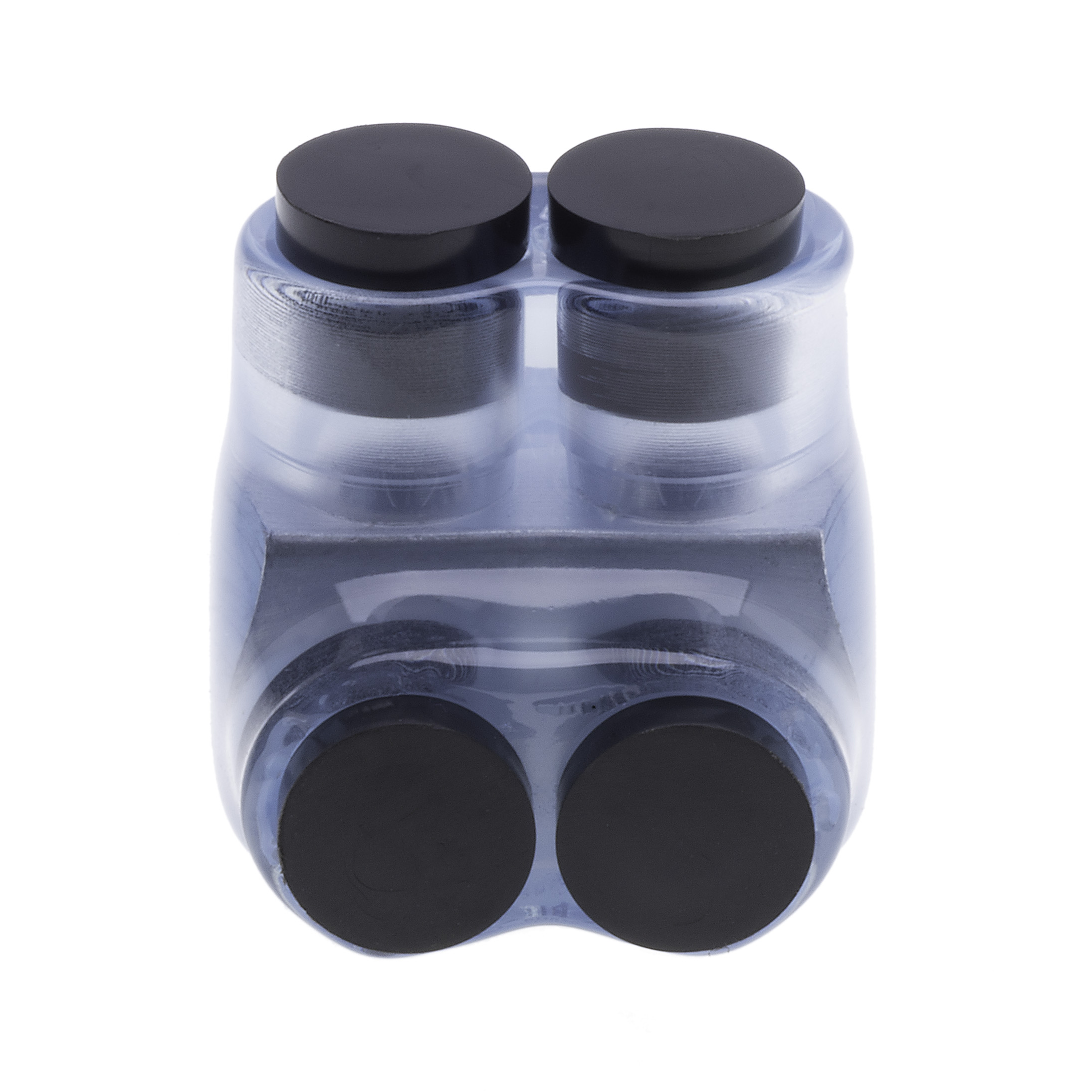

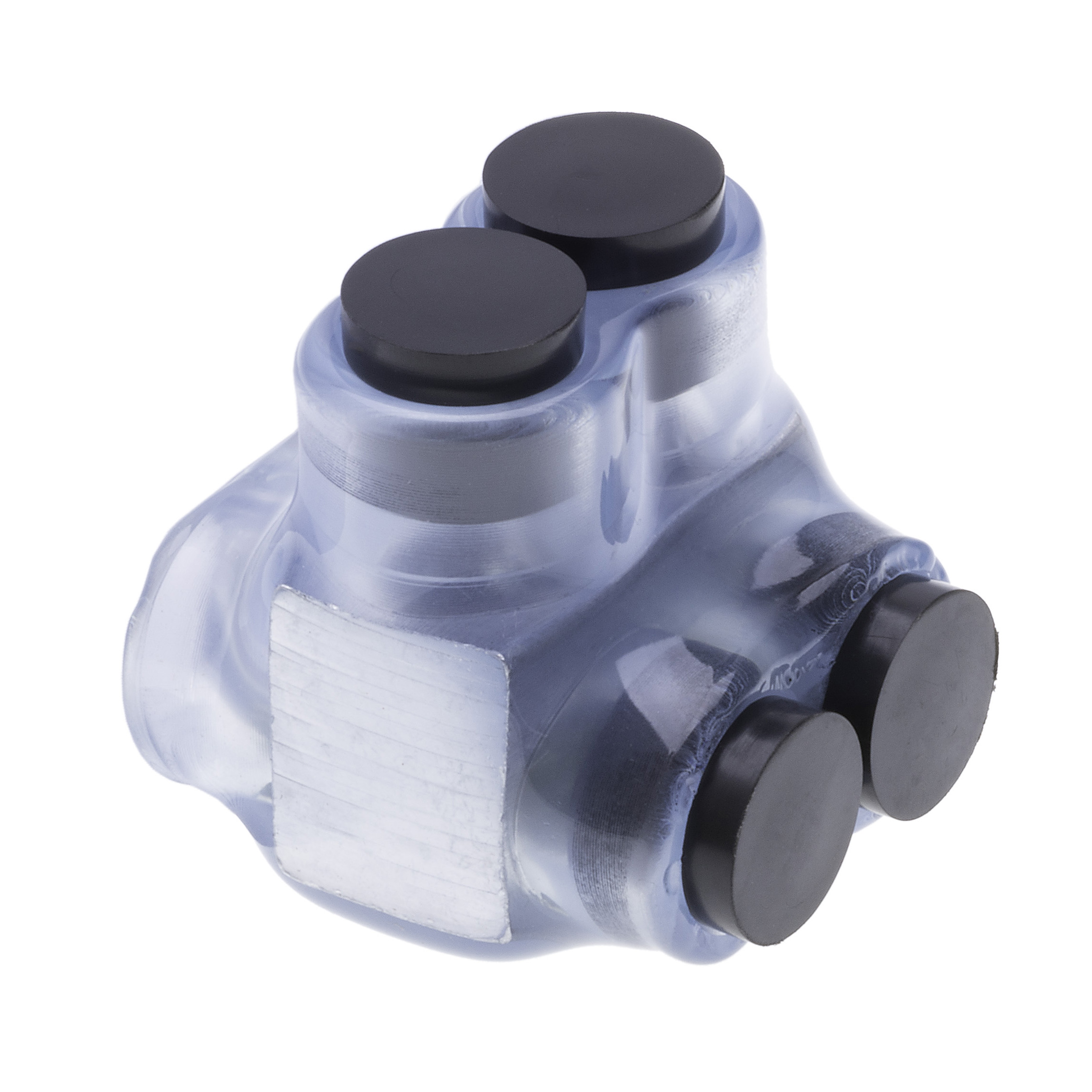

2-Port Clear Multi-Tap Pre-Insulated Connector, 2 – 14 AWG

#IT-2C

Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and chemical-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Dual-Sided Wire Entry: Form secure connections between 2 conductors quickly using the single-sided entry ports sized for wires between 2 and 14 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Pre-filled Oxide Inhibitor: Both single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance: The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
UPC 662381994363
UNSPSC 39121409
Origin Country US
Certifications cULus
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 100
Cu Conductor Max Amp 130
Conductor Cu Size Range 2 AWG – 14 AWG
Conductor Al Size Range 2 AWG – 12 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 2
Hex Wrench Size 5/32
Env Temp Cold Temperature rated to -45C
Assortment Clear Coated Pre-Insulated Connectors
Max Torque 65
