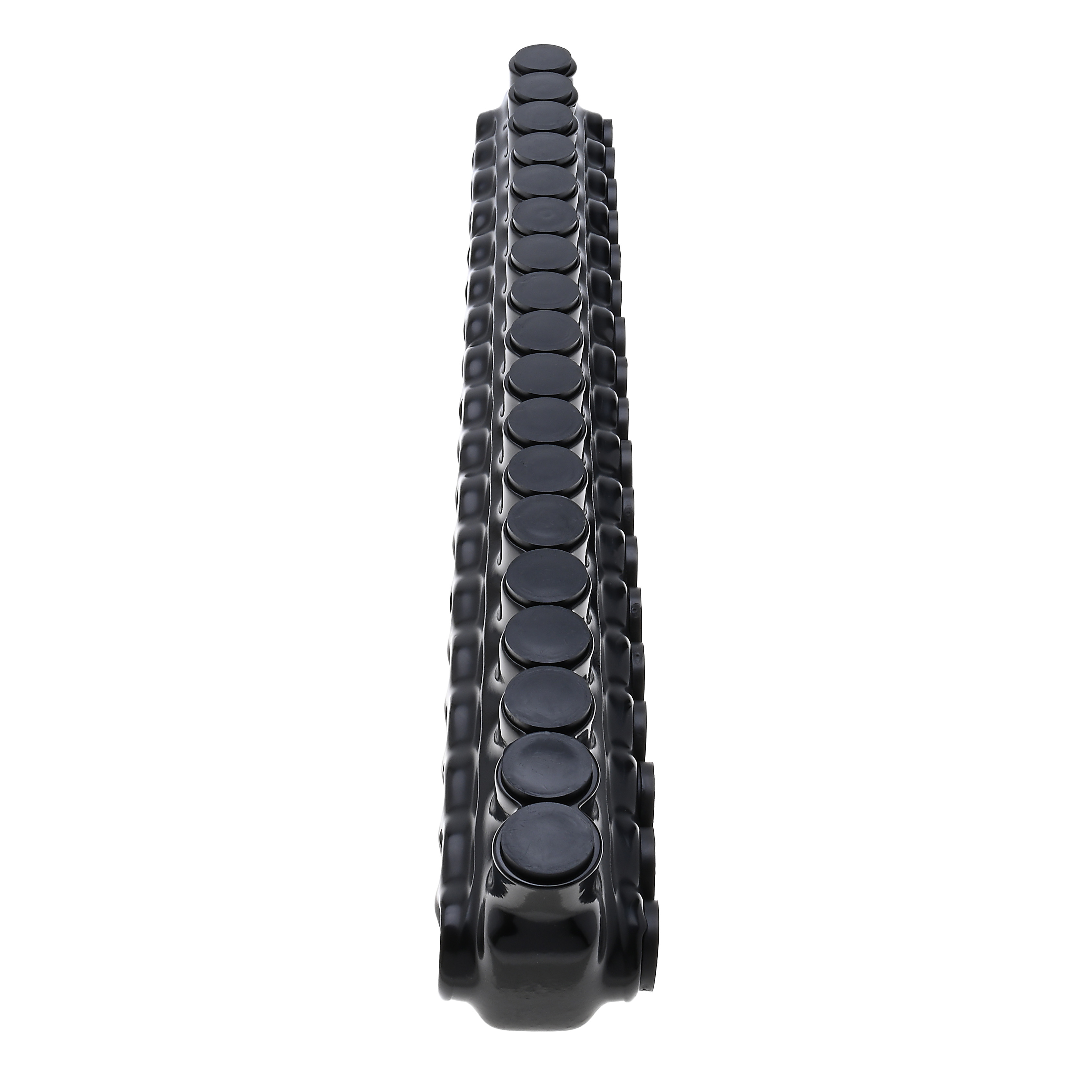

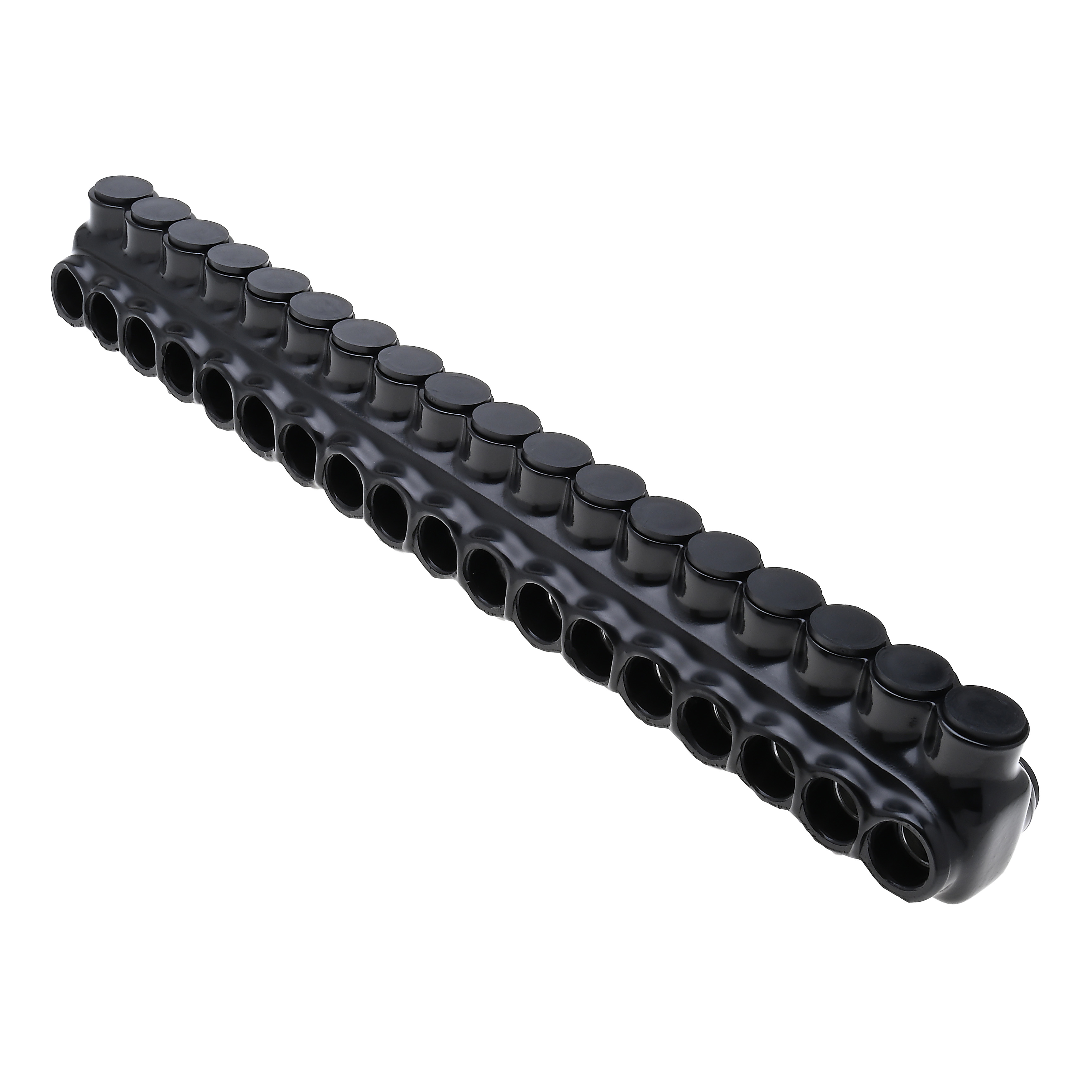

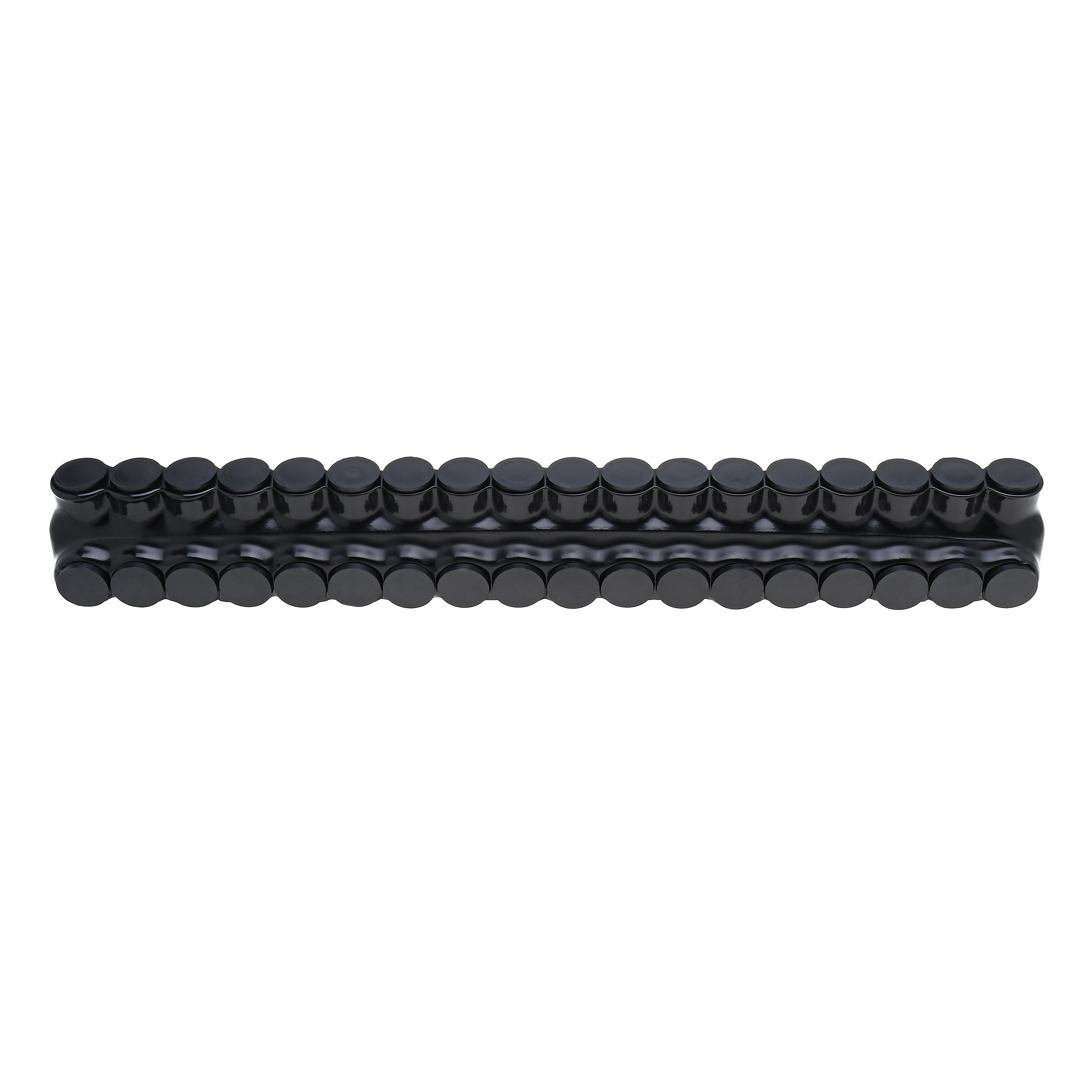

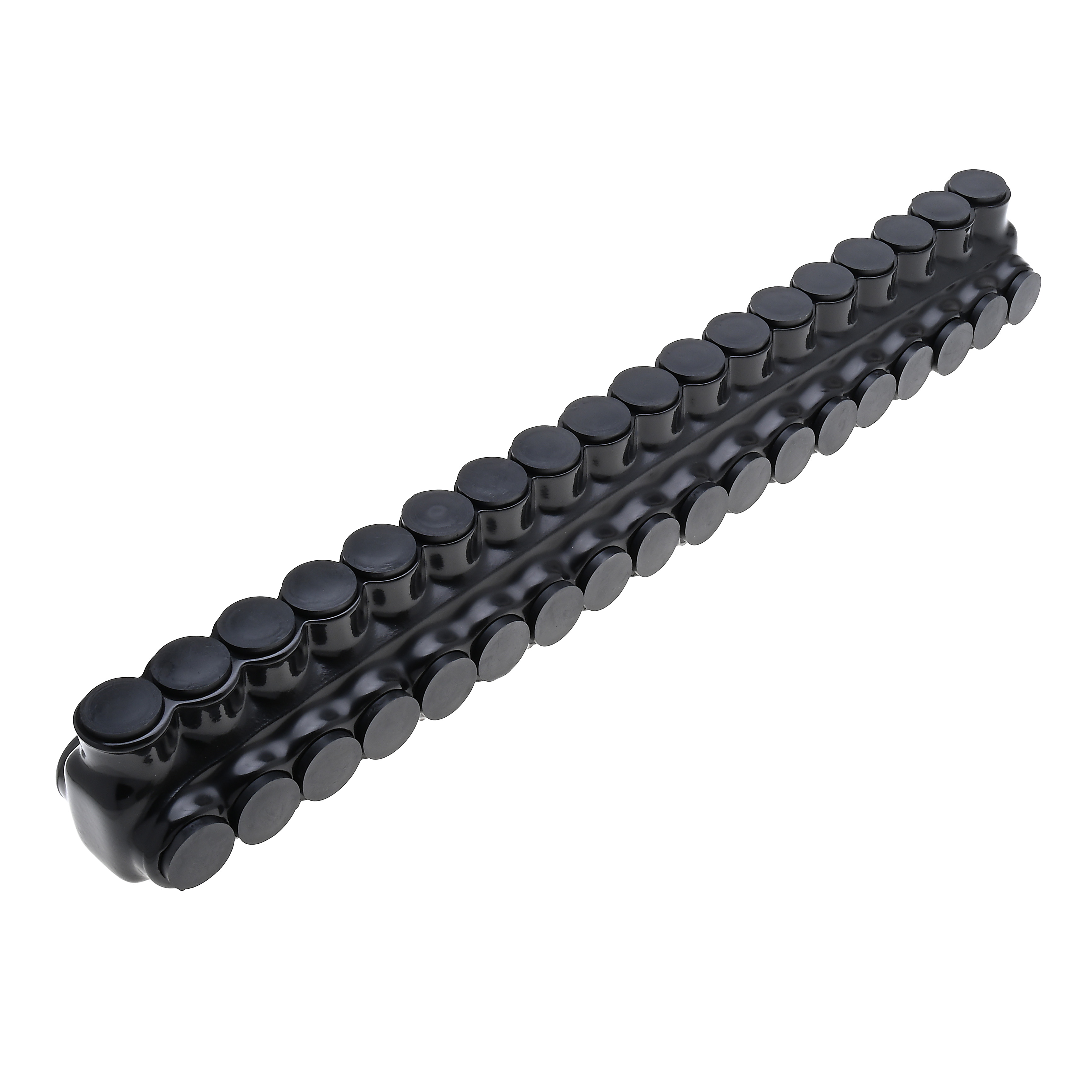

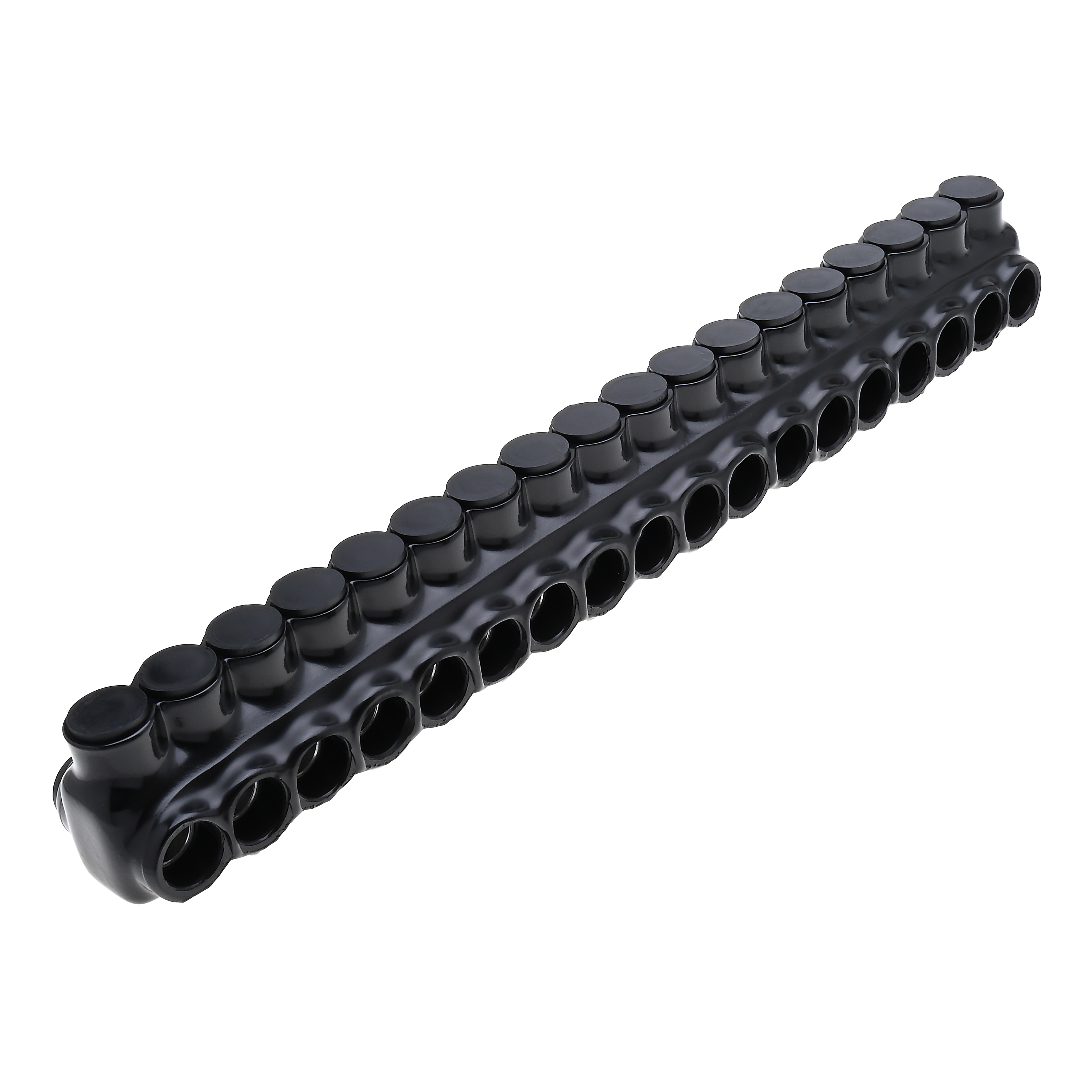

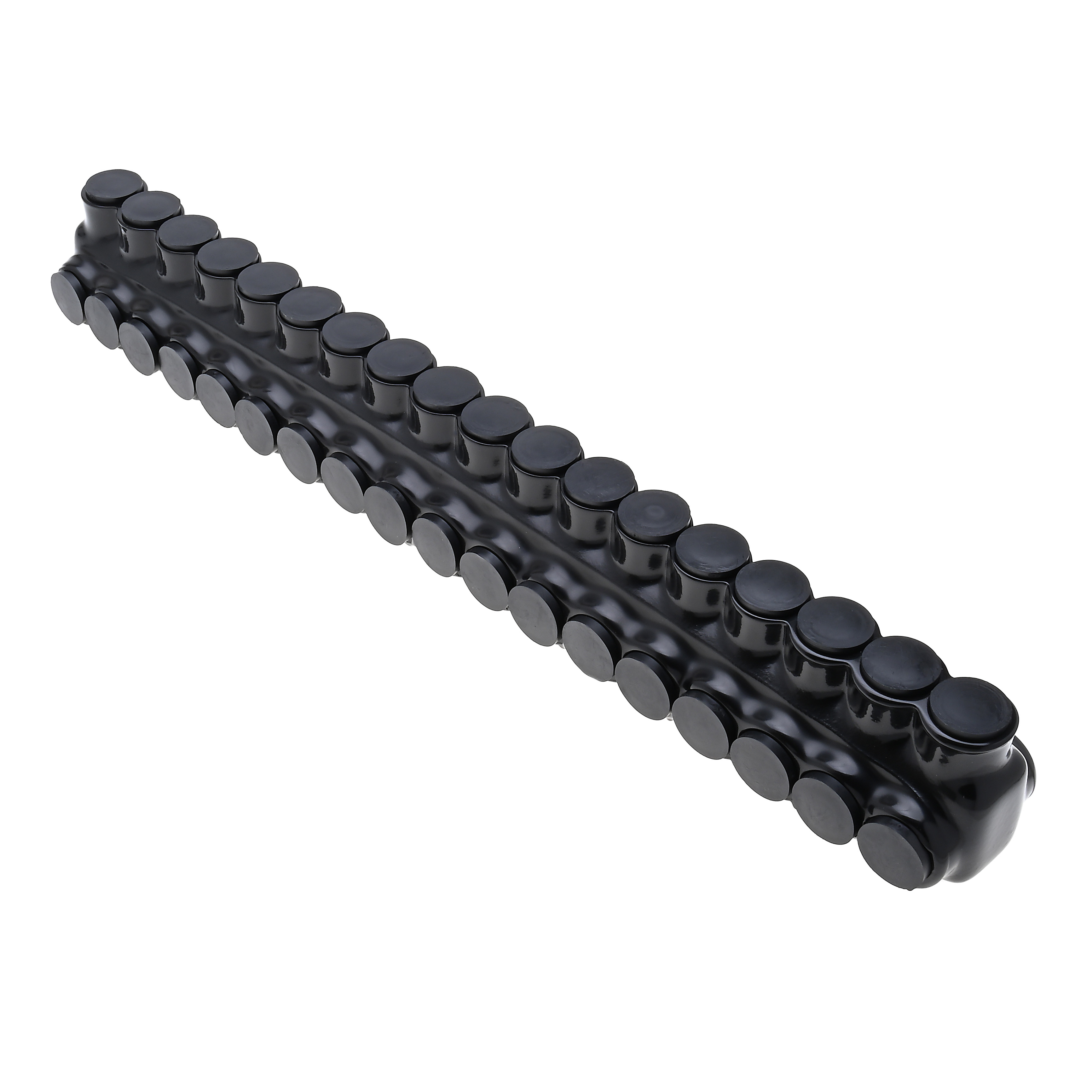

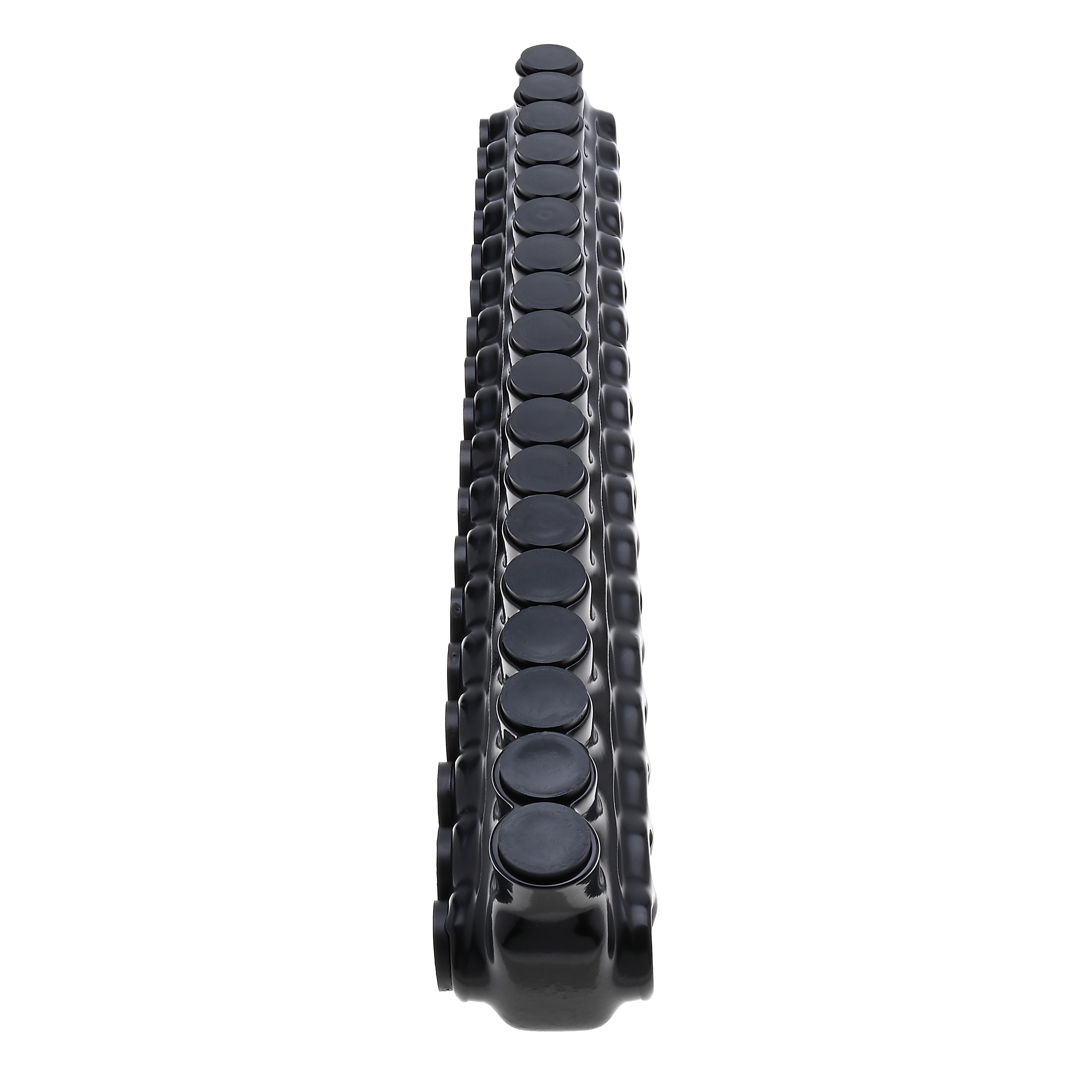

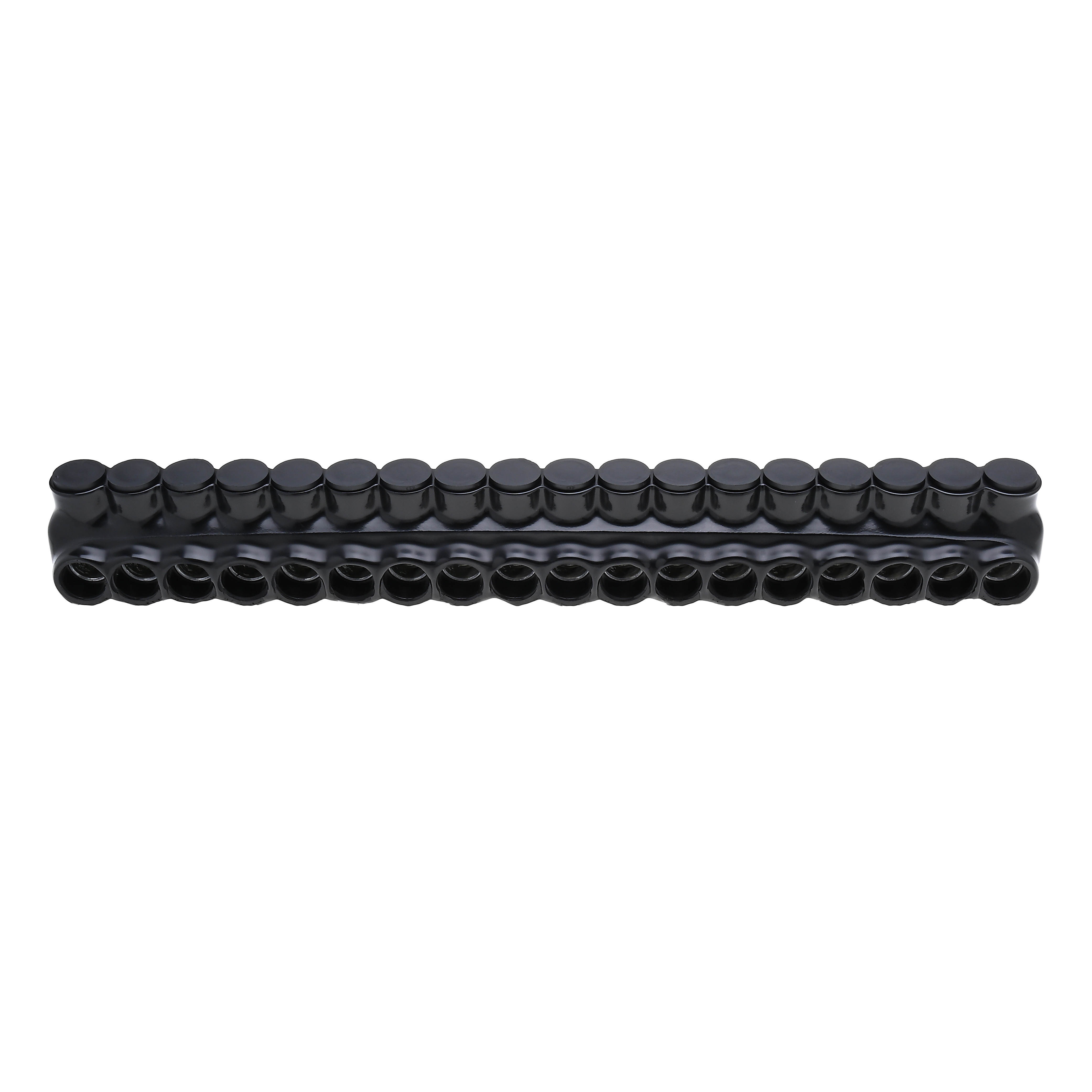

18-Port Black Multi-Tap Pre-Insulated Connector, 350 MCM – 10 AWG

#IPLD350-18

Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • Dual-Sided Wire Entry: Form secure connections between 18 conductors quickly using the double-side entry ports sized for wires between 350 MCM and 10 AWG. . Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: All 18 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Parallel Rated: This connector is specifically designed and rated for parallel installation, providing a safe and secure way to handle larger projects

Product Information

Voltage Rating 600 V
Material Aluminum
Finish Plastisol Insulated
Color Black
Pack Qty 1
GTIN 662381369253
UPC 662381369253
EAN 662381369253
UNSPSC 39121409
Certifications cULus, Meets NEC 230.46 Suitable for Line Side of Service
Ul Standard UL 486A/B
Ul File No E186991
Wire Cable Class Class B, Class C
Al Conductor Max Amp 1028 (Based on 8 ports) ++ See Note
Cu Conductor Max Amp 1314 (Based on 8 ports) ++ See Note
Conductor Cu Size Range 350 MCM – 10 AWG
Conductor Al Size Range 350 MCM – 10 AWG
Conductor Type Copper, Aluminum
Temp Rating 90C, AL9CU
Conductors Count 18
Hex Wrench Size 5/16
Env Temp Cold Temperature rated to -45C
Assortment Black UV Coated Pre-Insulated Connectors
Max Torque 400
